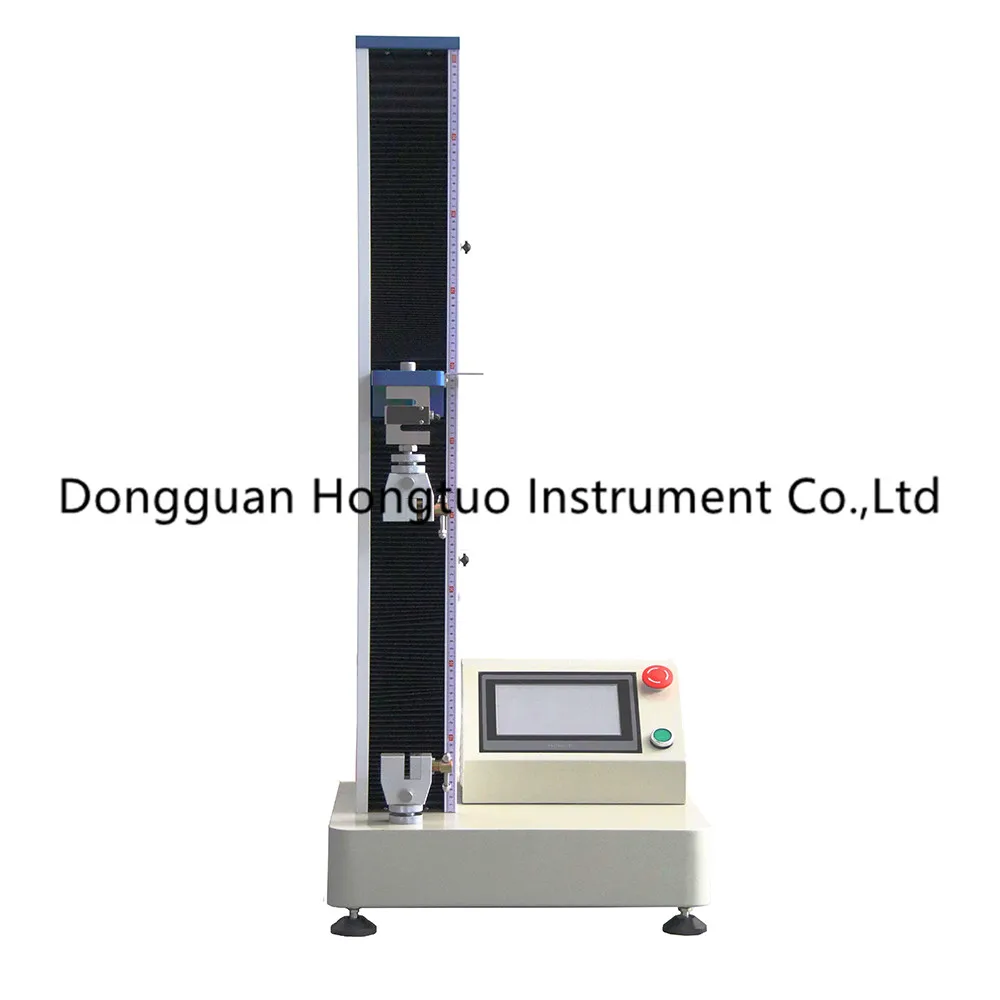

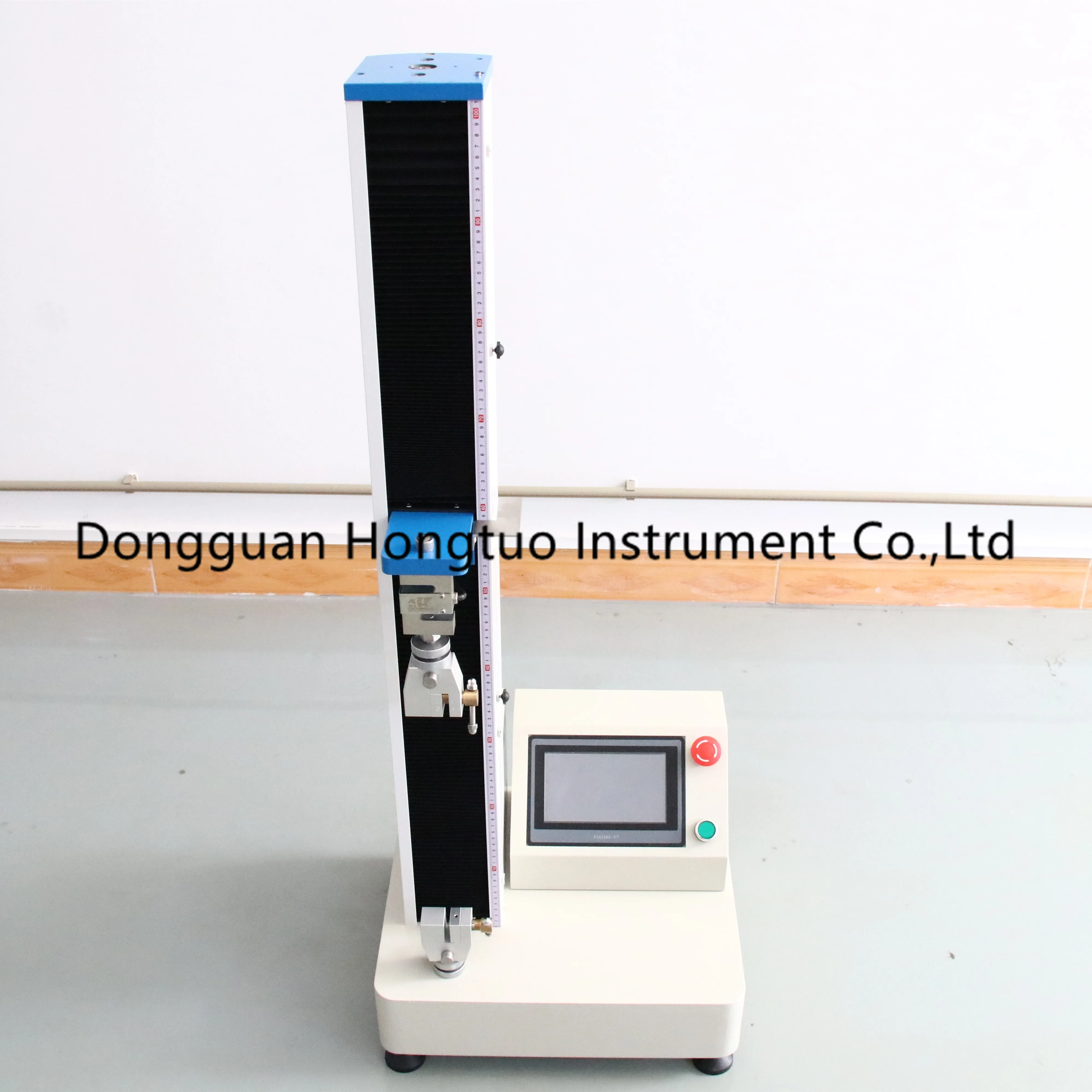

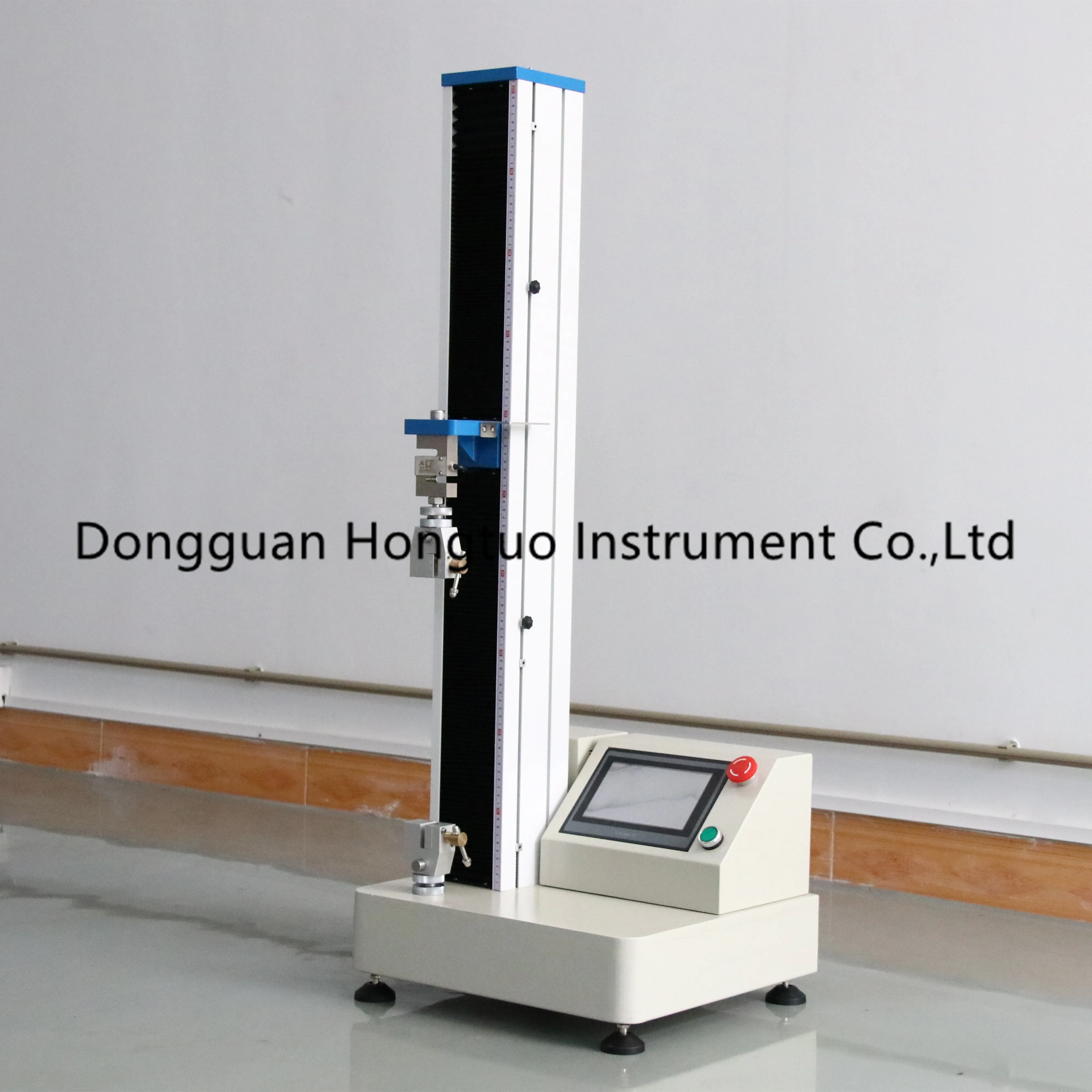

WDW-5S универсальный тестер на растяжение для тестирования пластика универсальная

》Plastic

》Film

》Fiber and thin wire

》Adhesive

》Foam material
》Tape

》Elastomer

》Connector

》Biomaterials

》Wood and paper products

》Metal foil

》Metallic line

》Below medium strength metal

》Oil bearing
》Ceramic

》Part

》Fastener

》Composite material

u Meet most of the mechanical properties test

u Completely compact structure, high rigidity design, durable

u Easy to operate, anyone can operate

u High accuracy, certified by a third-party testing agency

u High speed, low vibration, low noise motor drive

u Multilingual application function, adapt to different countries’ using

u Capabilities with graph, data sheet, report viewing and printing

u Automatic returning function after test completed

u Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc.

u Has a variety of curve modes such as stress-strain, force-displacement, force-time, intensity-time

u Has test mode functions such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc.

u With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload protection; software overload limit protection; breakpoint shutdown protection and other multiple protection devices

u Optional: small deformation metal extensometer, large deformation displacement tracker

Brand

HongTuo

Model

WDW-S

-005

-01

-02

-05

-1

-2

-5

-10

Capacity

KN

0.05kN

0.1 kN

0.2 kN

0.5kN

1 kN

2kN

5kN

10KN

KG

5kg

10kg

20kg

50kg

100kg

200kg

500kg

1000kg

lb

Structure

Double rail structure

Three double rail structure

Unit switching

G、Kg、lb、N、KN

Displacement unit switching

Inch  cm   mm

Test machine level

1class

Effective force range

0.4％～100％FS

Force accuracy

Within ±0.5%

Force decomposition

1/200 000

Force Power magnification

X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting

Displacement resolution

0.05mm

Displacement accuracy

Within ±1%

Deformation measurement range

2%～100%FS

Deformation indication accuracy

Within ±1%

Large deformation measurement range

(0～800)mm

Large deformation resolution

0.05mm

Large deformation indication error limit

Within ±1%

Maximum test speed

500mm/min；optional maximum 1000mm/min

Minimum test speed

0.1mm/min

Speed accuracy

Within ±1%

Beam travel

Measuring height

standard

No grip testing stroke：920mm；With grip testing stroke：320mm

optional

No grip testing stroke：1320mm；With grip testing stroke：320mm

Fixture configuration

One set of tensile grip；can choose other grips

Returning method

Manual or automatic selection, automatically return after the test ends or manually return to the initial position

Stop method

1.Maximum break value automatically stop     2.Upper and lower limit safety setting stop

Safety devices

1.Mechanical limit switch protection     2.Emergency stop switch emergency brake

Overload  protection

Over 10% of maximum load, automatic machine protection

Accessories

1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificate

Optional accessories

 Anti-splash device (protective door); printer

Powder supply

220V.AC/ 50HZ; 110V.AC/60HZ

Main host size/ weight

Standard model:Length*Width*Height:450mm*400mm*1160mm / Around 50KG

Heightening model:Length*Width*Height:450mm*400mm*1550mm / Around 55KG

Packing size / weight

Standard model:Length*Width*Height:550mm*500mm*1400mm / Around 73KG

Heightening model:Length*Width*Height:550mm*500mm*1800mm / Around 78KG
