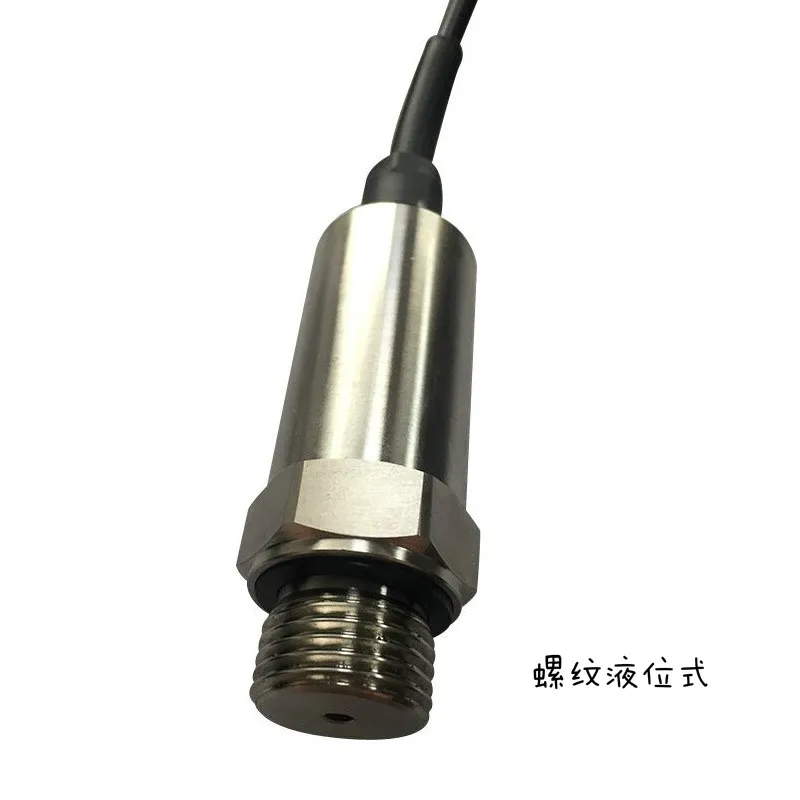

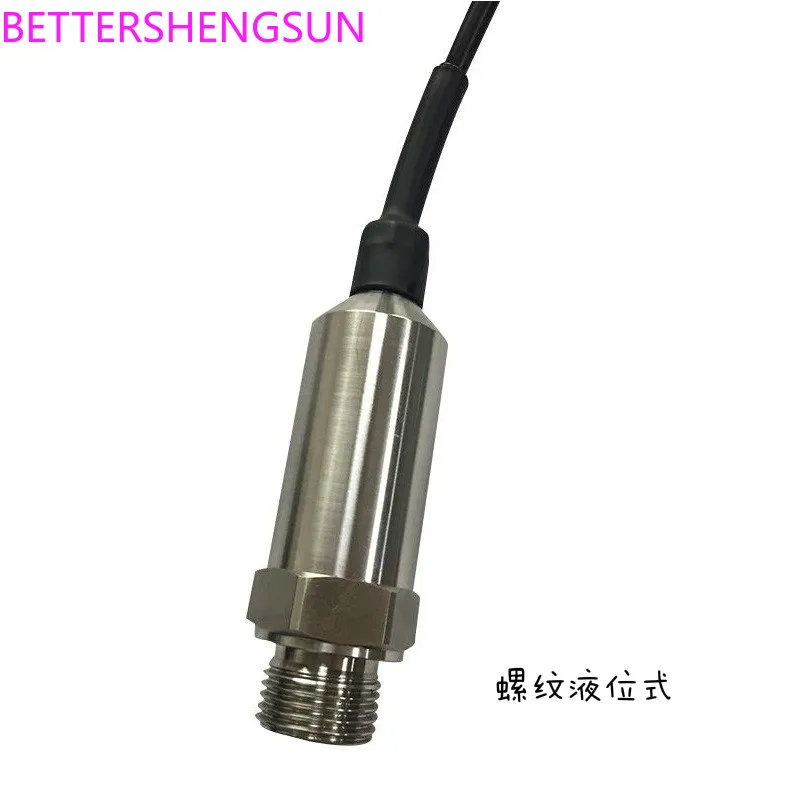

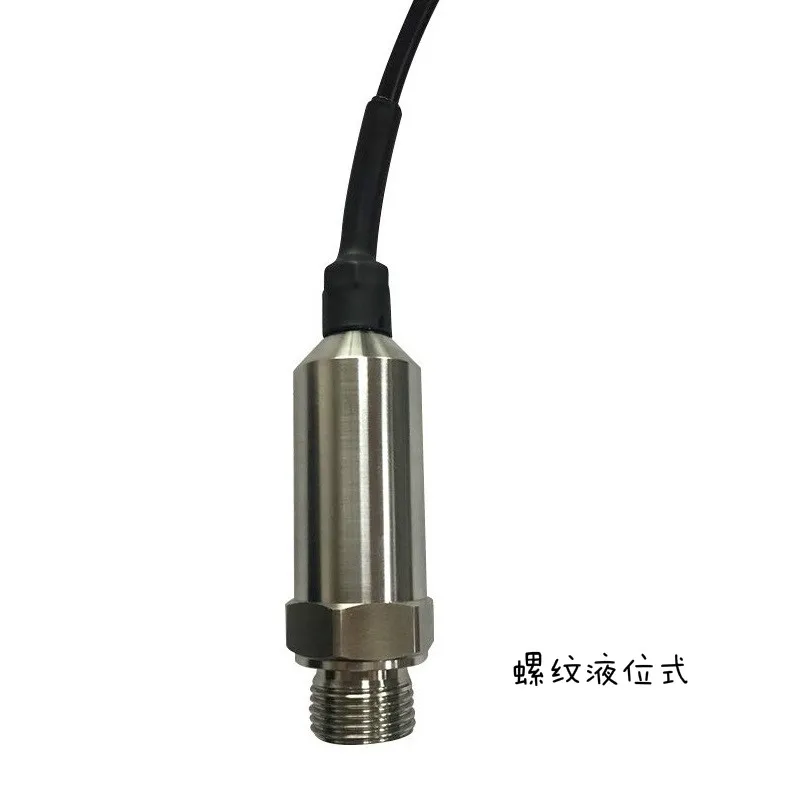

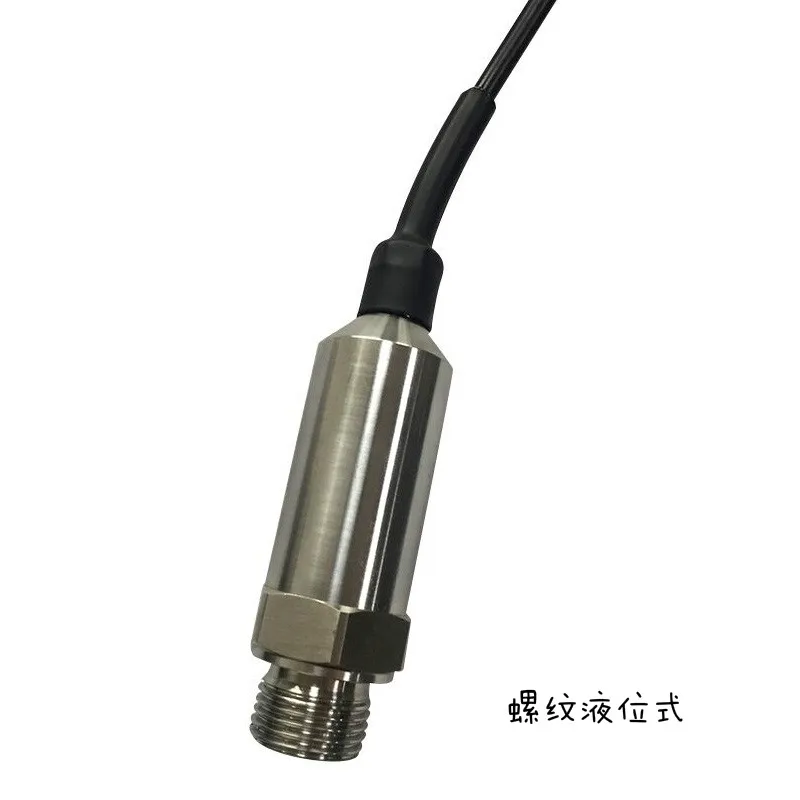

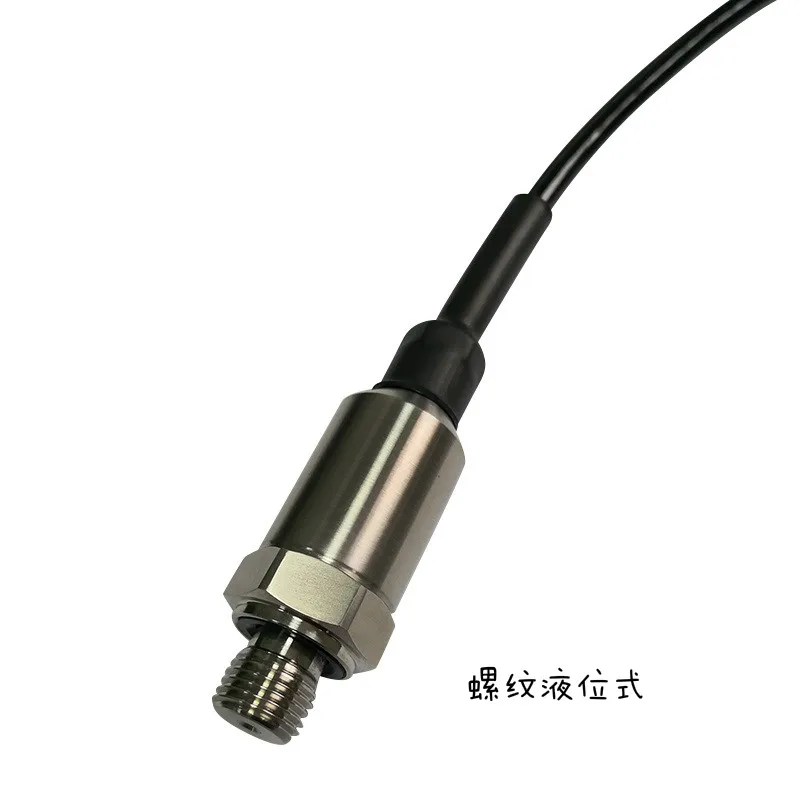

TheThe Series of Products Are All Stainless Steel Structure, Using High-Precision Pressure Core and PrecisionThe Compensation Technology of Has Strong Seismic Resistance.

Impact Resistance and Long-term Stability, SafeConvenient Installation, Wide Measuring Range and Other Characteristics, with Different Thread Interfaces and Signal Output at the Same Time

andChoose to Show "Watch Header on Site to Meet the Needs of Customers.

Compact Structure, Convenient Installation and Overvoltage Protection

High Precision, Good Stability, Fast Response Speed and Long-term Stability

The Application of on-Site/ Applicable Field

Mainly Used inIndustrial Equipment, Constant Pressure Water Supply, Medical Equipment, Process Control and Other Fields

Performance Parameters/ Performance Parameter

Pressure Range:-0.1 ~ 600MPa Optional

Accuracy Class:0.5% FS (Standard), 0.25% FS (High Precision)

Current Signal: 4-20mA

The Communication Protocol:RS485,RS232

Voltage Signal: 0-10V, 0-5V, 0.5-4.5V, 1-5V

MV Signal:1mV/V,1.5mV/V,2mV/V

Supply Voltage:+ 24VDC, + 12VDC, + 5vdc, 9-36vdc; MV Signal + 10vdc (5-12vdc)

The Process of Link:G1/4,R1/4,G1/8,G1/2,1/2NPT,1/4NPT,M14*1.5,M20*1.5,M10*1,M12*1.5,M12*1,G3/4

Electrical Connection:Din Hessmann, Aviation Plug, Gran Waterproof,M12 * 1 Quad Aerial Linker

Load Capacity:Current Type≤500Ω

Compensated Temperatures:0-80°C

Operating Temperature:-20-120°C

Safety Overload Capacity: 150%

Ultimate Overload Capacity: 200%

Temperature Drift: 0.02% FS/℃

Long-term Stability: 0.2% FS/Year

Precautions for Product Installation and Use/Matters needing attention

1. Power on the Transmitter for 10 Minutes before Measurement to Check Whether It Is Normal. If There Is Any Abnormal Situation, Please Immediately Cut off the Power and Inform the Factory to Handle It. Do Not Disassemble It Yourself.

2. Wiring They Are Not Strictly According to the Specification Requirements Wiring, It Is Strictly Prohibited to the Wrong.

3. Do Not Put Hard Foreign Matter into the Pressure Chamber of the Transmitter. Do Not Use Hard Objects to Touch the Diaphragm When Using the Keyboard Cover Diaphragm Series Products, Otherwise It Will Cause the Product

Completely Damaged.

4. Din Husman Outlet and Aluminum Shell Explosion-Proof Products Can Be Selected with on-Site Display "Watch Header, Conventional Products Can Not Be Used to Measure Corrosion Medium, Anti-Corrosion Requirements, All

It Needs to Be Specially Put Forward When Ordering.

5. When Installing the Product, Check Whether the Size of the Thread Connector on the Site Is the Same as That of the Product. When Installing Or Disassembling, You Can Only Use a Wrench to Screw the Hexagon of the Product, and It Is Strictly Prohibited to Screw and Transfer It.

The ShellAnd Lead Joint Parts, Otherwise the Product Will Be Completely Damaged.

6. The Product Shall Be Guaranteed for 1 Year from the Date of Delivery. except for Any Quality Problems Caused by Human Reasons, Improper Use Or Uncontrollable Factors, the Product Shall Be Repaired Or Replaced Free of Charge.
