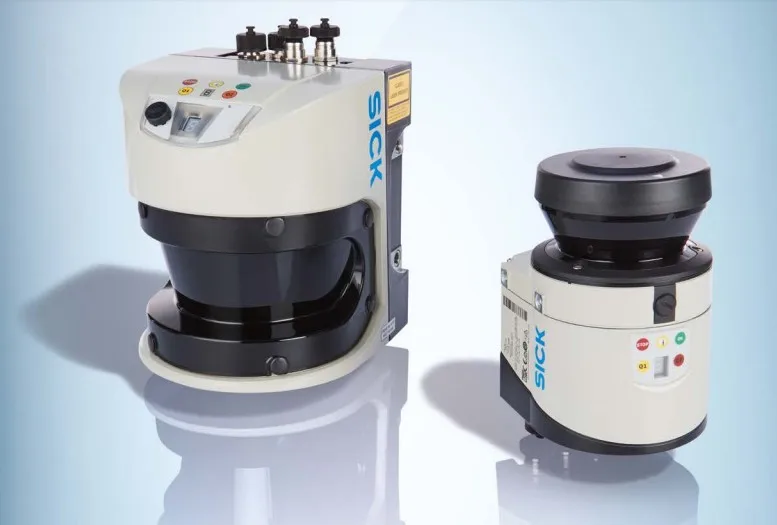

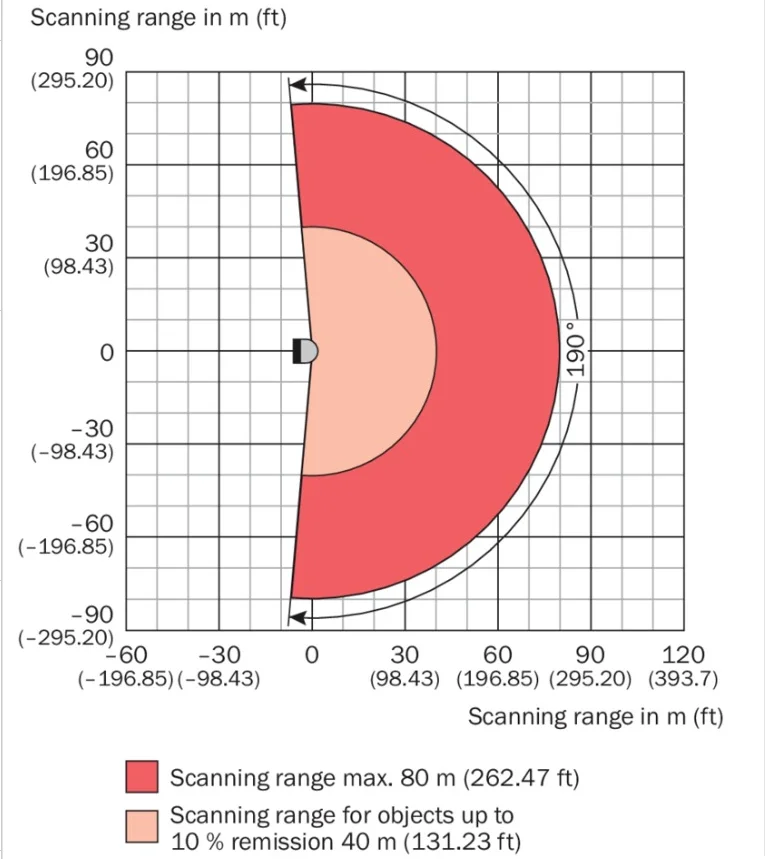

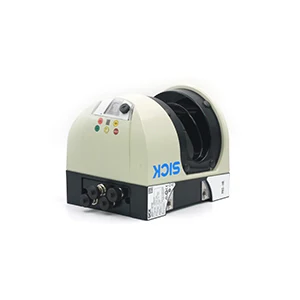

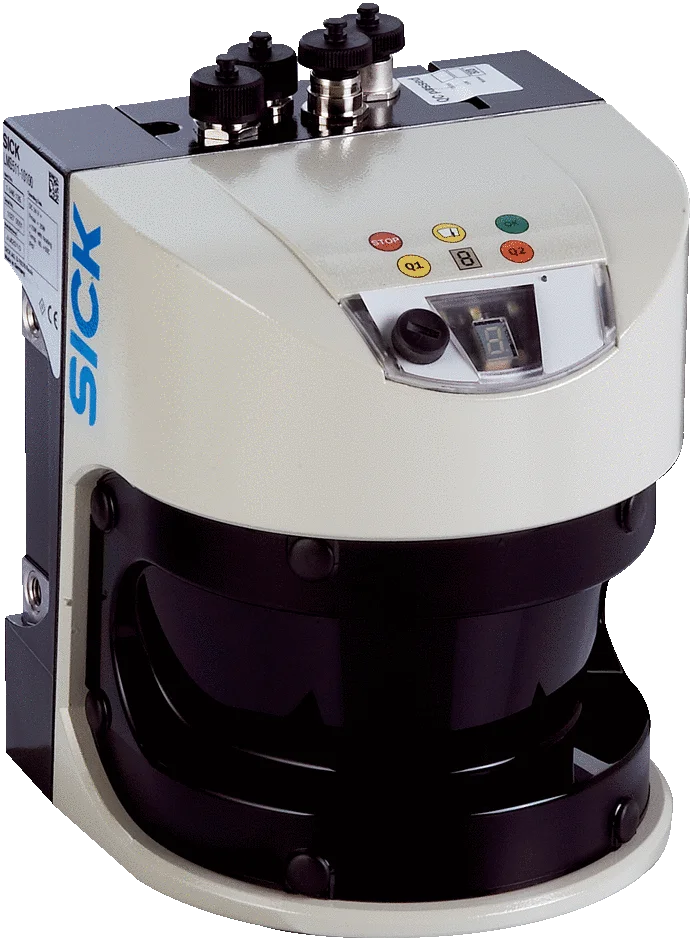

Product description: LMS511 is SICK's new high-performance outdoor laser scanner, which is mainly used for outdoor object measurement and collision avoidance. LMS511 adopts mature laser-time flight principle and multiple echo technology, non-contact detection, is an ideal product for outdoor collision avoidance, area protection and harsh environment measurement. There are four models of LMS511. LMS511-2XXXX uses a small spot laser, which can accurately measure the size and distance of objects. It is mainly used for applications that require high measurement accuracy and complete distance; LMS511-1XXXX is aimed at 10% reflection The distance of the object can reach 40 meters, mainly for the measurement of long distance and anti-collision applications.       The main features of LMS511 are: flexible area configuration (the protection area of ​​various graphics can be set according to the needs of the site, and the graphics can be easily modified at any time according to the needs of the site) reliable anti-interference performance (through internal filtering and multiple echo ), Large protection distance (protection area up to 80 meters), multiple communication interfaces such as Ethernet (more convenient for customer system integration), and internal self-checking functions. It is the best solution for outdoor anti-collision / obstacle measurement or object shape measurement. It is mainly used for outdoor vehicle contour scanning, port equipment positioning, contour scanning and collision avoidance, map scanning, bulk cargo volume measurement, unmanned vehicle navigation, security tracking and area protection.   Technical parameter: Model: LMS511-10100 PRO Type: Standard resolution type Scanning distance: 0.7m ~ 80m Maximum distance at 10% reflectivity: 40m Scanning angle: Max: 190 °, can be adjusted when setting parameters Angle resolution: 0.167°，0.25°，0.333°，0.5°，0.667°，1° Scanning frequency: 25HZ/35HZ/50HZ/75HZ/100HZ Response time: 10 ~ 40ms Measurement accuracy: ± 24mm Spot size: 11.9mrad (11.9mm / m) Number of echoes: 5 Laser wavelength: infrared (905nm) Laser class: Class 1 (eye safety) Data interface: RS232 / RS422 / Ethernet / USB Switch input / output: 4/6 Settable / protected area: 10 Working voltage / power consumption: 24V DC ± 20% / 22W, + 43W heater (typical value) Working temperature / storage temperature: -30 ℃ ~ 50 ℃ / -30 ℃ ~ 70 ℃ Protection level: IP67 Ambient light resistance: 70000lx Dimensions (W * H * D): 160mm * 155mm * 185mm Weight: 3.7Kg Software: SOPAS Engineering software   Application: Mainly used for outdoor vehicle contour scanning, port equipment positioning, contour scanning and collision avoidance, map scanning, bulk cargo volume measurement, unmanned vehicle navigation, security tracking and area protection, etc.
