Overview:

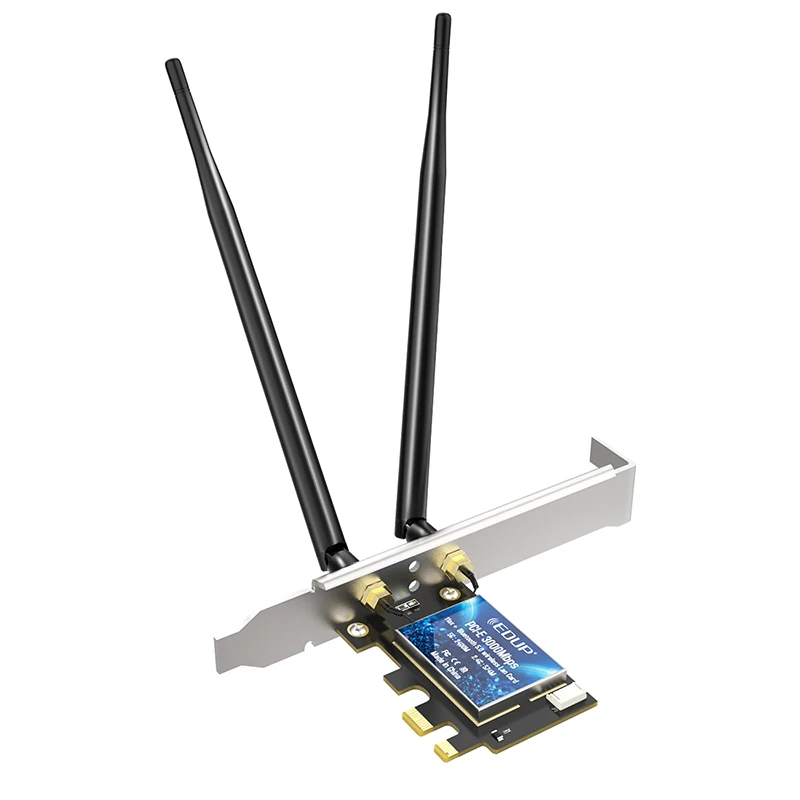

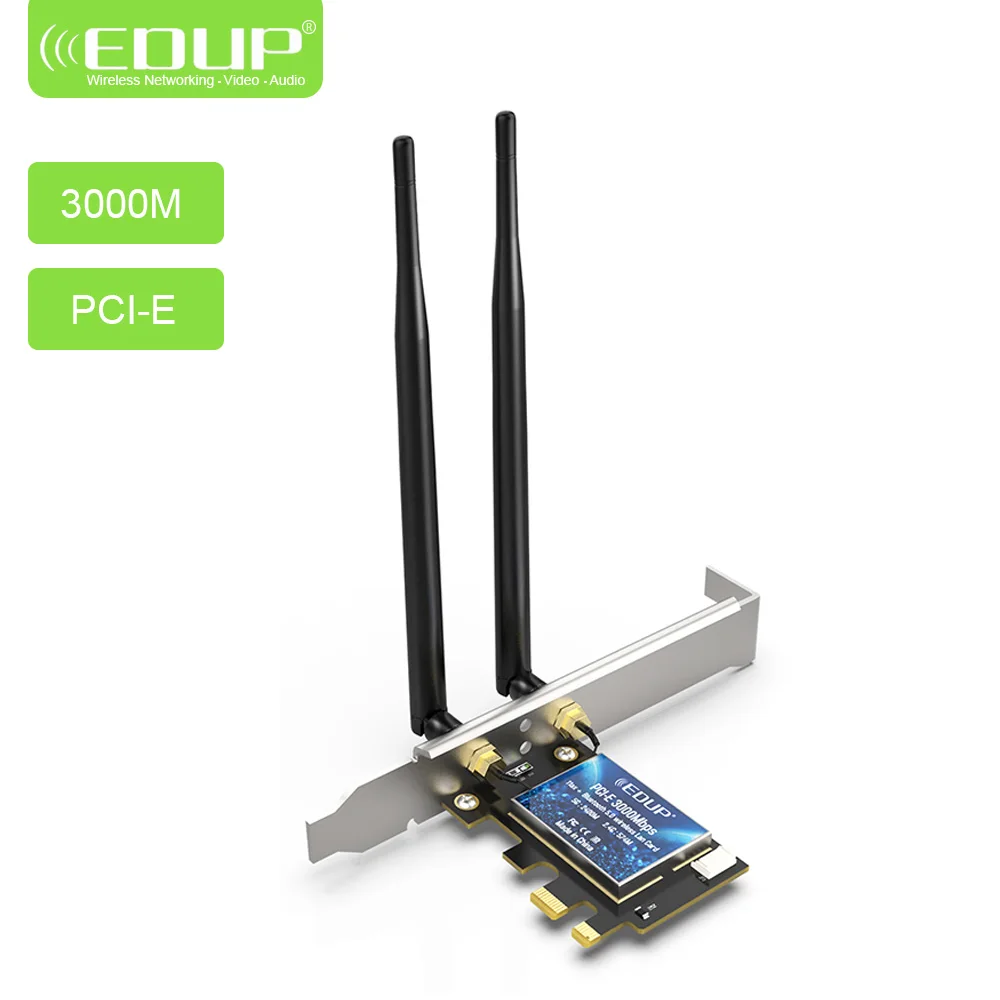

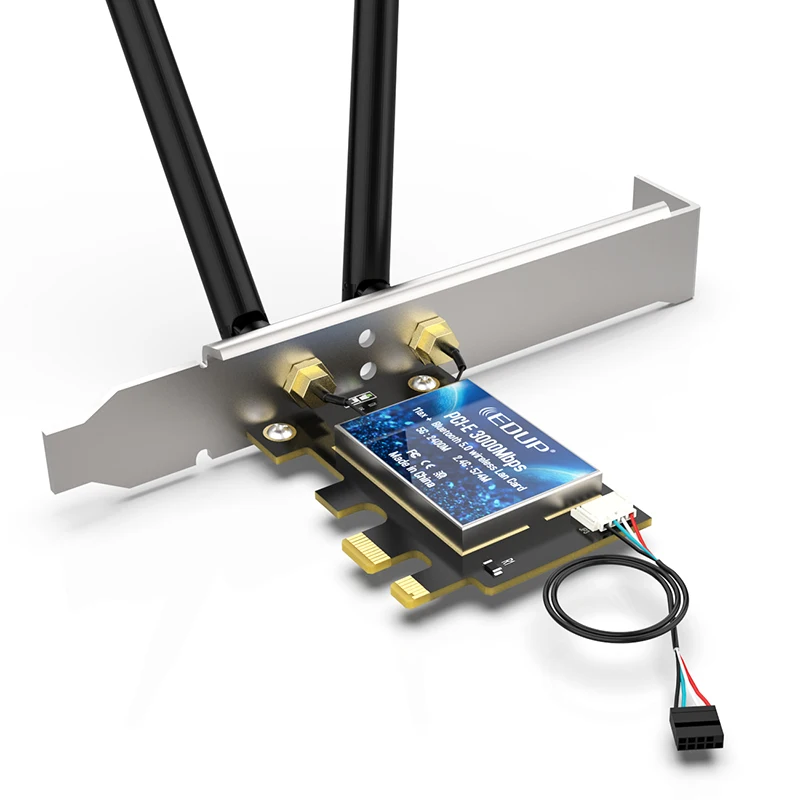

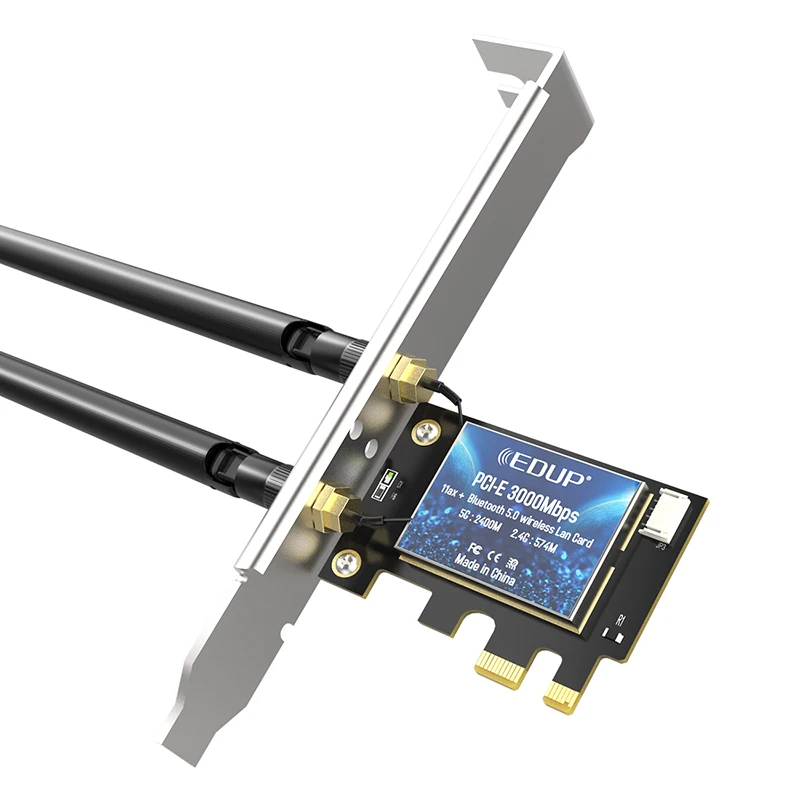

The EDUP Wi-Fi 6 EP-9636 internal desktop computers adapter is a WLAN card that supports 802.11ax via 2x2 MU-MIMO antennas over the 2.4 GHz and 5 GHz bands. for PC motherboards in the PCI-E/x1/x4/x8/x16 Form-factors. As a Wi-Fi 6 adapter, it supports 802.11ax over 2x2 MU-MIMO antennae, and peak bandwidth of 2.4 Gbps, with support for Both the 5 GHz and 2.4 GHz bands.
Matching Wi-Fi 6 devices adapters desktops will deliver the best results for example: ASUS Gigabit WiFi Router GT-AX11000 RT-AX88U RT-AX92U RT-AX95Q RT-AX95U GT-AX6000 RT-AX58U ROG Rapture Arris SURFboard mAX W31 TG9442 D- Link DIR-X6060 DIR-X9000 Netgear RAX200 (Nighthawk Tri-Band AX12) RAX80 (Nighthawk AX8) RAX120 (Nighthawk AX12) RAX40 (Nighthawk AX4) RAX40 (Nighthawk AX4) AC1900 Dual Band WiFi Router TP-LINK Archer AX11000 Archer AX1500 Archer AX1800 Tplink Archer AX6000 Calix GigaSpire ect
4x Longer OFDM Symbol Make Latency A Thing of The Past. The Wi-Fi 6 standard uses OFDMA for increased efficiency. Imagine your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac WiFi, each delivery truck or Packet" could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both uploads and downloads.
Operating Systems:  Microsoft Windows 10, 64-bit on Intel platform only, do not support AMD.
New gaming high speed wireless adapter BT5.0 Function Equipped with BT5.0 technology. Support connecting with Bluetooth headset, Bluetooth stereo, Bluetooth keyboard, Bluetooth mouse and others for more conveniences and demands. Efficient WiFi Emission Insert it in a desktop computer to build Wireless WIFI signals. Mobile phones, laptops, tablet, PCs are able to connected.
The AX200 arrives in an PCI-e Wi-Fi 6 form factor, supporting a maximum speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band (802.11ax in both). The module supports MU-MIMO, 2x2 TX/RX channels with two antennae and BT 5.0.

Matching Wi-Fi 6 devices will deliver the best results FV-AX200, like have a compatible router for wifi 6:
ASUS Gigabit WiFi Router GT-AX11000 RT-AX88U RT-AX92U RT-AX95Q RT-AX95U GT-AX6000 RT-AX58U ROG Rapture
Arris SURFboard mAX W31 TG9442 D-Link DIR-X6060 DIR-X9000
Netgear RAX200 (Nighthawk Tri-Band AX12) RAX80 (Nighthawk AX8) RAX120 (Nighthawk AX12) RAX40 (Nighthawk AX4) RAX40 (Nighthawk AX4) AC1900 Dual Band WiFi Router
TP-LINK Archer AX11000 Archer AX1500 Archer AX1800 Tplink Archer AX6000 Calix GigaSpire GS2020E GS2026E Charter RAX1V1K NEC BL1000HW
Ruckus R730
And many other version routers support wifi 6 network

4x Longer OFDM Symbol
Make Latency A Thing of The Past
OFDM is a symbol that transmits data. It divides its data among smaller sub carriers for more stability and wider coverage. AX WiFi uses a 4x longer OFDM symbol to create 4x more sub carriers. Because of this, Wi-Fi 6’s longer OFDM symbol provides increased coverage and makes it 11% faster. Enjoy rock solid coverage from your garage to the second story and get ultra-fast connections for all your smart home, mobile, gaming and desktop devices in between.
The Wi-Fi 6 standard uses OFDMA for increased efficiency. Imagine your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac WiFi, each delivery truck or “packet” could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both uploads and downloads.

Next-Gen Wi-Fi — 802.11ax
AX200 wifi adapter for desktop is based on Wi-Fi 6, or IEEE 802.11ax technology. This desktop pcie wifi card supports 2x2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering data rates of up to 2.4Gbps and increased network capacity as well as BT 5.0 support.
The EDUP AX200 is EDUP’s wifi card with next-generation 802.11ax Wi-Fi technology.
Take your Desktop Wi-Fi to the next level while being backward compatible with 802.11a/b/g/n/ac Wi-Fi standards.
I deliver a significant improvement in user experience in dense deployments, supporting fast uploads and downloads, lower latency and longer battery life compared to solutions supporting 802.11ac.
AX200 has BT5.0 Function Equipped with BT5.0 technology. Support connecting with Bluetooth headset, Bluetooth stereo, Bluetooth keyboard, Bluetooth mouse and others for more conveniences and demands.
Efficient WiFi Emission Insert it in a desktop computer to build wireless WIFI signals. Mobile phones, laptops, tablet, PCs are able to connected.
FFT Size: 256, 512, 1024, 204

160 MHz Channel Width
Wi-Fi 6 expands the WiFi band from 80 MHz to 160 MHz, doubling the channel width and creating a faster connection from your router to the device. With Wi-Fi 6, you can enjoy 8K movies, large file downloads and uploads, and responsive smart home devices – all without buffering.
Guidelines when to use Channel Bonding
20 MHz
• If using voice only – or the spectrum has lots of radar activity forcing channel changes • If you have lots of non 11n/ac capable 5 GHz clients (early .11a clients) • If you have light/medium data requirements
40 MHz
• If using interactive or streaming video • If requirements are for moderate or heavy data usage
80 MHz
• If using a significant amount of .11ac capable clients • If you have lots of .11ac smart phones (1-SS) and need faster throughput • High Definition Video streaming or other multimedia rich content applications • Heavy data usage for high throughput
160 MHz
• If using a significant amount of .11ac Wave 2 capable clients • Using point-to-point bridge or WGB mode • Very heavy data usage

With Wi-Fi 6’s BSS Color
Interference from your neighbors' wireless networks can cause issues with your wireless signal. BSS (Base Service Station) Color, marks frames from neighboring networks so that your router can ignore them. If you’ve ever lived in an apartment or close to your neighbors, this means that your router just became that much more efficient – no extra work required.

Beamforming
802.11ax will employ an explicit beamforming procedure, similar to that of 802.11ac. Under this procedure, the beamformer initiates a channel sounding procedure with a Null Data Packet. The beamformee measures the channel and responds with a beamforming feedback frame, containing a compressed feedback matrix. The beamformer uses this information to compute the channel matrix, H. The beamformer can then use this channel matrix to focus the RF energy toward each user.

Boosted Throughput with MU-MIMO
With MU-MIMO technology, ax3000 can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
Pack More Data ­ With 1024 QAM
With 1024-QAM, each symbol carries 10 bits rather than 8 bits, improving raw speeds by 25% compared to 802.11ac 256-QAM. Watch Netflix at home or live stream Twitch Broadcasts from your home computer – with 1024 QAM, streaming just got that much better.

Flags: BT 5.0, DFS (slave), VHT160, HE160, Wi-Fi 6, 1024QAM
Bands: 2.4 Ghz 5 Ghz
Channel: 20MHz, 40MHz, 80MHz, 80+80MHz & 160MHz

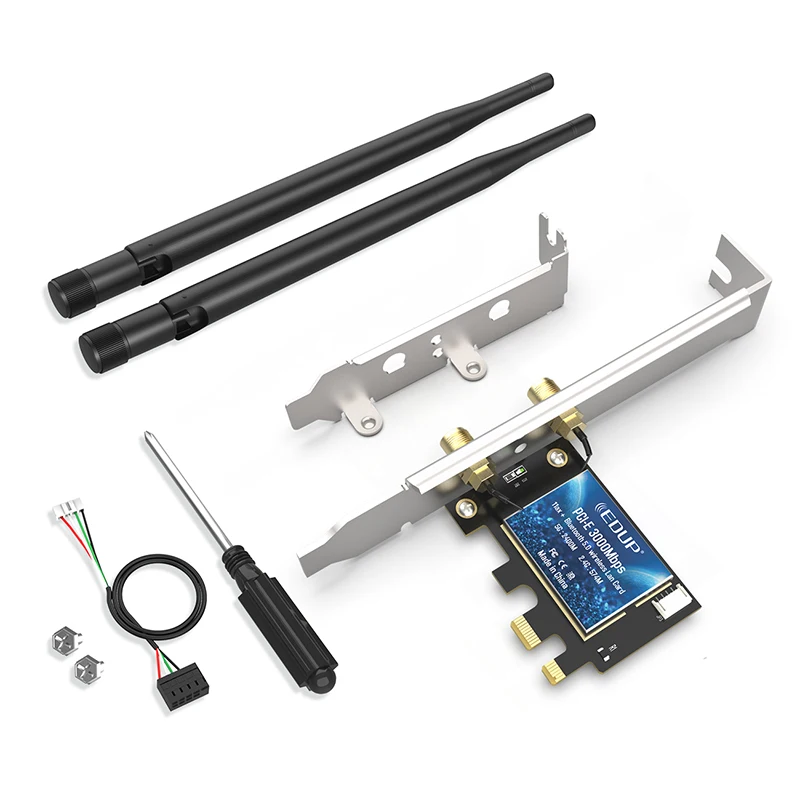

Package Contains:
1 x PCI-E Network Card
1 x Manual
1 x Screw
1 x Screw Driver
