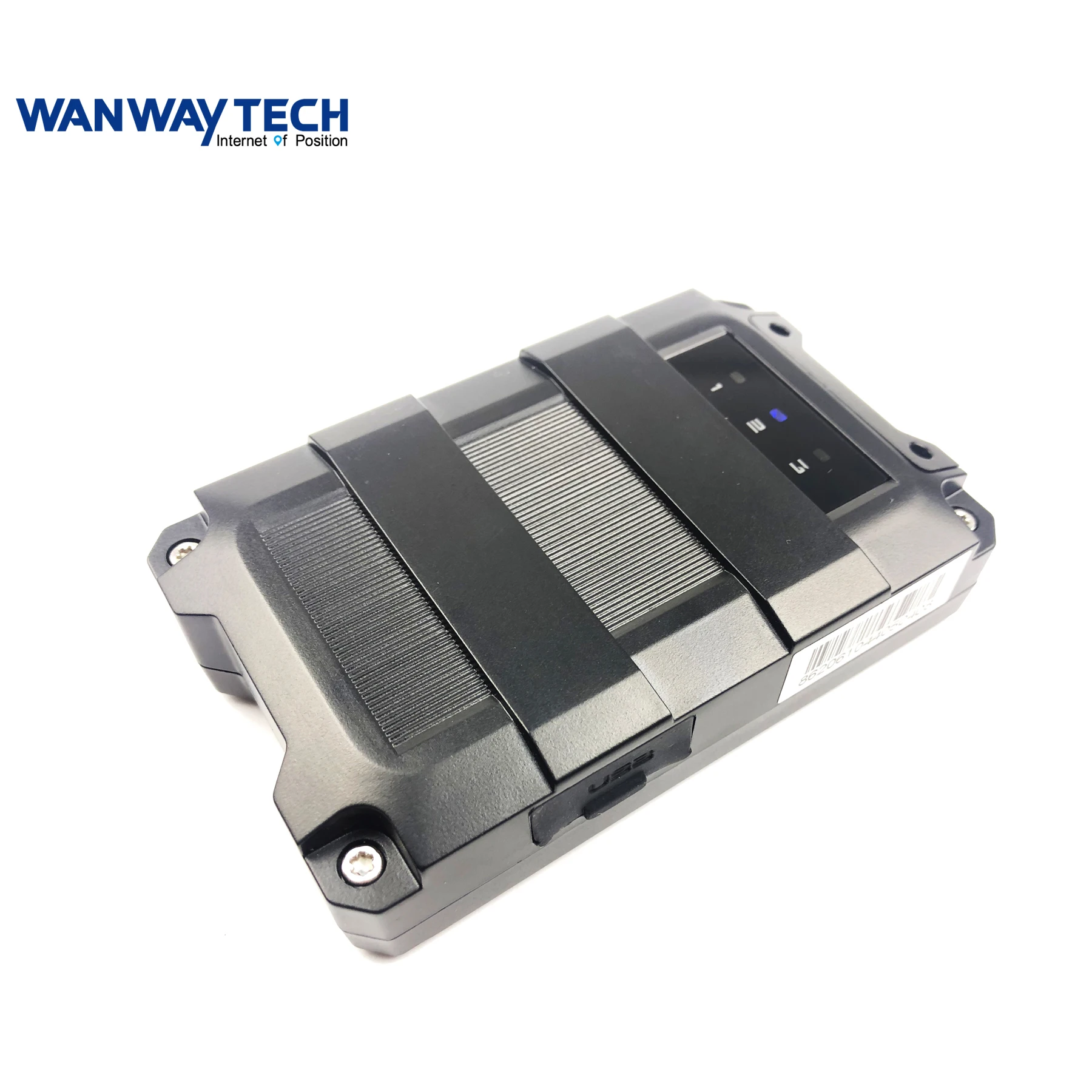

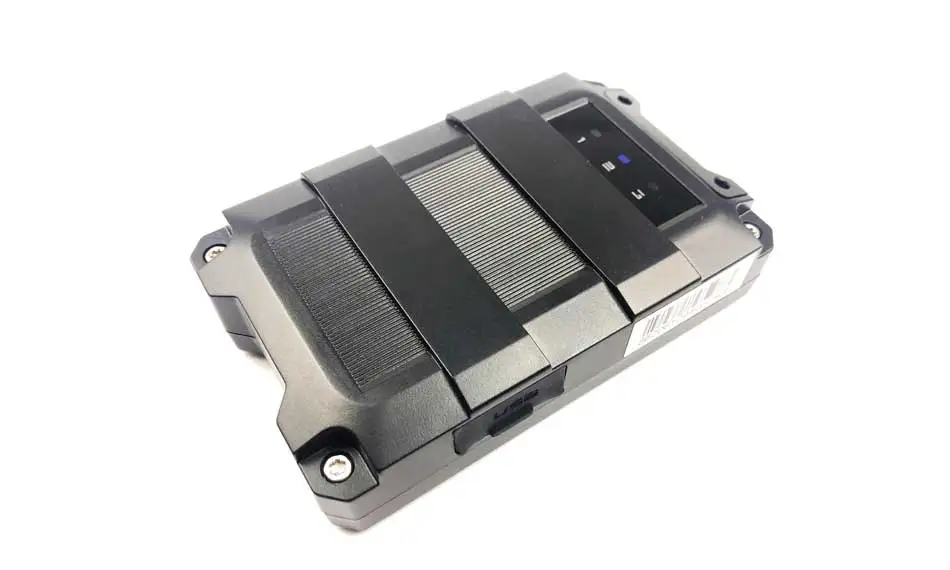

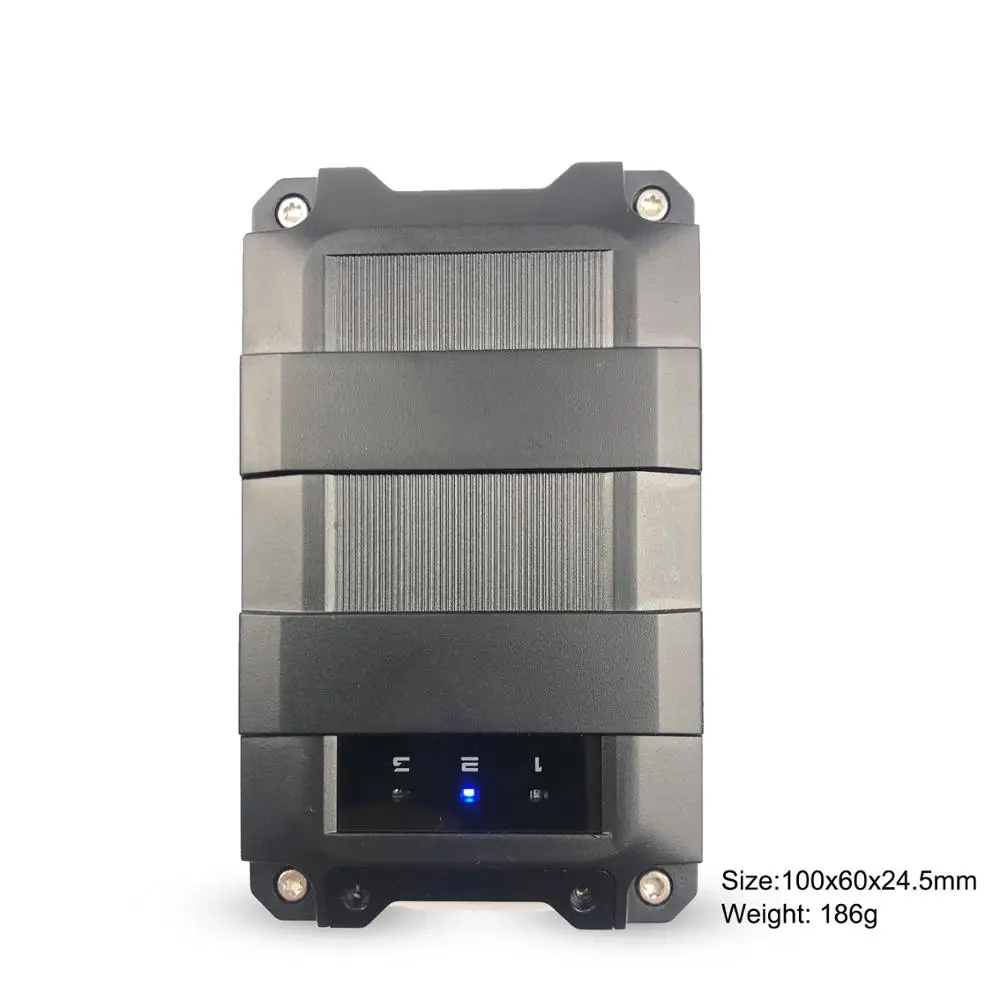

WanWayTech 4G Portable GPS Tracker GS30 Free Installation GPS/BDS/GLONASS/LBS Positioning with Trackin Software Remotely Control |

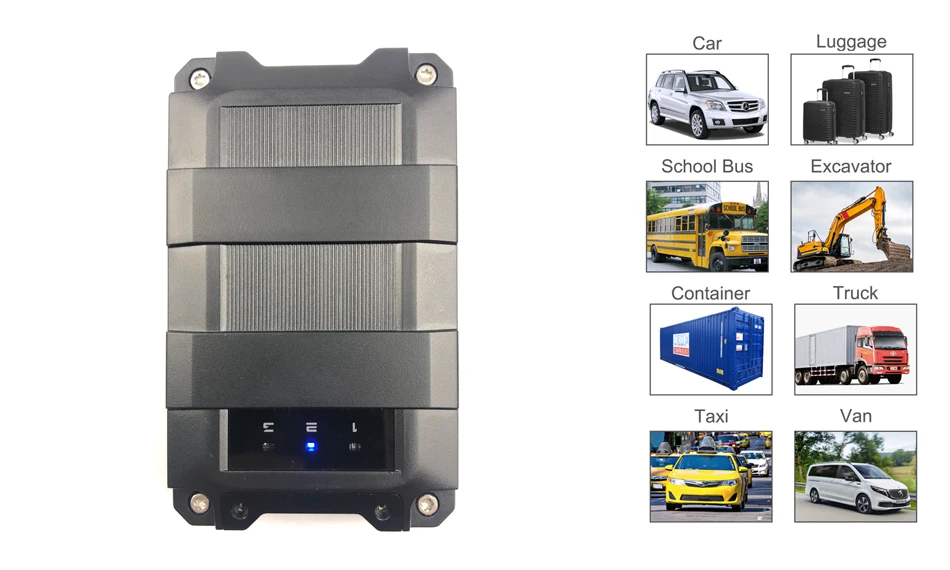

About GPS Tracker GS30 - suitable for car owner and car rental, loan vehicles, fleet management, transport industries.

GS30 is a 4G wireless real-time positioning device. The terminal uses a large 5000mAh battery capacity to meet long-term positioning and tracking needs. Using hybrid positioning mode, BDS (Beidou), GPS, GLONASS, and LBS base station positioning methods can be set to provide users with a more reliable positioning method, and the device is connected to wanwaytech big data management platform to provide users with security protection.

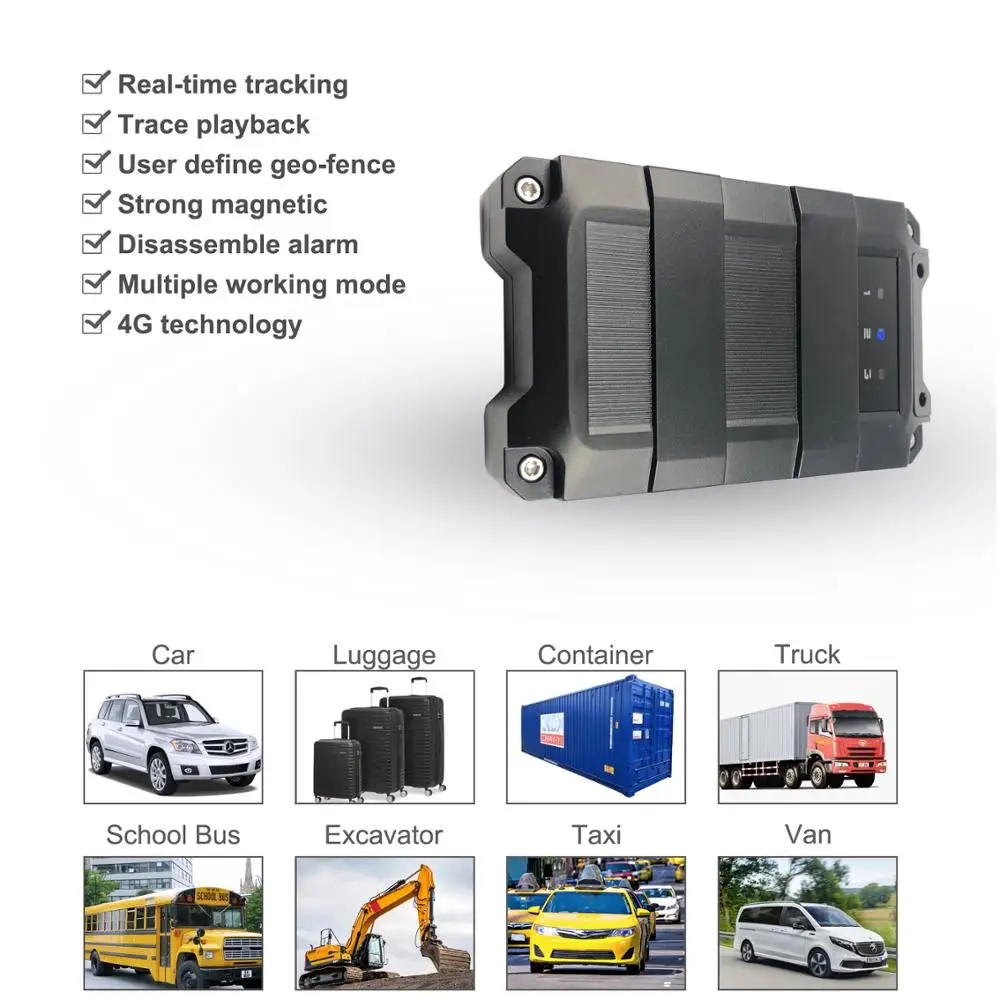

Functions and Features

• GS30 Functions

         4G Technology: Cat M1 or Car 4 4G fast positioning service.

         Real-time Tracking: update position every 10 seconds with continuos tracking.

         Trace Playback: check the history trace of your vehicle to help you find useful information.

         User Define Geo-fence: Users can set a range of Geo-fence on map, and it will alarm when the device gets in or out of presetting range via APP or SMS.

         Over-speed Alarm: when your speed is over what you set, it will send alarm to remind you keep safe.

         Light Sensor & Disassemble Alarm: Send alarm notification when someone remove the device.

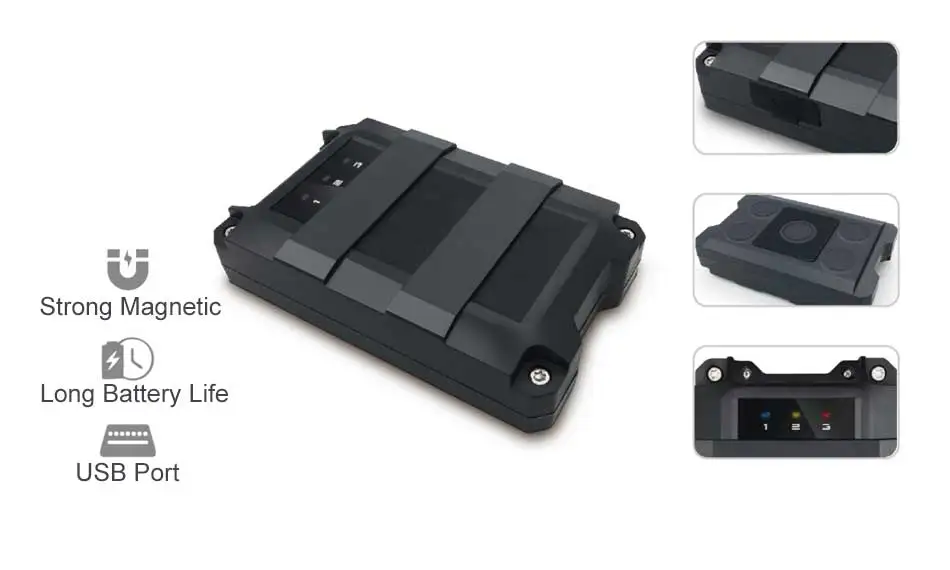

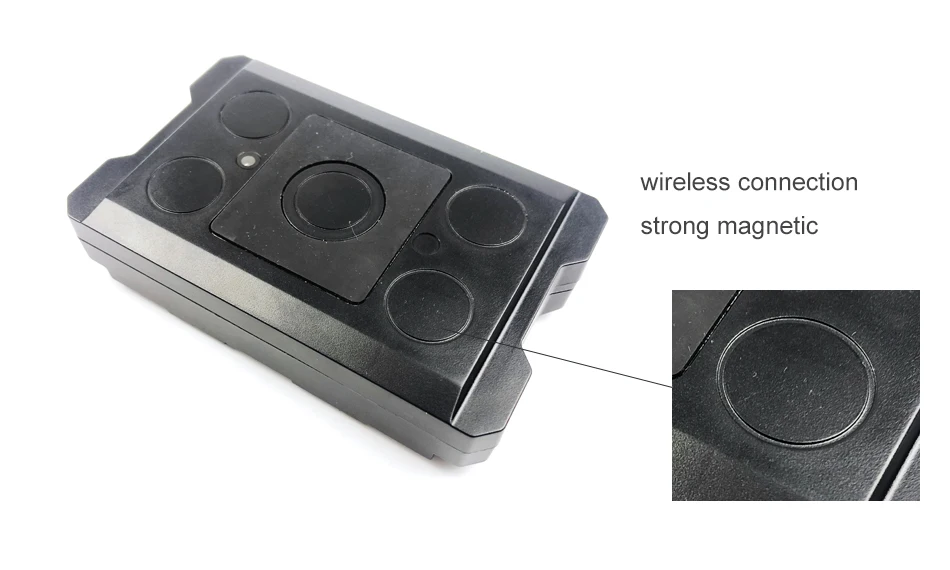

         Strong Magnetic: Easy to install in some metal thing.

         Low Power Alarm: 5000mAh large battery for 3 years long standby time.

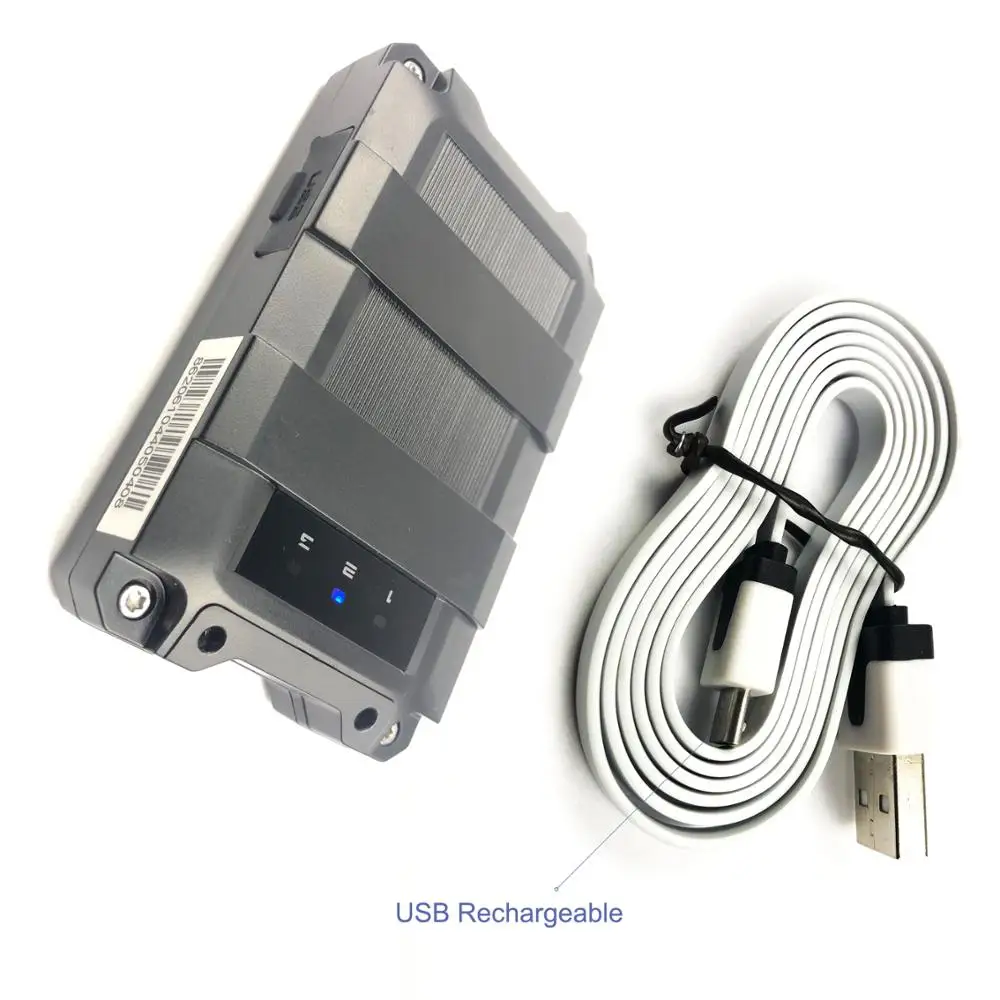

         5000mAh Rechargeable Battery: Power consumption in microampere level

         Low Power Consumption: When device is in low power, send message to tell you charge it in time.

         Platform/APP/SMS Checking: Various methods like platform, app, sms to check asset status.

• GS30 Features

         Large Battery: 5000mAh long standby time.

         4G(Cat M1 or Car 4 4G): Customized for 4G network

Product Parameters

Commands Control

1.APN setting

To ensure GPRS is activated, please make sure APN is correct.

You can send SMS command to set APN. APN command

format:APN,APN's Name#

Eg: APN,internet#("internet"is the APN of carrier)

The device will reply"ok"if setting successfully.

Note:The APN of some countries have user name and

password,you may need to send SMS command as

following:APN,APN name,user name,password#

2.Server setting

Default platform is wanwaytrack server.

To connect other platform, please send the SMS command

to change the server IP:

Server,0,IP,Port,0#

Domain setting:Server,1,domain,port,0#

The last "0" stands for :TCP

It will reply "ok"after set successfully.

3.Check param setting

You can check the parameter setting by command:

PARAM#

Example:PARAM#

The replied information contains IMEI number,GPS data

uploading inteval,GPS working time and so on.

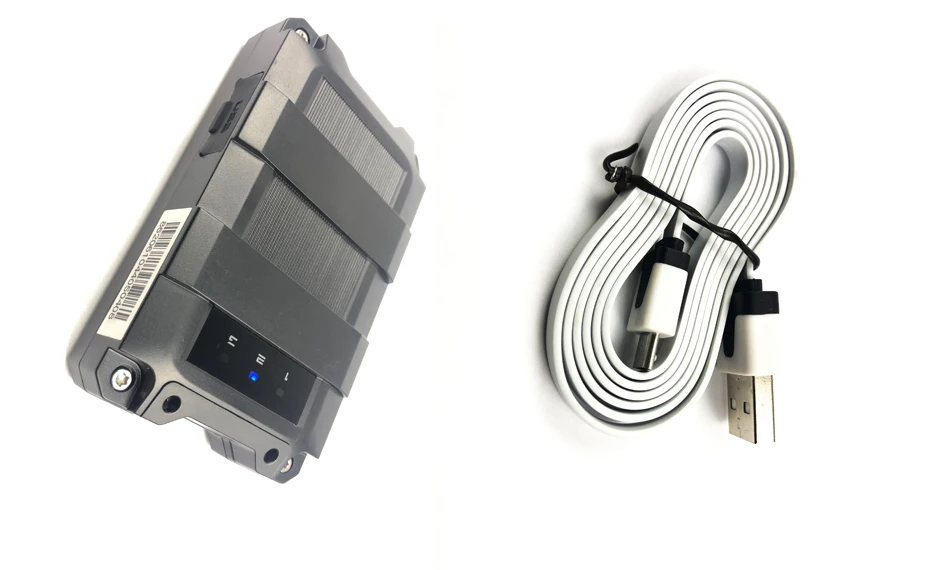

Packing Lists

Device X1

Wire X1

Warranty card X1

User manual X1

Product Certifications

GPS+Beidou+LBS Positioning

The device can locate via both GPS/BDS/GLONASS/LBS, once there has good gps/beidou signal, it will locate via GPS, if it doesnrsquot have GPS signal, it will locate via LBS. The GPS position accuracy is 5-10m, and the LBS position accuracy is about 200m.

Real-time Tracking

1. Send SMS command where# to get vehicle current position include lat &lon, mileage, speed etc.

2. Check through platform and WanWayTrack APP. three modes street view, map and satellite optional.

User Define Geo-fence

Set up geo-fence zones for the device to restrict its movement in or our the zone. Once It breaches the boundaries, the device will send alarm message to the autorized numbers.

Wiring Connection

Installation Positions Recommendation

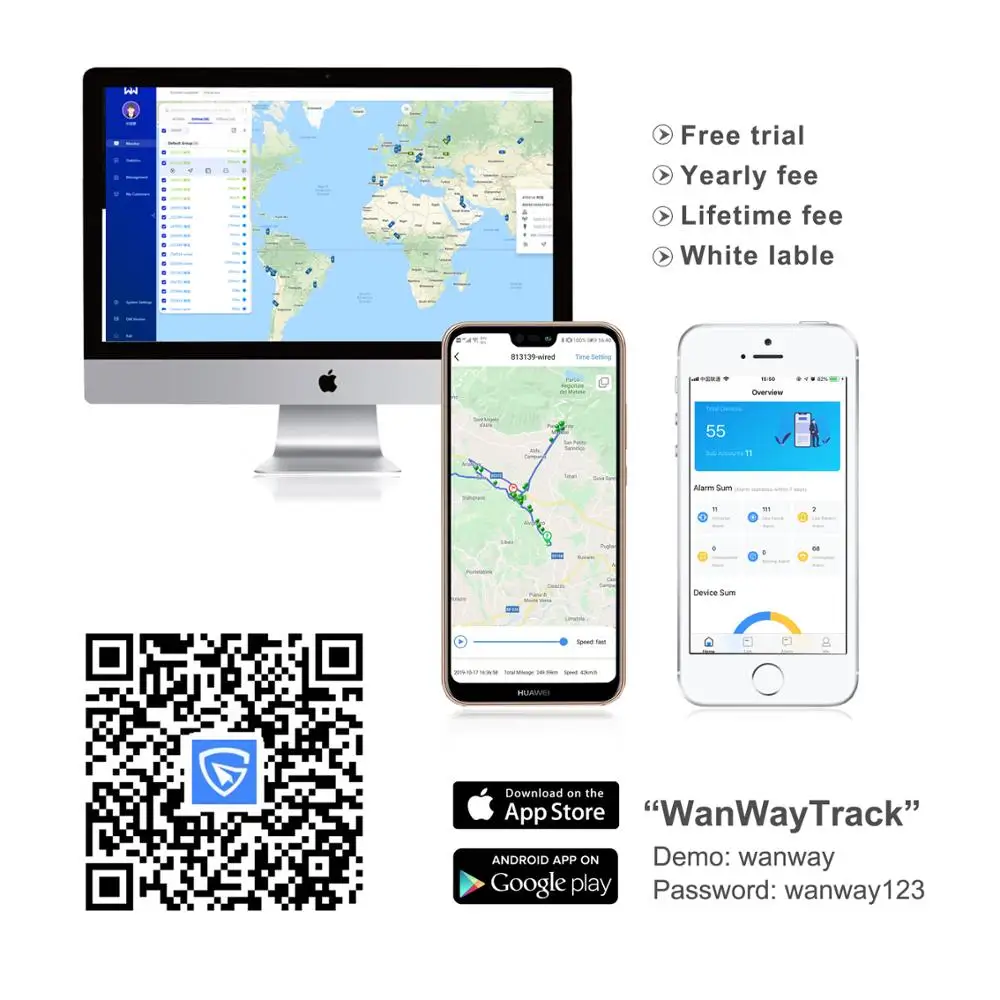

WanWay Track platform is the Global Best GPS Tracking System. With more than 10 languages and Google map support, it has served for over 136 countries and 2 million customers. Our platform has the most accurate statistics and quickest signal under the support of big data from our base station in USA,Singapore and India. Various GPS trackers or GPS devices can be accessed to our platform for providing gps tracking solution. It is now widely used in car rental, fleet management, logistics, transport and other automotive industries.

Notice:

Our platform is free to use for one year

Website : www.wanwaygps.com

Accout: wanway

Password:wanway123

"WanWayTrack" Download:

"WanWayTrack" Login:

Our Service

1. We support one year platform free, during the period, you can use our platform without any restriction. If expired, please contact after-sales person for renew.

2. The device has one year free replacement. Faulty device must be reported and returned within the warranty period, keep original package if possible. Device expired warranty is not acceptable.

3. WanWay Tech online technical support team will service you. In the box, you can find our after-sales service card, if any question, please don't hesitate to contact us. Your satisfaction is our inexhaustible motive force.

FAQ

Q1. Do this gps tracker need a sim card?
A: Yes, this device needs a sim card which has gprs service.

Q2: How many data traffic will it use monthly?
A: Usually 50mb data traffic will be need. For saving data traffic, you can set positioning time interval for device.

Q3: Why gps tracker show offline on the platform?
A: When you meet this situation, please check your sim card if it works normal. Try to send sms command "status#", show the reply message to our after-sales team, they will help.

Q4: How long will i get the packge after payment?

A: This depends on logistics system. In normal condition, the package will arrive at your address in 30 days.
