Professional Digital Oscilloscope 500MS/s Sampling Rate 110MHz Analog Bandwidth Support Waveform Storage

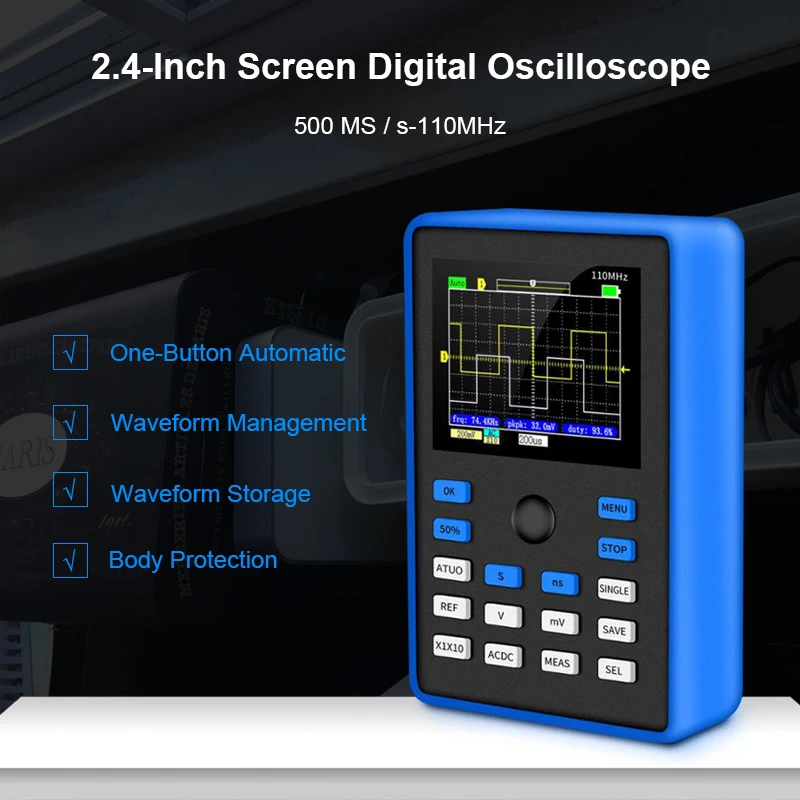

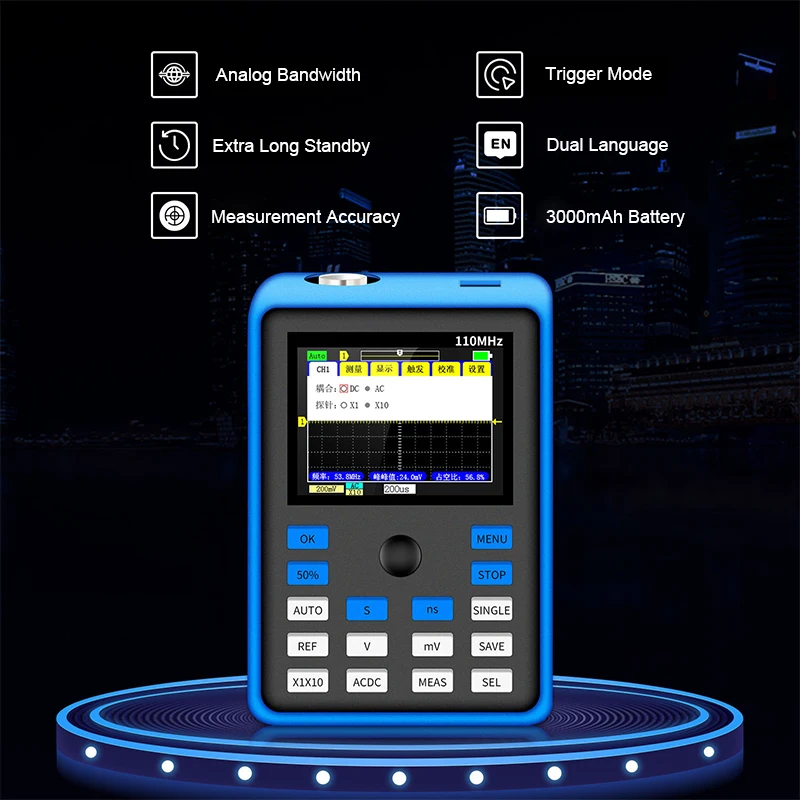

1C15 is a full-featured, practical, cost-effective handheld oscilloscope launched by Rubyster. 500M real-time sampling rate, 110MHz analog bandwidth. In addition to all the functions of a conventional handheld oscilloscope, we have added a one-button fast Auto function on this basis, so you can grasp the waveform as easily as a desktop computer. Fast waveform storage function, can store up to 81 pictures. Reference waveform, you can pause to save the previous frame waveform to the screen at any time, and you can compare it with the currently refreshed waveform. Afterglow and scroll modes make it easier to detect and record waveforms. Built-in 3000mAH rechargeable battery, can work continuously for more than 10 hours when fully charged. The body is equipped with a high-quality silicone sleeve, which is non-slip and anti-fall. The joystick replaces the original direction button, which is simpler and more efficient to operate.

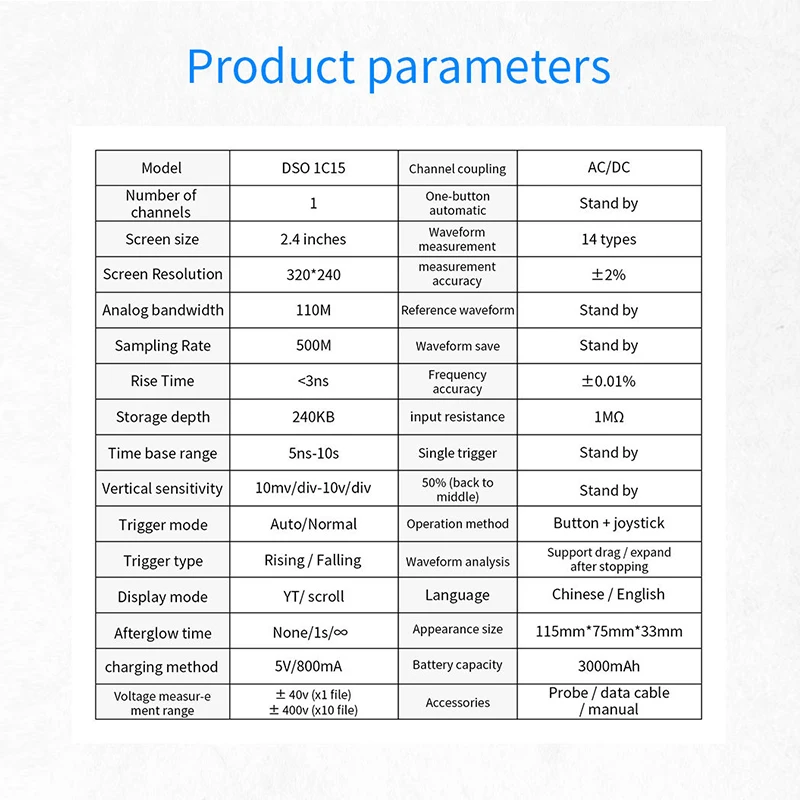

Product parameters:

Model : 1C15 Number of channels : 1 Screen size : 2.4 inches Screen Resolution : 320*240 Analog bandwidth : 110M Sampling Rate : 500M Rise Time : <3ns Storage depth : 240KB Time base range : 5ns-10s Vertical sensitivity : 10mv/div-10v/div Trigger mode : Auto/Normal Trigger type : Rising/Falling Display mode : YT/scroll Afterglow time : None/1s/∞ charging method : 5V/800mA Voltage measurement range : ± 40v (x1 file);± 400v (x10 file) Channel coupling : AC-DC One-button automatic : Stand by Waveform measurement : 14 types Measurement accuracy : ±2% Reference waveform : Stand by Waveform save : Stand by Frequency accuracy : ±0.01% input resistance : 1MΩ Single trigger : Stand by 50% (back to middle) : Stand by Operation method : Button + joystick Waveform analysis : Support drag/expand after stopping Language : Chinese/English Appearance size : 115*75*33 Battery capacity : 3000mAh

Package includes:

1 x 1C15 oscilloscope host 1 x Matching 100MHz probe(1X and 10X) 1 x Micro USB data line 1 x User manual (English) 1 x High quality package
