Описание товара

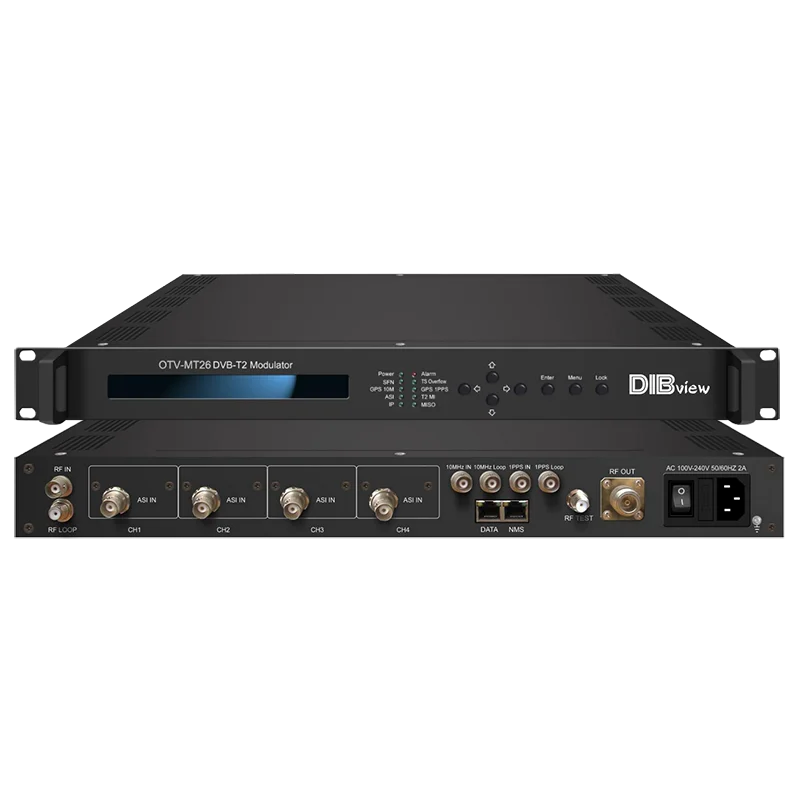

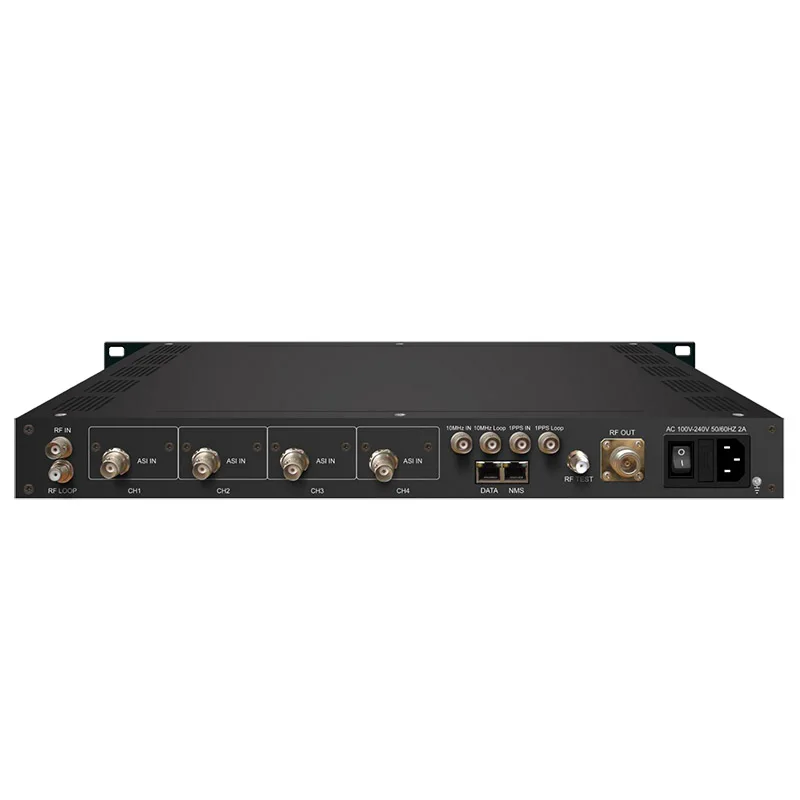

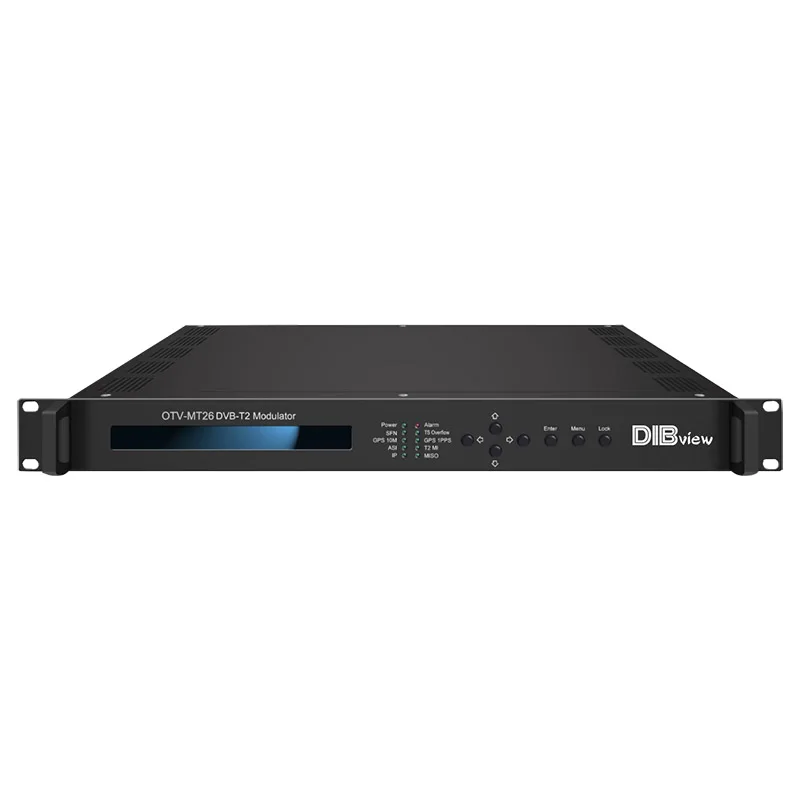

OTV-MT26 DVB-T2 modulator is our new product developed complying with the DVB-T2 standard. With its advanced modulating technology, this modulator can effectively make use of the ground spectrum resources and make it possible to provide reliable signals for fixed, mobile and portable devices. Compared with DVB-T, the channel capacity is increased by 30% under the similar carrier to noise ratio (CNR) threshold.
OTV-MT26 DVB-T2 modulator also supports single-PLP and multi-PLP (option) to receive T2-MI from DVB-T2 gateway through its ASI and IP port. (This function is also option.)
Moreover, OTV-MT26 DVB-T2 Modulator can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T2 STB.
Key Features:
4 ASI inputports (for 1 channel TS input with 3 ports for backup)
DVB-T2 RFoutput
TS over IP input (UDP); T2-MI over IP input (Option)
Fully complying with EN302 755 standard
10MHz input/loop out, 1PPS input/loop out
Supports single PLP, multi-PLP (Option) , Support MISO and SISO
Support QPSK/16QAM/64QAM/256QAM (normal or rotated)
Support TS format: T2-MI (Option) or TS (Mode A)
High performance output: MER>43dB, shoulder level>56dB
Output signal bandwidth: 5M, 6M, 7M, 8MHz
Support MFN and SFN (Option) net mode
Supports non-linear and lineardigital pre-distortion (DPD)(To Video)for optional.
RF output level: -25~+3 dBm, 0.1db stepping
Constant temperature crystal oscillator, as high as 0.1ppm stability
Keyboard operation and LCD display
Web Network management system(GUI)
Technical Specifications:
Item | Description |
IP Input | |
T2MI input over ASI and IP (Option), 100 Mbps Ethernet port | |
TS input over ASI andIPport (UDP) | |
10MHz reference clock input and loop out, BNC interface | |
1PPS input and loop out, BNC interface | |
RF Output | |
Connector | N Type, 50ΩImpedance |
RF range | 30~999Mhz, 1hz stepping |
Output level ATT | -25~+3 dBm, 0.1db stepping |
MER | > 43db |
Shoulder Level | >56dB |
Modulation Part | |
Standard | EN302 755 |
Mode | Mode A: single-PLP; Mode B: multiple-PLP (Option) |
PLP Constellation | QPSK, 16QAM, 64QAM, 256QAM (Normal or Rotated) |
L1Post Constellations | BPSK, QPSK, 16QAM, 64QAM |
FEC Length | Short(16K), Normal (64K) |
FEC Rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 |
Pilot Pattern | PP1 - PP8 |
Guard Interval | 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4 |
FFT Mode | 1k, 2k, 4k 8k, 16k, 32k (normal or extended) |
Bandwidth | 5MHz, 6MHz, 7MHz, 8MHz |
Net Mode | MFN, SFN (Option) |
System Management | |
LCD display, keyboard and web Network management | |
Supporting software upgrading through network | |
The Working Environment | |
Warranty | 3 years with free telephone support |
Power Supply | AC 100V-220V±10%, 50/60Hz |
Operation/Storage temperature | -10 -50°C/-20-80°C |
Dimensions | 482mm x 410mm x 45mm |
Weight | 6.5Kg |

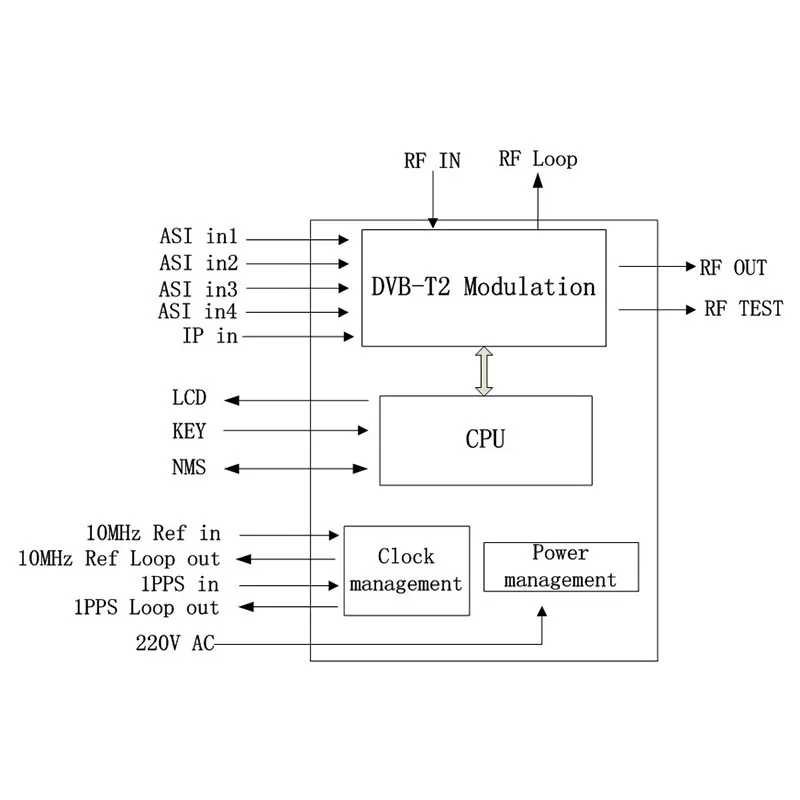

Key Diagram:
DVB-T Modulator, DVB-T2 Modulator, DVBT2 Terrestrial Modulator
