315/433 МГц DC 12V 24V 36V 48V 12CH 12 канальный РЧ Беспроводной дистанционного Управление

315/433 МГц DC 12V 24V 36V 48V 12CH 12 канальный РЧ Беспроводной дистанционного Управление

1.Feature:

1.Working Voltage: 12V --48V   (12V 24V 36V 48V all is ok )

2.Quiescent Current: less than 10mA

3.Working Current: 30mA (1 Relay)

4.Working Temperature: -40'C - +80'C

5. Receiving Sensitivity: more than -105dBm

6.Working Frequency: 315MHz / 433MHz  Optional

7.Relay: 10A AC250V   10A AC125V 10A DC30V   10A DC28V

8.Max Load: 10A Relay, Resistive load less than 8A, Inductive load less than 3A

9.PCB Size: 122*87*17mm

10.Case Size: 145*91*40 mm


2. The way of output

A. 1-12CH Momentary-----Press Transmitter Button “1”to learn

B. 1-12CH Latched----- Press Transmitter Button “2” to learn

C. 1-12CH Toggle-- -- Press Transmitter Button “3” to learn

D. 1-6CH Momentary, 7-12CH Latched------Press Transmitter Button “4” to learn

E. 1-6CH Momentary, 7-12CH Toggle------ Press Transmitter Button “5” to learn

F. 1-4CH Momentary, 5-12CH Latched------- Press Transmitter Button “6” to learn

G. 1-4CH Momentary, 5-12CH Toggle ------- Press Transmitter Button “7” to learn

H. 1-4CH Toggle, 5-12CH Latched------- Press Transmitter Button “8” to learn

Momentary------------Press the Transmitter button 1, the receiver relay 1th is ON, release button 1; the receiver relay 1th is OFF, the same as 2/3/4/5/6---12 are independent.

Toggle---------------Press transmitter button 1 for 1 time, the receiver relay 1th is ON, press button 1 again, the receiver relay 1th is OFF, the same 2/3/4/5/6---12 are independent.

 Latched------------------

Press transmitter button 1, the receiver relay 1th is ON, the relay 2/3/4/5/6 ---12 is OFF.

Press transmitter button 2, the receiver relay 2th is ON, the relay 1/3/4/5/6----12 is OFF.

Press transmitter button 3, the receiver relay 3th is ON, the relay 1/2/4/5/6----12 is OFF

Press transmitter button 4, the receiver relay 4th is ON, the relay 1/2/3/5/6----12 is OFF.

 …………….

It also mean .Latched only can keep 1CH ON .and it will often have 1CH is ON.

3. Learning way and steps

1. Press the learning Button of the receiver and buzzer keep tweeting, indicate enter into the status of learning

2. Press the Relative button of the transmitter to learn Relative output way, indicate learning success as the buzzer tweet “Be Be Be” 3 sounds ,and then you press the transmitter Button you can hear the relay act sound. The receiver automatically exits learning state if you do nothing in 32 seconds.

4. Delete memory message

Keep pressing the learning Button of the receiver, the buzzer buzzer tweet and “Be Be Be Be  “ then release the button , indicate success to delete the memory message.

Note:  433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

Package include:

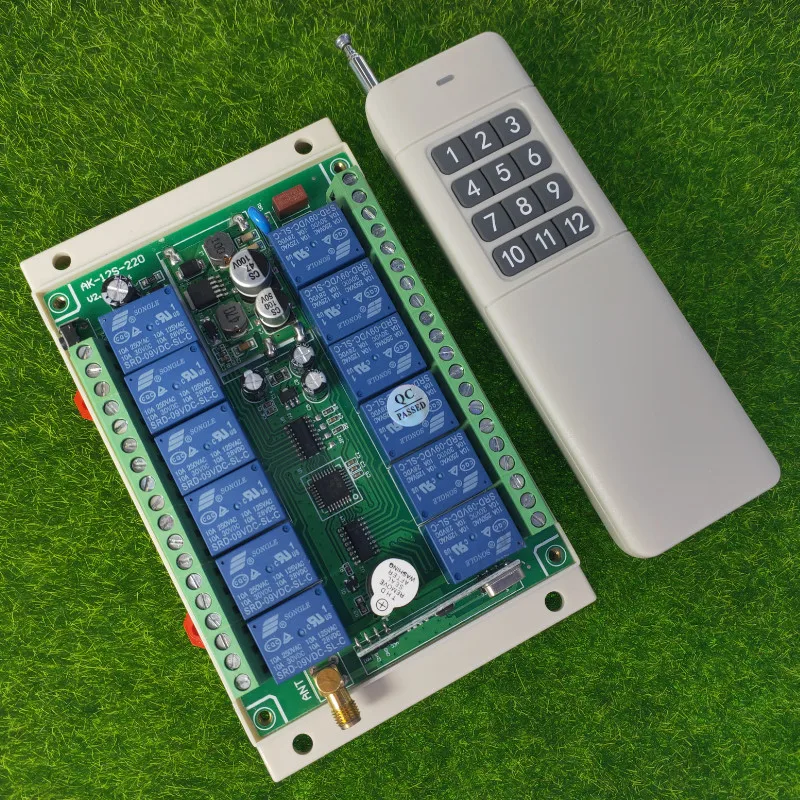

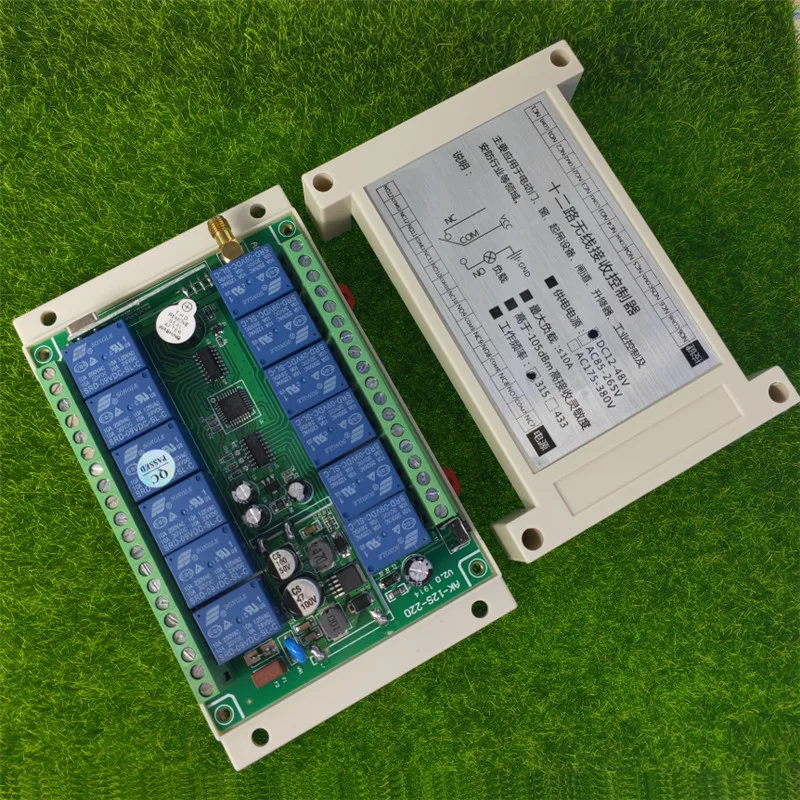

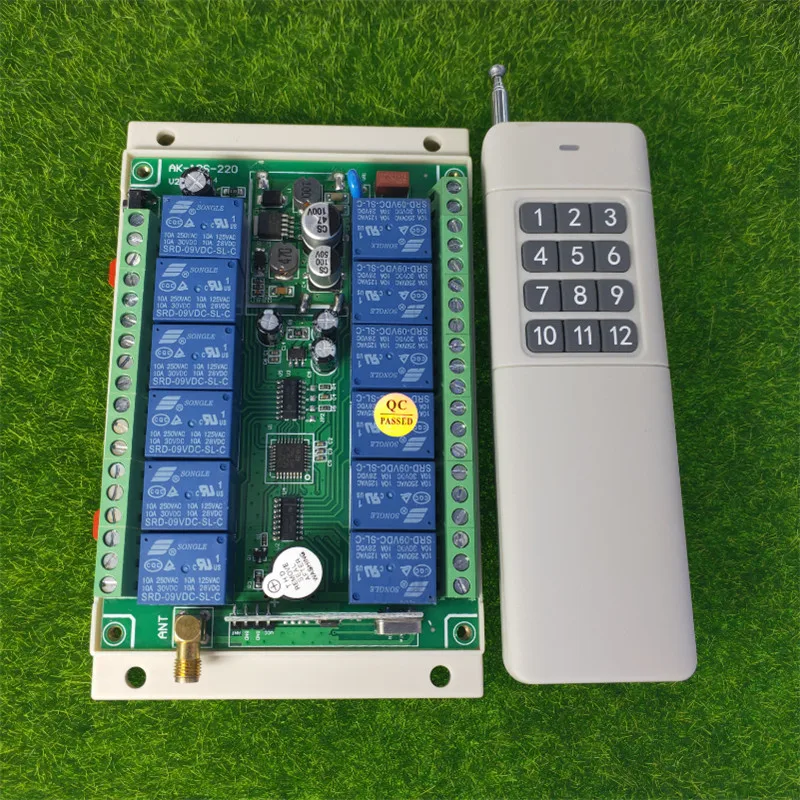

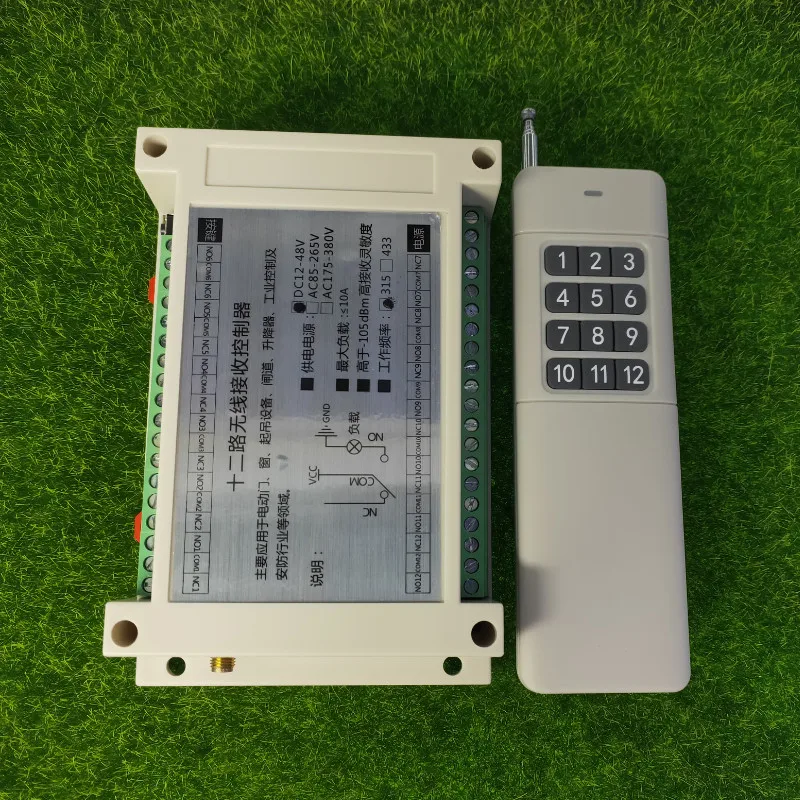

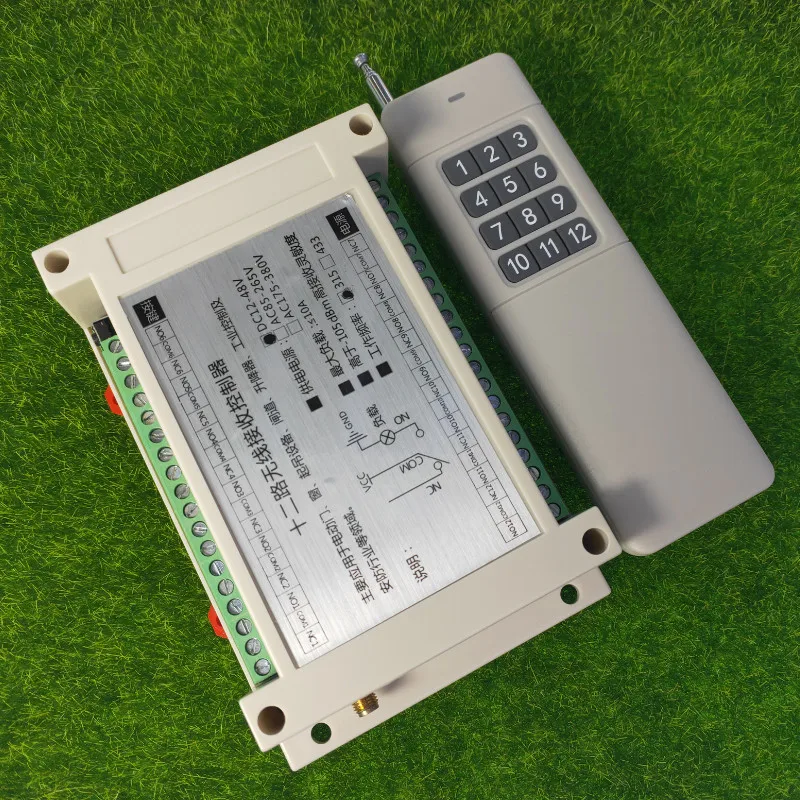

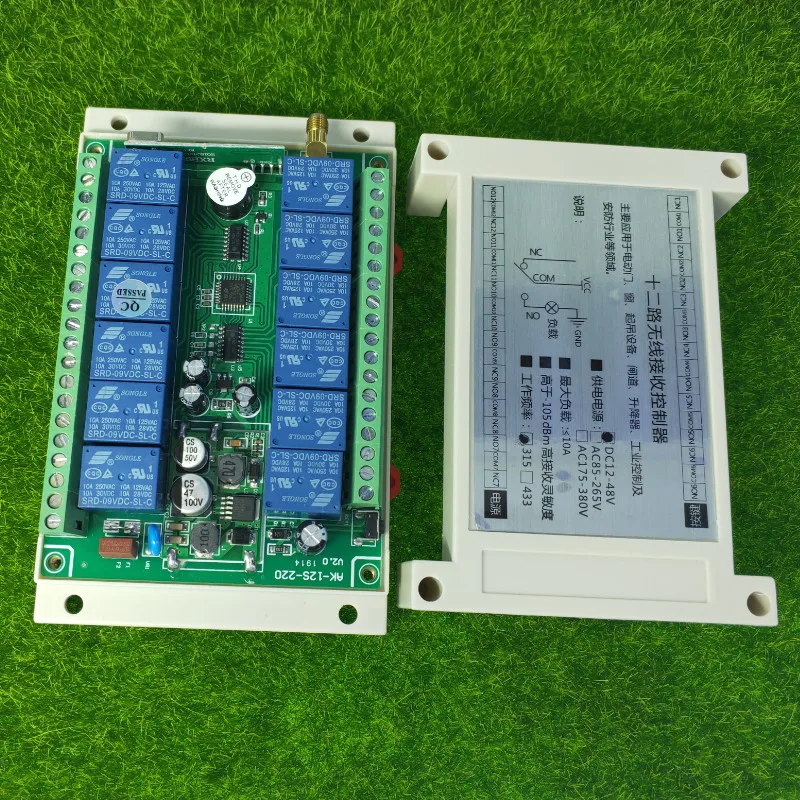

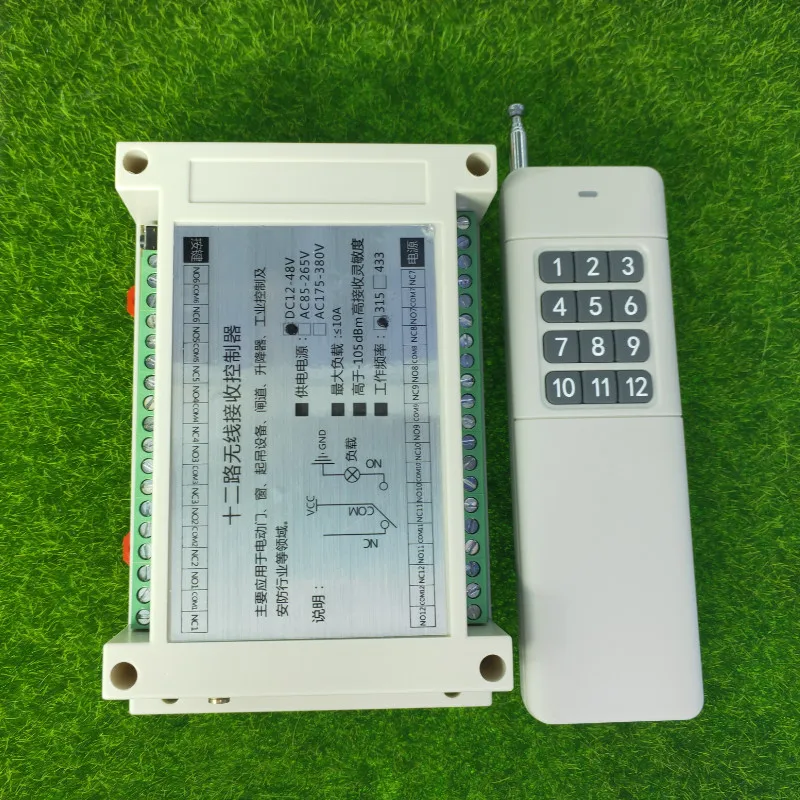

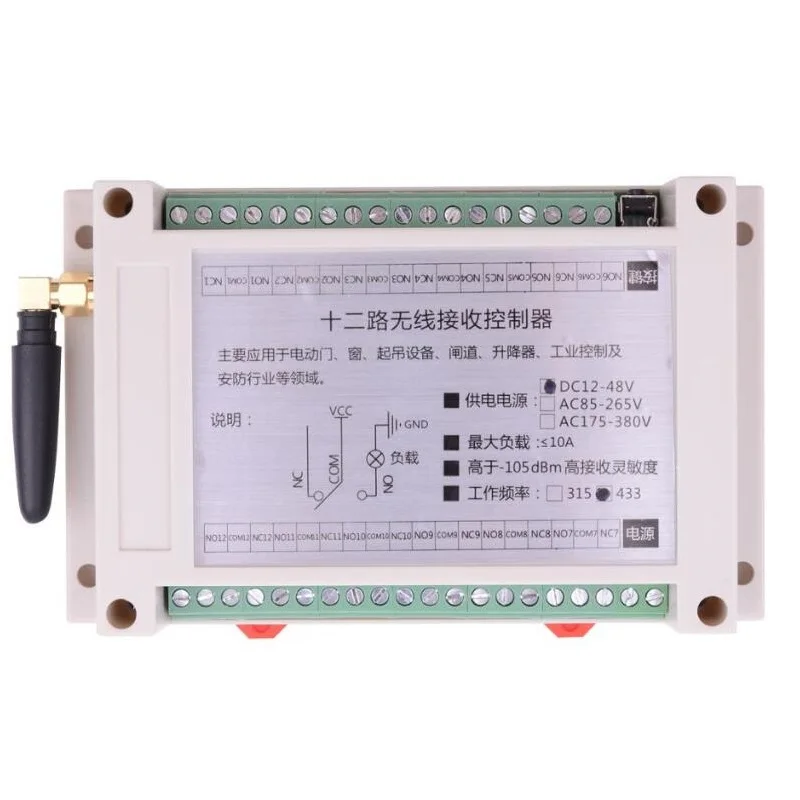

A:1* receiver(with cover)

    1*transmitter (with battery)

B:1* receiver(with cover)

C:1*transmitter (with battery)
