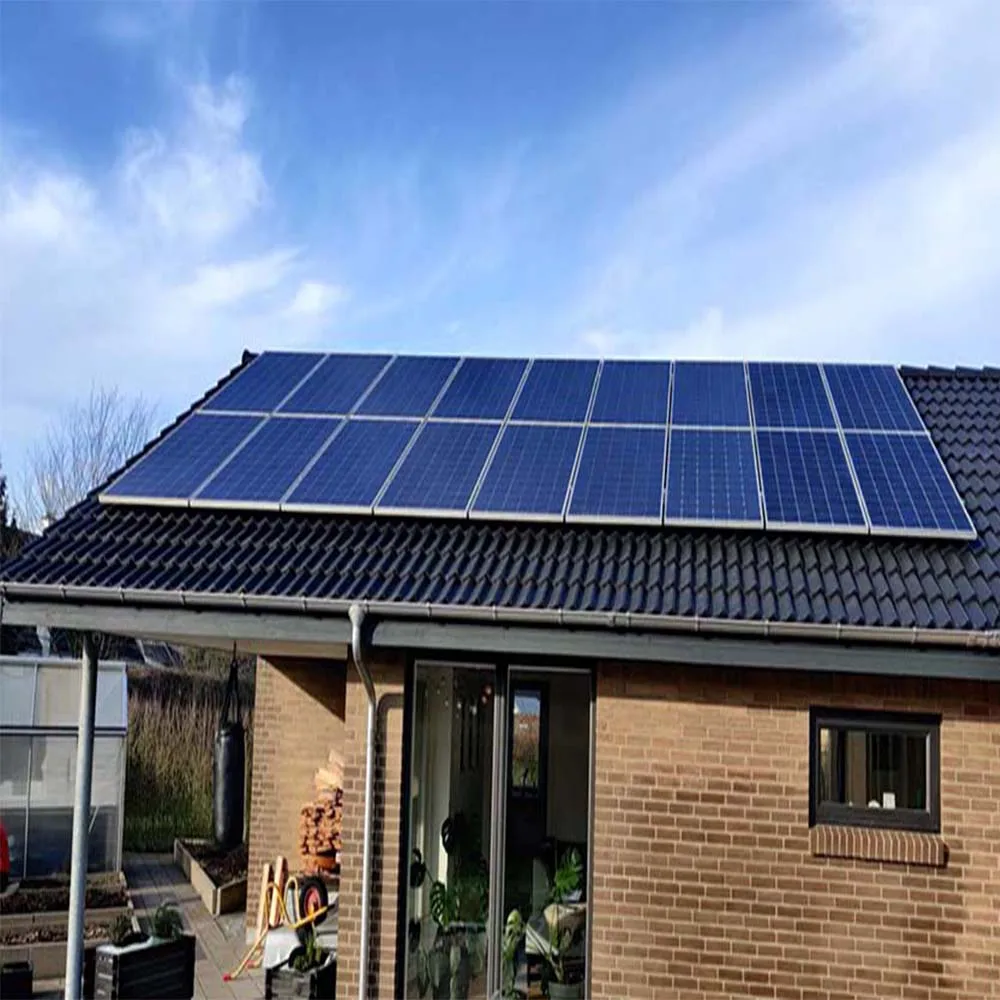

Solar System 9000w 9kw 220v Solar Panel 300w 30v Pure Sine Wave Inverter 9kw Cabinet Mount For Roof Grid Tie System Complete

The Complete System includes 1.Solar Panel 300W 20V 30Pcs 2. Solar Inverter Pure Sine Wave MPPT 220V 9KW 1 pc 3.Solar Panel Mount for system 9kw 1 pc 4.AC distribution cabinet 9kw 1pc 4.PV Cable 50M 5.MC4 Connector 30 pairs 6.Grounding Wire 30 pairs 7.installation and maintenance manual

Guarantee and After Sale Service

Warranty of whole solar system is 5 years, Solar panel's warranty is 10 years. Inverter -Oversea local service Engineer offers the installation and maintenance manual and technology support

Advantages of On grid Systems.

1. Save more money with net metering Your solar panels will often generate more electricity than what you are capable of consuming. With net metering, homeowners can put this excess electricity onto the utility grid instead of storing it themselves with batteries. 2. The utility grid is a virtual battery The electric power grid is in many ways also a battery, without the need for maintenance or replacements, and with much better efficiency rates. In other words, more electricity goes to waste with conventional battery systems.

What is the on grid system ?The Connecting Diagraph

Notice:the on grid system is without battery . The on grid system is connecting to the connected to the utility grid .The power can be used by your load or you can sell the power to the utility grid

What Capacity Should I Choose ? 1KW ,3KW ,5KW or 10KW ?

It is up to the size of house/villar roof .The 1KW makes up 8 Square Meter and 3KW is 20-24 Square Meter ,5KW is 35-40Square Meter and 10KW is 75-80 Square Meter

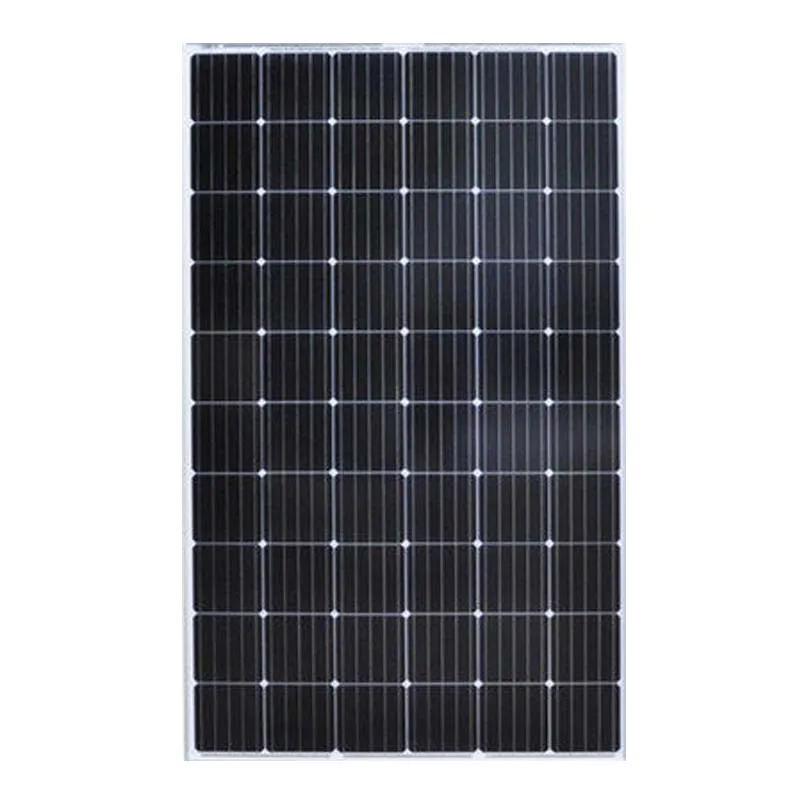

Solar Panel 300w Specification

Pmax :300W Size and Number of Cells:156mm*156mm 60Pcs / 6*10 Tolerance:± 3% Vmp:30V Imp :10A Voc:45V Isc :11A Max.Syst.Oper.Voltage:1000V Dioders:3 by-pass Dimension:1640mm*992mm*40mm Weight:16.3Kg Operate Temp.Scope:-40 degree t0 80 degree Relative Humidity:0 to 100% Resistances:227g steel ball falls down from 1m high and 60m/s wind speed Warranty:Pm is not less than 90% in 10 years and 80% in 25 years

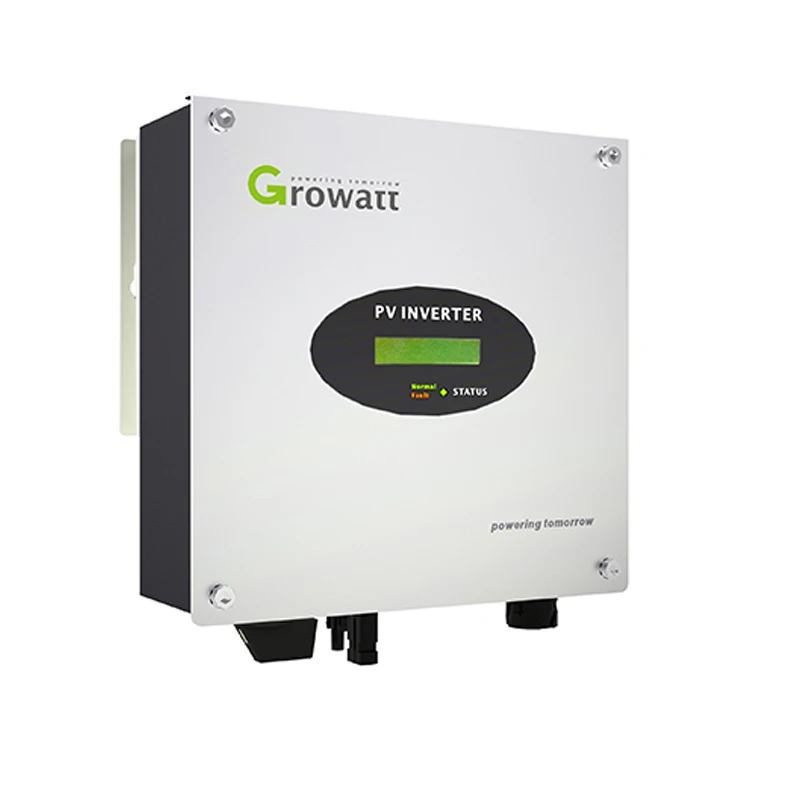

EU Standard Inverter 9KW With Wifi Module Specification

European weighted efficiency 96.5% Maximum efficiency 97.4% MPPT efficiency 97.3% Dimensions (width / height / thickness) mm 480/448/200 Weight 21.6kg Operating temperature range -25 ℃ ... + 60 ℃ Noise index (usually) ≤35dB (A) Maximum altitude below 3000m without derating Self-consumption at night ＜ 0.5W Topology No transformer Cooling method Natural cooling Protection grade IP65 Relative humidity 0 ~ 100%, no condensation Rated AC output power 10000W Maximum AC output power 11000VA Maximum AC output current 16.7A Rated output voltage / range 400V/340V-440V Grid frequency / range 50Hz/60Hz,±5Hz Power factor 0.8 lead—0.8 lag 0.8—0.8 THDi <3% AC connection type 3W+N+PE Application scenario Small and medium household roof Adopt multi-channel MPPT models, better adapt to different roof inclination, more power generation, more worry Easy to use Small size, light weight, easy installation and transportation Voice-controlled LCD design, simple operation and longer life IP65 protection grade, ultra-quiet design Efficient power generation MPPT efficiency is 99.5%, early start and late stop generating more power Input over-provision up to 120%, long-term overload up to 110% Safe and reliable Integrated DC input switch, multiple protection and fault monitoring Multiple monitoring methods are optional

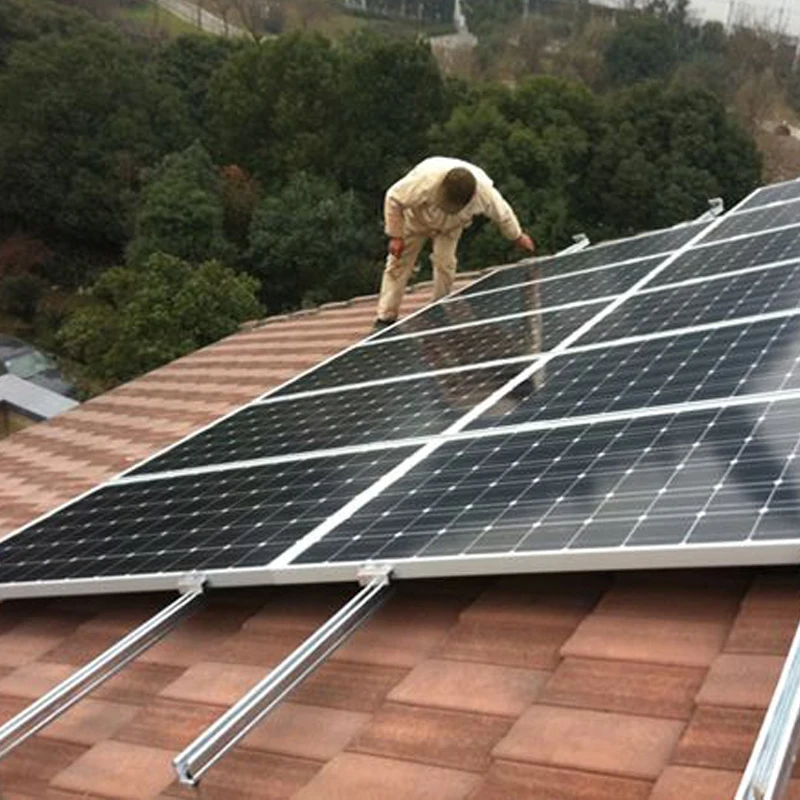

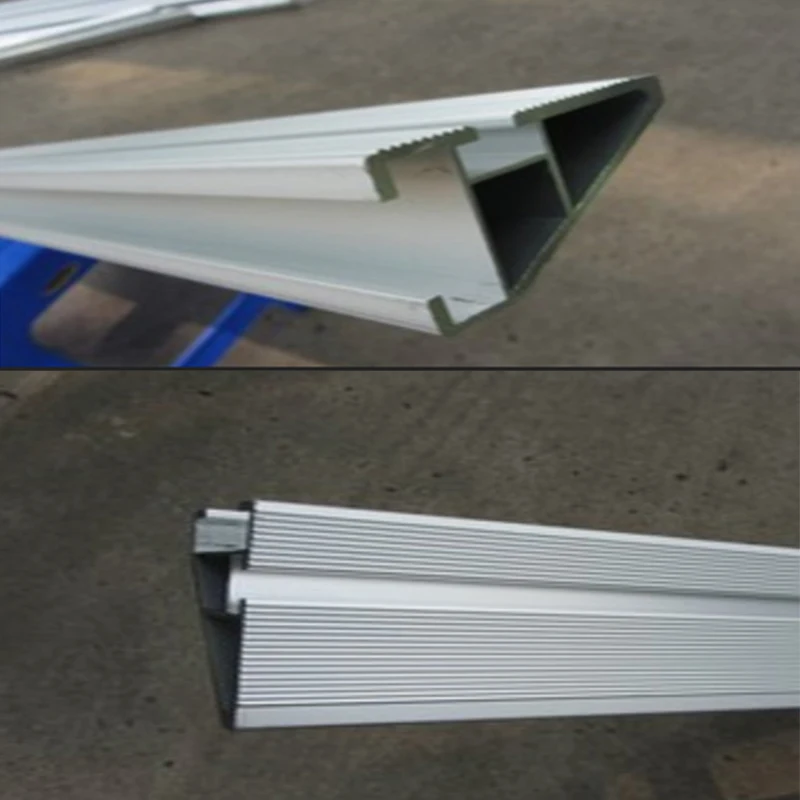

Solar Panel Mount /Support /Bracket -can resist hurrican

Suitable for Villa/House Roof Allunium ,Resistant to natural corrosion Solar panel mount introduction Made of high-quality aluminum and stainless steel, with good strength and high corrosion resistance. This product can be applied to a very harsh installation environment. For different tile architectures, the Singfo Solar PV mounting system is equipped with various barbs, making it widely applicable to the installation of various types of roofs, such as ceramic tiles, asphalt tiles, slate tiles and other types of tile roofs. Features Suitable for installing solar panels of any specifications The parts are made of high-quality aluminum and stainless steel, which ensures the high durability of the material and long service life. No damage to the roof's own waterproof system, maintenance-free, and strong wind resistance With flexible adjustment function, installation is simple and fast, saving labor costs and installation time, effectively reducing the difficulty of construction. The customized length can eliminate the need for on-site welding and cutting, thus ensuring high corrosion resistance, structural strength and aesthetics from the factory to the installation site Wide range of use, from small solar systems to large-scale solar systems are within the service range, the system can be optimized according to the actual roof system.

AC Distribution Cabinet-9kw 50hz

The function of the power distribution cabinet is to distribute electrical energy to each load location for power distribution control, and perform power outage maintenance when the circuit is short-circuited, overloaded, or leaked.

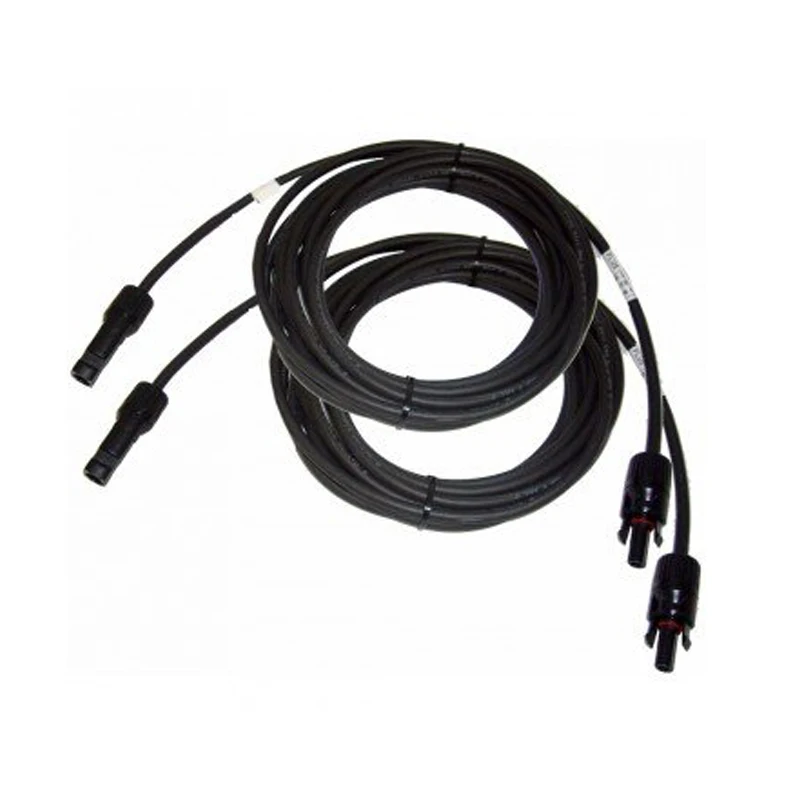

PV Cable -4MM2

From inverter to grid

Connector

Connector Between Solar Panels Female and Male

Grounding Wire

Ensure the normal operation of electrical equipment Ensure the safety of humans and animals Thunderproof

What is shipping method ?

It is sea transportation to destination port . When the buyer pay the order,the seller will find nearest port to buyer.and Await confirmation of buyer. When the sola panel is on board,the seller will send loading bill,commercial invoice and packing list to buyer's e-mail for customs clearance. When the solar panel reaches the port ,the buyer have to go to the port ,pay the destination port fee and tariff or duty and pick up the solar panel .

Which country enjoy duty-free service

The buyers in The Lao People's Democratic Republic,Philippines,Cambodia,Thailand, Malaysia and Vietnam can enjoy no-tax service by sea shipping .In other words,these buyers can pick up the solar panel in our warehouse of these countries and do not need to clear customs and pay the tax or duty .

Certificate-CE
