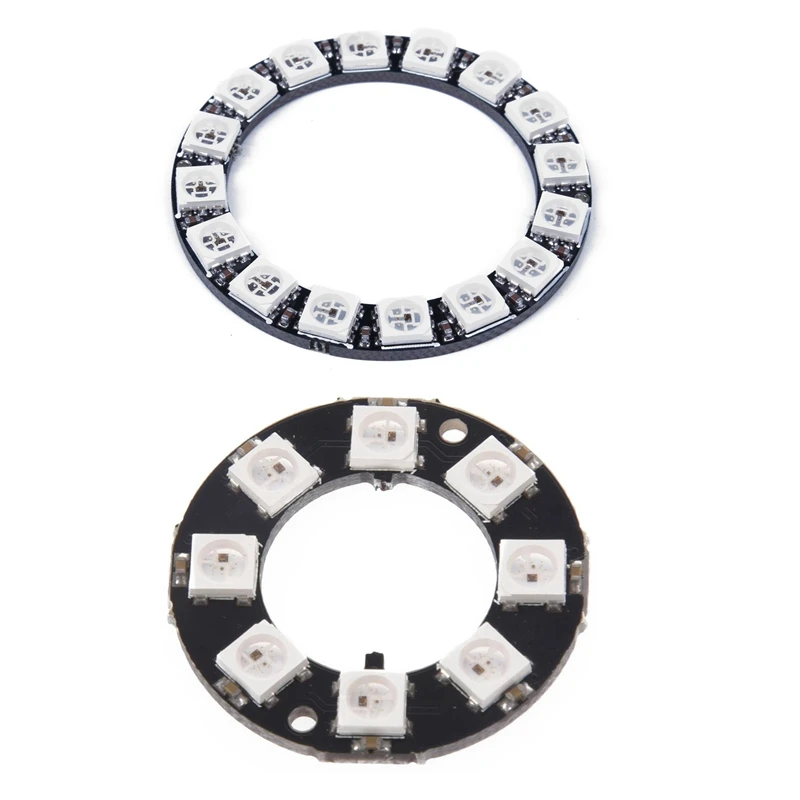

2 Pcs RGB LED Ring: 1 Pcs 16-Bit & 1 Pcs 8-Bit
Intelligent reverse polarity protection, power supply reverse polarity will not damage the IC.
IC control circuit and a power LED spot light utility. Control circuit chip with RGB components in a package in 5050, to form a complete external control pixels.
Built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
Built-in power-on reset and brown-out reset circuit.
Material:ABS
Data transmission speeds of up to 800Kbps.
Chip: WS2812 (built-in LED)
LED: 5050 RGB full color highlight package
16-Bit:
Colour:White
Light color:Red Blue Green
Model: 16 Round 5050 full-color LED module
Dimensions: Diameter 45mm
Voltage: 5V
Port: Digital
Platform: Arduino microcontroller
5050 highlight LED, built-in control chip, only an IO port to control multiple LED
Adjust brightness tricolor 256, 160,000-color TFT display, scanning frequency of not less than 400Hz / S
Serial even level interface, via a signal line to complete the reception and decoding of data
Refresh rate of 30 frames / sec, even low-level mode even series of not less than 512 points
Highlight LED, light color high brightness consistency

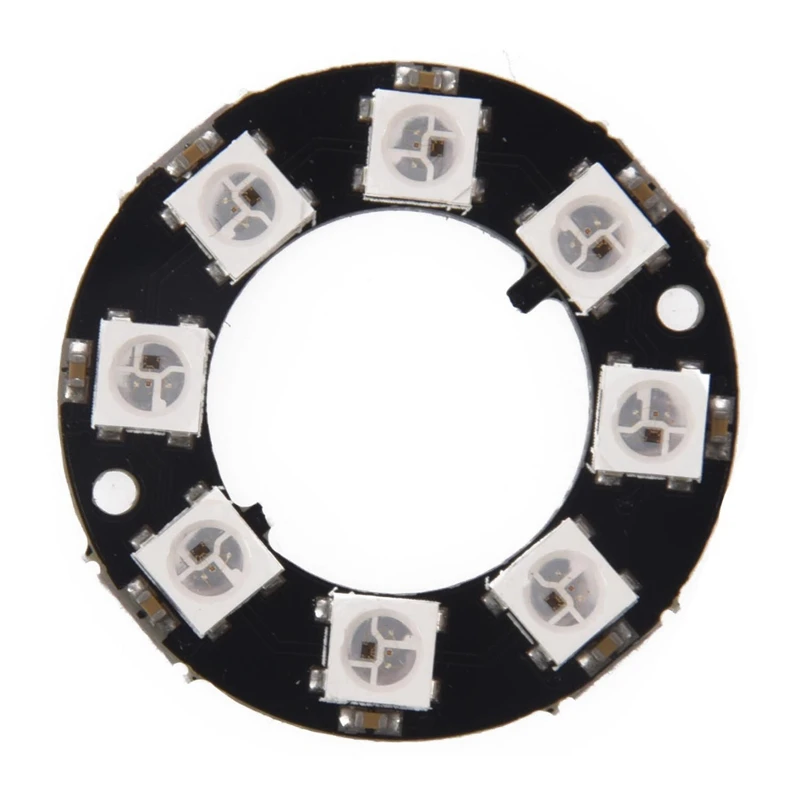

8-Bit:
Trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s.
Serial cascade interface, through a signal line to complete the receiving and decoding of data.
Transfer transmission distance between any two points in less than 5 meters without any additional circuitry.
When the refresh rate of 30 frames / sec, cascading number of not less than 1024 points.
Colour:black
size:Outer diameter 28mm, inner diameter 8mm
Package Contents:
2 * RGB LED Ring
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
