makerbase 3D Printer Accessories MKS GEN L V1.0 Motherboard + Smart 3.5 Inch WIFI Press Color Display Kit | Компьютеры и офис

---

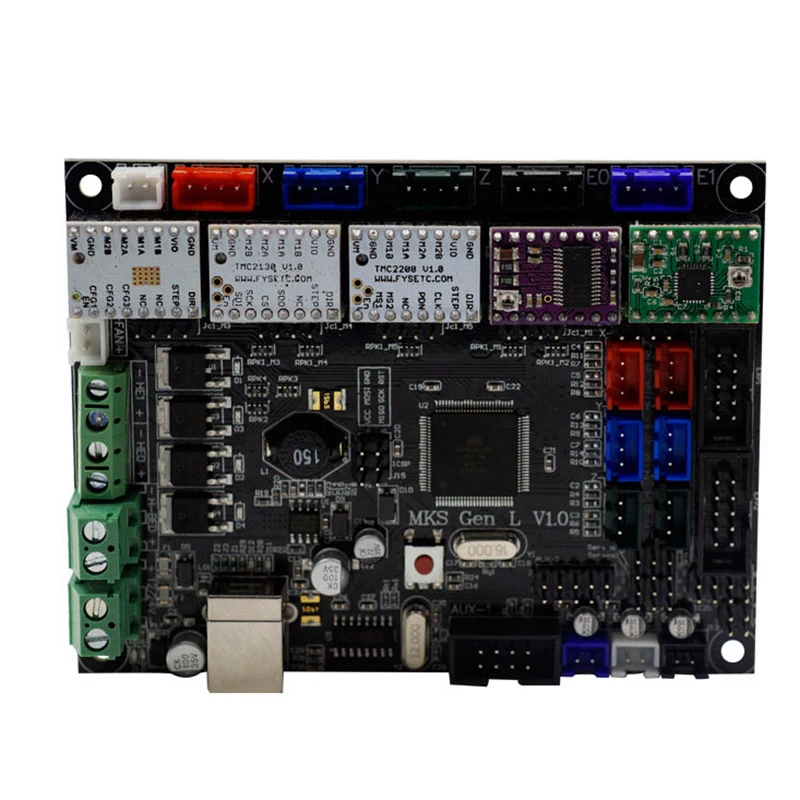

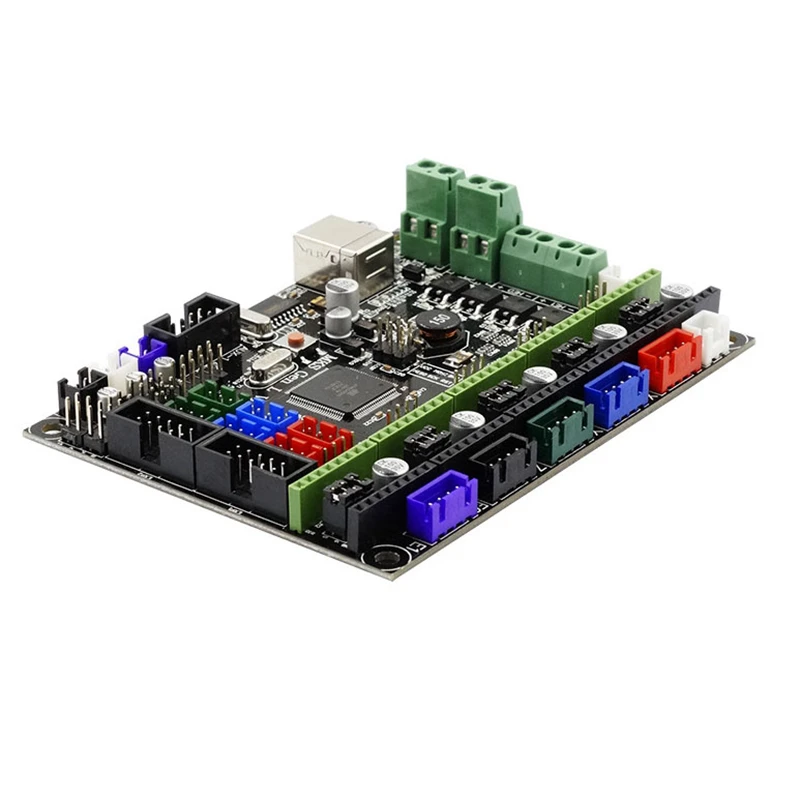

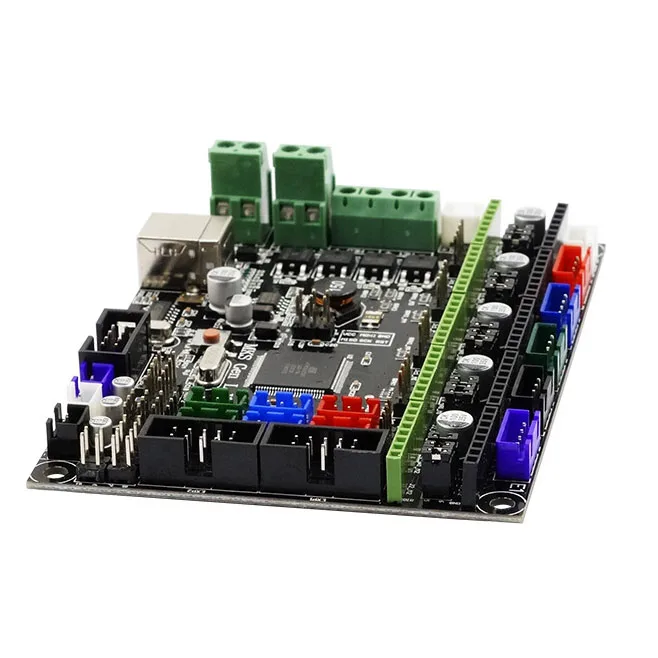

Features and advantages of MKS GEN L V1.0 motherboard:Combine 2560 and ramps1.4 on one board, which solves the problem of cumbersome and fault-prone Ramps1.4 combination interface.The user can replace the motor drive by himself, support 4988 drive, 8825 drive, TMC2100 drive
Reserve an external drive signal, which can be connected to a large drive to drive 57, 86 motors.Adopt high-quality MOSFET tube, the heat dissipation effect is better, guarantee the long-term work stability.A dedicated power chip is used to support 12V-24V power input to solve the problem of heating and insufficient power supply of the Ramps voltage conversion chip.
The stable and reliable filter circuit greatly reduces the possibility of interference, and avoids crashes and random running during printing as much as possible.Adopt CH340 serial port chip, reduce the cost under the premise of ensuring stability and reliability, and solve the problem that the previous 16U2 is difficult to install and drive.
It can accept 24V input. Under the same system power, the current of the hot bed can be reduced to 1/4, which effectively solves the heating problem of the MOS tube of the hot bed.Using the open source firmware Marlin, the configuration is exactly the same as ramps1.4, which can directly replace Ramps1.4.Can be directly connected to 2004LCD display and 12864LCD display, and can support TFT28, TFT32 Press screen.
The XYZ axis uses different colored terminals to correspond to the motor and limit switch, which is convenient for wiring.Humanized design, use different color terminals to distinguish the driving direction, reduce the probability of reverse insertion, and prevent damage to the motherboard due to reverse drive insertion.
Colour:Black
Material:PCB
Size:6*10cm
Package Contents:
1 * MKS GEN L V1.0 motherboard
1 * USB cable

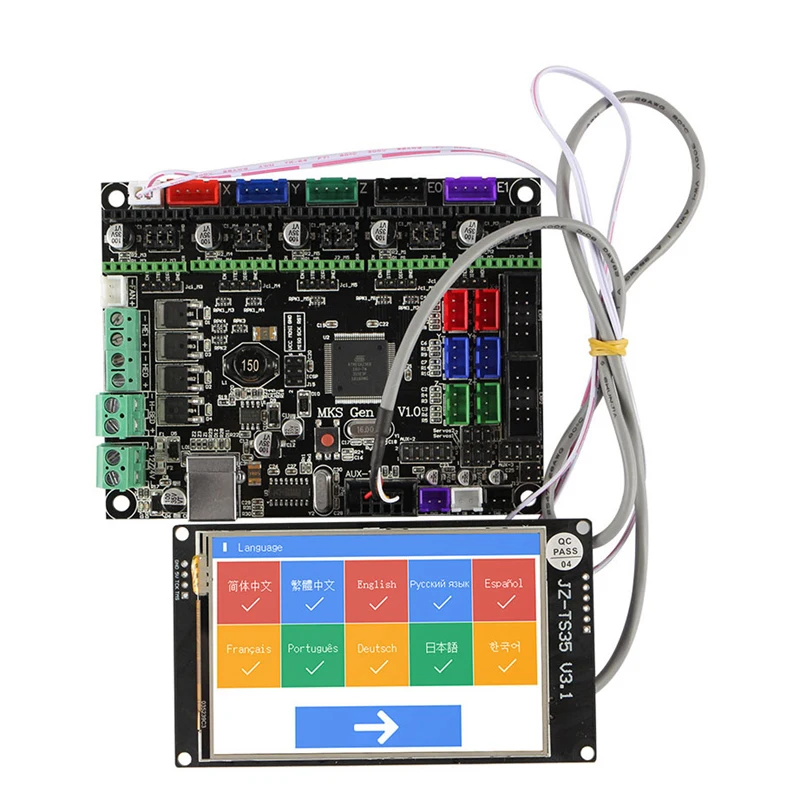

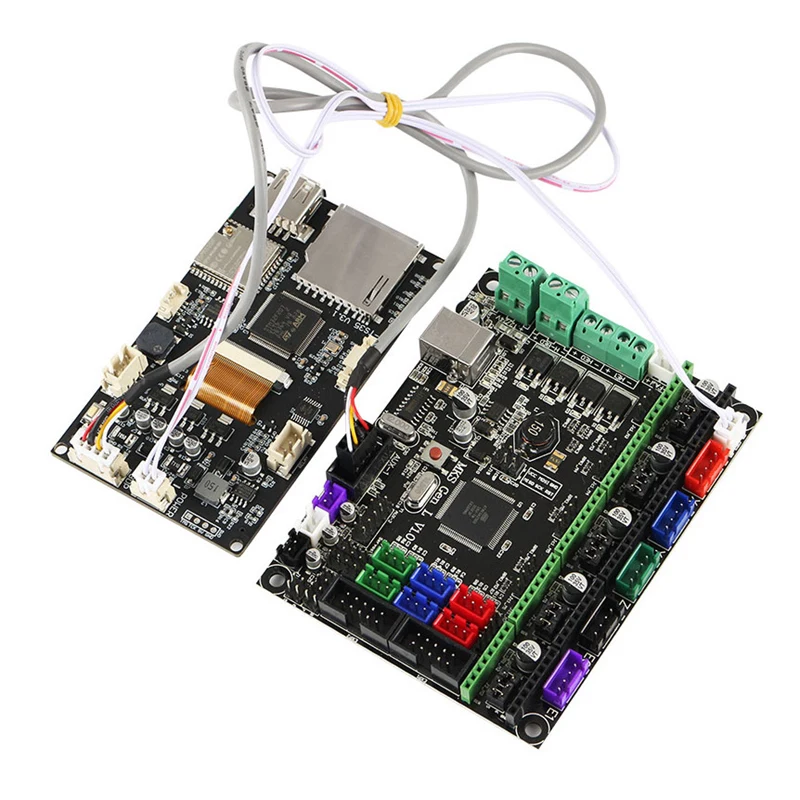

1 * 3.5 inch full color WiFi Press display
2 * flex cable
1 * WiFi cable
pay attention:
1. Please confirm whether the positive and negative are reversed before powering on!
2. Please do not plug and unplug the motor and drive when it is powered on, which may easily cause the drive to burn out; and do not adjust the current while the motor is running. The correct approach is to first disconnect the power supply, unplug the motor, and then power on again, adjust the potentiometer, measure the voltage on the potentiometer until the measured voltage is the same as expected. Do not plug in the reverse drive, otherwise the drive will be burned, or even the motherboard!
If the power supply is reversed, the reverse connection of the motor drive board may burn the chip and the circuit. Please double check and then power on
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
