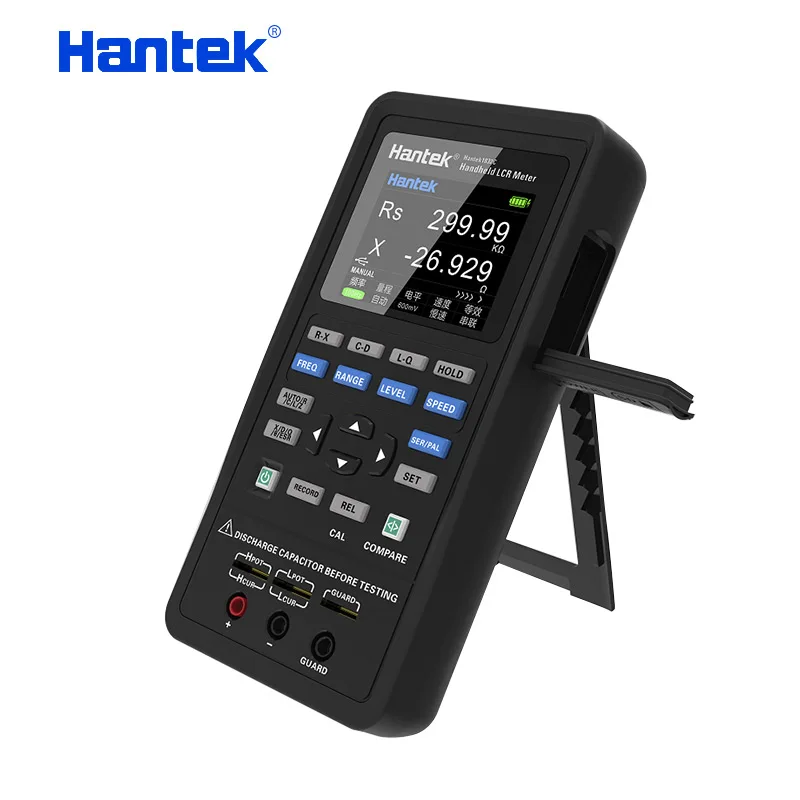

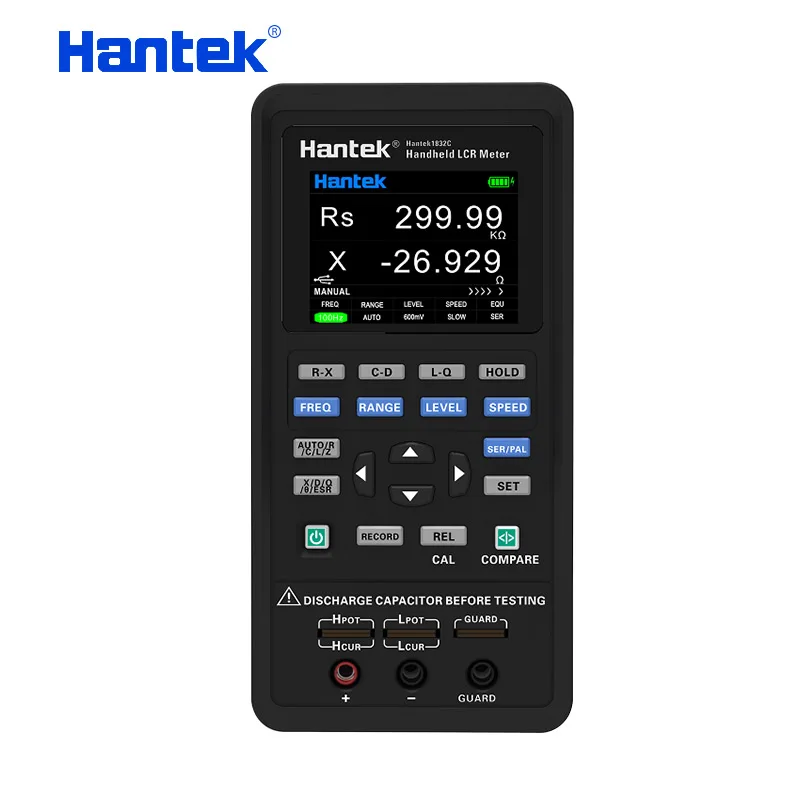

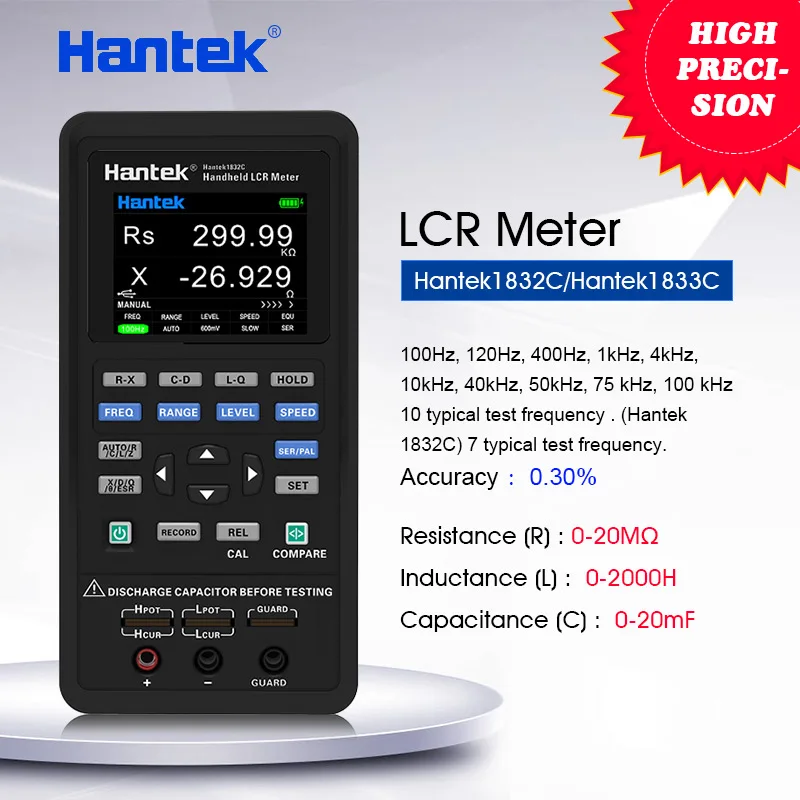

Hantek1832C/Hantek1833C Digital LCR Meter Portable Handeld Inductance Capacitance Resistance Measurement Tester Tools
Hantek1832C/Hantek1833C handheld LCR Meter is a portable handheld measuring instrument to measure the parameters of the component such as inductance, capacitance, resistance and so on. small volume, powered by 5V lithium battery, it can meet the requirements of desktop LCR application, and can also be applied to flow measurement and handheld measurement.
1.100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz 10 typical test frequency (Hantek1832C) 7 typical test frequency
2.2.8 inch TFT LCD, Switch between Chinese and English
3.HD display, dual display of measurement data, the result is clear
4.Support data record analysis
5.Support PC upper computer, easy to control and measure remotely
6.Test lead: 3 terminal/5 terminal switch
7.Measuring speed: high speed/intermediate speed/low speed switch
8.Range: support manual/auto switch, easy to do quick measurement
9.LCR adopted rechargeable design, Large capacity lithium battery, super standby
10.Double shock protection sleeve, all-round protection, shakeproof, fall-arrest, protect
11.the machine from damage, longer use time, more comfortable measurement
12.Bracket design, easy to put and measure
LCR high precision test instrument:
| Model | Hantek1832C | Hantek1833C | ||
| Test frequency | 100Hz、120Hz、400Hz、1kHz、4kHz、10kHz、 40kHz | 100Hz、120Hz、400Hz、1kHz、4kHz、10kH z、40kHz、50kHz、75kHz、100kHz | ||
| Accuracy | 0.30% | |||
| Equivalent Circuit | series、parallel | |||
| Test level | 0.6Vrms | 0.6Vrms、0.3Vrms | ||
| Measurement way | manual、auto | |||
| Display screen | 2.8 inch TFT LCD | |||
| Measurement parameters | principle parameter：L/C/R/Z deputy parameter：X/D/Q/θ/ESR | |||
| Principle parameter | L/C/R/Z | |||
| Deputy parameter | X/D/Q/θ/ESR | |||
| Measurement range | （L)0-2000H | |||
| Measurement range | （C)0-20mF | |||
| Measurement range | （R)0-20MΩ | |||
| Measurement speed | high speed（4 times/s）、intermediate speed（twice/s）、low speed（once/s） | |||
| Reset function | open circuit calibration、short-circuit calibration | |||
| Test end configuration | 3 end、5 end | |||

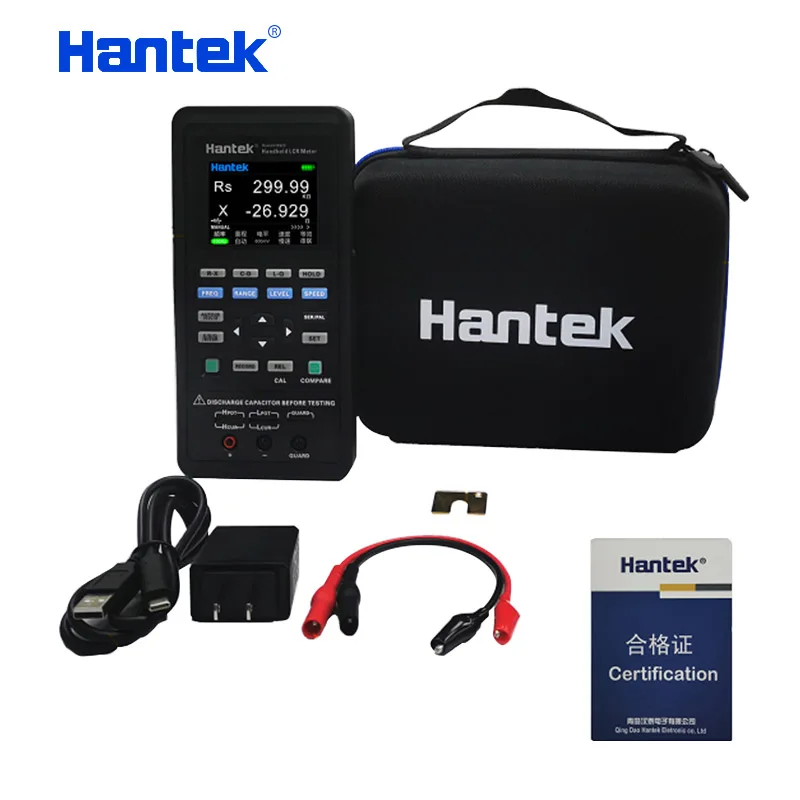

| General feature | standard with 1、Type-C data cable；2、power adapte；3、short circuit card；4、red and black rubber plug；5、large capacity lithium battery | |||
| Capacitance C and dissipationD | ||||
| 100Hz/120Hz | ||||
| Range | Display range | Accuracy Ce | Accuracy De | Recommended equivalent mode |
| 20mF | 4.000mF～20.000mF | 8.00%+5 digits | 0.08 | series |
| 4mF | 400.0μF～3.9999mF | 2.00%+3 digits | 0.02 | series |
| 400μF | 40.00μF～399.99μF | 0.60%+2 digits | 0.006 | series |
| 40μF | 4.000μF～39.999μF | 0.40%+2 digits | 0.004 | series |
| 4μF | 400.0nF～3.9999μF | 0.40%+2 digits | 0.004 | ---- |
| 400nF | 40.00nF～399.99nF | 0.4%+2 digits | 0.004 | parallel |
| 40nF | 4.000nF～39.999nF | 0.5%+3 digits | 0.005 | parallel |
| 4nF | 0pF～3.999nF | 1.5%+5 digits | ------ | parallel |
| 1KHz | ||||
| Range | Display range | Accuracy Ce | Accuracy De | Recommended equivalent mode |
| 1000uF | 400.0uF～999.9uF | 3.00%+5 digits | 0.03 | series |
| 400μF | 40.00μF～399.99μF | 1.50%+3 digits | 0.015 | series |
| 40μF | 4.000μF～39.999μF | 0.60%+2 digits | 0.006 | series |
| 4μF | 400.0nF～3.9999μF | 0.40%+2 digits | 0.004 | ---- |
| 400nF | 40.00nF～399.99nF | 0.4%+2 digits | 0.004 | parallel |
| 40nF | 4.000nF～39.999nF | 0.6%+3 digits | 0.006 | parallel |
| 4nF | 400.0pF～3.9999nF | 0.6%+3 digits | 0.006 | parallel |
| 400pF | 0.0pF~399.9pF | 3%+5 digits | ------ | |
| 10KHz | ||||
| Range | Display range | Accuracy Ce | Accuracy De | Recommended equivalent mode |
| 100μF | 40.00μF～100.00μF | 4.00%+5 digits | 0.04 | series |
| 40μF | 4.000μF～39.999μF | 2.0%+3 digits | 0.02 | series |
| 4μF | 400.0nF～3.9999μF | 0.60%+2 digits | 0.006 | series |
| 400nF | 40.00nF～399.99nF | 0.4%+2 digits | 0.004 | series |
| 40nF | 4.000nF～39.999nF | 0.4%+2 digits | 0.004 | ------ |
| 4nF | 400.0pF～3.9999nF | 0.4%+2 digits | 0.004 | parallel |
| 400pF | 40.00pF~399.99pF | 0.6%+3 digits | 0.006 | parallel |
| 40pF | 0.00pF~39.99pF | 2.5%+5 digits | ------ | parallel |
| 40KHz | ||||
| Range | Display range | Accuracy Ce | Accuracy De | Recommended equivalent mode |
| 100μF | 40.00μF～100.00μF | 6.00%+5 digits | 0.06 | series |
| 40μF | 4.000μF～39.999μF | 4.0%+3 digits | 0.04 | series |
| 4μF | 400.0nF～3.9999μF | 1.0%+2 digits | 0.01 | series |
| 400nF | 40.00nF～399.99nF | 0.6%+2 digits | 0.006 | series |
| 40nF | 4.000nF～39.999nF | 0.6%+2 digits | 0.006 | ------ |
| 4nF | 400.0pF～3.9999nF | 0.6%+2 digits | 0.006 | parallel |
| 400pF | 40.00pF~399.99pF | 1%+3 digits | 0.01 | parallel |
| 40pF | 0.000pF~39.999pF | 3%+5 digits | ------ | parallel |
| 100KHz | ||||
| Range | Display range | Accuracy Ce | Accuracy De | Recommended equivalent mode |
| 10μF | 4.000μF～10.000μF | 8.0%+20 digits | 0.08 | series |
| 4μF | 400.0nF～3.9999μF | 5.0%+10 digits | 0.05 | series |
| 400nF | 40.00nF～399.99nF | 1.5%+5 digits | 0.015 | series |
| 40nF | 4.000nF～39.999nF | 1%+2 digits | 0.01 | series |
| 4nF | 400.0pF～3.999nF | 1%+2 digits | 0.01 | ------ |
| 400pF | 40.00pF~399.99pF | 1.5%+2 digits | 0.015 | parallel |
| 40pF | 4.000pF~39.999pF | 2%+5 digits | 0.02 | parallel |
| 4pF | 0.000pF~3.999pF | 5%+10 digits | ------ | parallel |
| Inductance L and quality factor | ||||
| 100Hz/120Hz | ||||
| Range | Display range | Accuracy Le | Accuracy De* | Recommended equivalent mode |
| 1000H | 400.0H～999.9H | 2.00%+3 digits | 0.02 | parallel |
| 400H | 40.000H～399.99H | 0.60%+2 digits | 0.006 | parallel |
| 40H | 4.000H～39.999H | 0.40%+2 digits | 0.004 | parallel |
| 4H | 400.0mH～3.9999H | 0.40%+2 digits | 0.004 | ---- |
| 400mH | 40.00mH～399.99mH | 0.4%+2 digits | 0.004 | series |
| 40mH | 4.000mH～39.999mH | 0.6%+3 digits | 0.006 | series |
| 4mH | 0uH～3.999mH | 3.0%+5 digits | ------ | series |
| 1kHz | ||||
| Range | Display range | Accuracy Le | Accuracy De* | Recommended equivalent mode |
| 1H | 400.0mH～999.9mH | 1.50%+3 digits | 0.015 | parallel |
| 400mH | 40.00mH～399.99mH | 0.4%+2 digits | 0.004 | parallel |
| 40mH | 4.000mH～39.999mH | 0.4%+2 digits | 0.004 | ------ |
| 4mH | 400.0uH～3.9999mH | 0.4%+2 digits | 0.004 | series |
| 400uH | 40.00uH~399.99uH | 0.8%+3 digits | 0.008 | series |
| 40uH | 0.00uH~39.99uH | 3.0%+5 digits | ------ | series |
| 10kHz | ||||
| Range | Display range | Accuracy Le | Accuracy De* | Recommended equivalent mode |
| 100H | 40.00H～100.00H | 2.0%+3 digits | 0.02 | parallel |
| 40H | 4.000H～39.999H | 0.60%+2 digits | 0.006 | parallel |
| 4H | 400.0mH～3.9999H | 0.40%+2 digits | 0.004 | parallel |
| 400mH | 40.00mH～399.99mH | 0.4%+2 digits | 0.004 | ------ |
| 40mH | 4.000mH～39.999mH | 0.4%+2 digits | 0.004 | series |
| 4mH | 400.0uH～3.9999mH | 1%+3 digits | 0.01 | series |
| 400uH | 0.0uH~399.9uH | 3.0%+5 digits | ------ | series |
| 40kHz | ||||
| Range | Display range | Accuracy Le | Accuracy De* | Recommended equivalent mode |
| 1H | 400.0mH～999.9mH | 2.0%+4 digits | 0.02 | parallel |
| 400mH | 40.00mH～399.99mH | 0.8%+2 digits | 0.008 | parallel |
| 40mH | 4.000mH～39.999mH | 0.8%+2 digits | 0.008 | ------ |
| 4mH | 400.0uH～3.9999mH | 0.8%+2 digits | 0.008 | series |
| 400uH | 40.00uH~399.99uH | 1.5%+3 digits | 0.015 | series |
| 40uH | 0.000uH~39.999uH | 4.0%+5 digits | ------ | series |
| 100kHz | ||||
| Range | Display range | Accuracy Le | Accuracy De | Recommended equivalent mode |
| 100mH | 40.00mH～399.99mH | 2.5%+2 digits | 0.025 | parallel |
| 40mH | 4.000mH～39.999mH | 1.5%+2 digits | 0.015 | parallel |
| 4mH | 400.0uH～3.9999mH | 1.0%+2 digits | 0.01 | ------ |
| 400uH | 40.00uH~399.99uH | 1.0%+2 digits | 0.01 | series |
| 40uH | 4.000uH~39.999uH | 1.5%+5 digits | 0.015 | series |
| 4uH | 0.000uH~3.999uH | 4%+10 digits | ------ | series |
| Impedance Z and phase angle | ||||
| 100Hz、120Hz、1kHz、10kHz | ||||
| Range | Display range | Accuracy Ze | Accuracy | Recommended equivalent mode |
| 20MΩ | 4.000MΩ~20.000MΩ | 3.0%+10 digits | 3.4° | parallel |
| 4MΩ | 400.0kΩ~3.9999MΩ | 1.2%+3 digits | 0.7° | parallel |
| 400kΩ | 40.00kΩ~399.99kΩ | 0.3%+3 digits | 0.2° | parallel |
| 40kΩ | 4.000kΩ~39.999kΩ | 0.25%+2 digits | 0.1° | ------ |
| 4kΩ | 400.0Ω~3.9999kΩ | 0.25%+2 digits | 0.1° | series |
| 400Ω | 40.00Ω~399.99Ω | 0.25%+2 digits | 0.1° | series |
| 40Ω | 4.000Ω~39.999Ω | 0.5%+3 digits | 0.3° | series |
| 4Ω | 0.4000Ω~3.9999Ω | 2.0%+3 digits | 1.1° | series |
| 0.4Ω | 0.0000Ω~0.3999Ω | 4.0%+3 digits | ------ | series |
| 40kHz | ||||
| Range | Display range | Accuracy Ze | Accuracy | Recommended equivalent mode |
| 20MΩ | 4.000MΩ~20.000MΩ | 7.0%+41 digits | 4.0° | parallel |
| 4MΩ | 400.0kΩ~3.9999MΩ | 2.5%+3 digits | 1.4° | parallel |
| 400kΩ | 40.00kΩ~399.99kΩ | 1.0%+4 digits | 0.6° | parallel |
| 40kΩ | 4.000kΩ~39.999kΩ | 1.0%+4 digits | 0.6° | ------ |
| 4kΩ | 400.0Ω~3.9999kΩ | 0.5%+3 digits | 0.3° | series |
| 400Ω | 40.00Ω~399.99Ω | 0.5%+3 digits | 0.3° | series |
| 40Ω | 4.000Ω~39.999Ω | 0.7%+4 digits | 0.4° | series |
| 4Ω | 0.4000Ω~3.9999Ω | 2.0%+6 digits | 1.1° | series |
| 0.4Ω | 0.0000Ω~0.3999Ω | 5.0%+10 digits | ------ | series |
| 100kHz | ||||
| Range | Display range | Accuracy Ze | Accuracy | Recommended equivalent mode |
| 20MΩ | 4.000MΩ~20.000MΩ | 9.0%+20 digits | 5.2° | parallel |
| 4MΩ | 400.0kΩ~3.9999MΩ | 4.0%+10 digits | 2.3° | parallel |
| 400kΩ | 40.00kΩ~399.99kΩ | 1.5%+4 digits | 0.9° | parallel |
| 40kΩ | 4.000kΩ~39.999kΩ | 1.0%+2 digits | 0.6° | parallel |
| 4kΩ | 400.0Ω~3.9999kΩ | 0.7%+2 digits | 0.4° | ------ |
| 400Ω | 40.00Ω~399.99Ω | 0.7%+2 digits | 0.4° | series |
| 40Ω | 4.000Ω~39.999Ω | 1.0%+5 digits | 0.6° | series |
| 4Ω | 0.4000Ω~3.9999Ω | 3.0%+10 digits | 1.7° | series |
| 0.4Ω | 0.0000Ω~0.3999Ω | 7%+20 digits | ------ | series |
