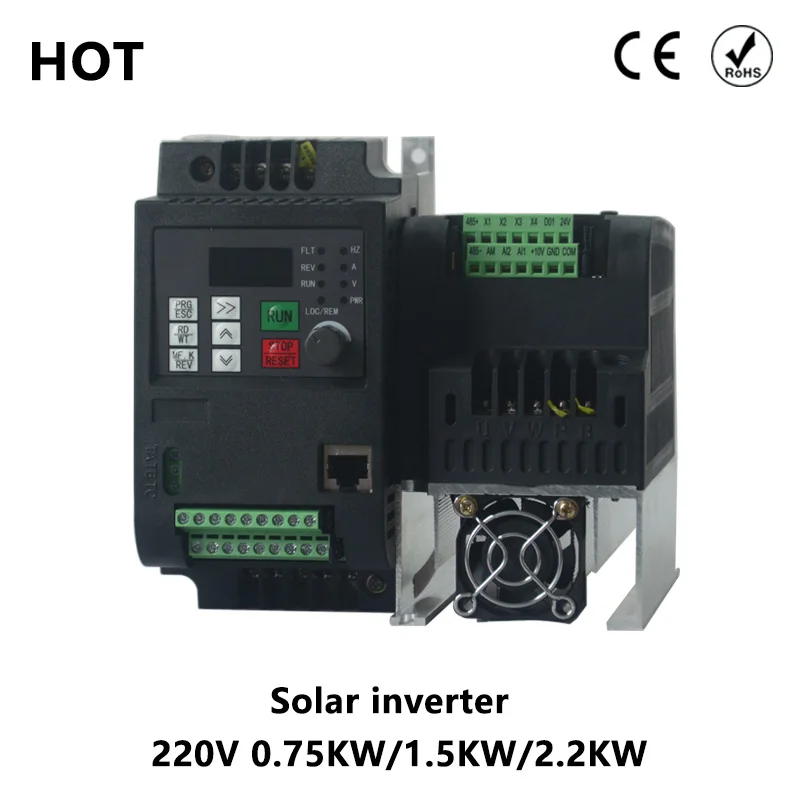

Преобразователь частоты VFD солнечный 1.5КВт/2.2КВт DC 220-380В вход и 220В 3Ф выход с бесплатной доставкой.

Type selection instructions:

A. If you need detailed version of product manual, you can contact us to send it to you free of charge.

B. If there is no paper product manual in the packing case, it is because of product changes or upgrades.

Please contact us for the latest and accurate electronic product manual.

wiring diagram 220V 0.75KW-2.2KW

wiring diagram 220V 4KW

wiring diagram 220V 5.5KW-7.5KW

SCHEMATIC DIAGRAM

wiring diagram

Set the parameters p0-20=20, P1-00=3 or 4, single-phase motor mode,

output V, W to connect to a single-phase 220V motor.

Solar panel configuration recommendations:

220V solar inverter input DC 320V-350V, the best working voltage DC320V,

380V solar inverter input DC 540V-580V, the best working voltage DC540V,

The total power of the solar panel is 1.5 times the power of the motor.

WHY DO YOU CHOOSE US?

I. Products and Technology

• Built-in MPPT controller：

MPPT: full name "Maximum Power Point Tracking". It can detect the generation voltage of solar panels in real time, and track the maximum voltage and current value (VI), so that the system can output the driving load with the maximum power and apply it to solar photovoltaic system to coordinate the work between solar panels and loads. It's the brain of photovoltaic systems.

• Supporting Wide Voltage Input;

A, 220V photovoltaic converter corresponding input voltage below 280V will jump low-voltage alarm shutdown, 380V above automatically suppress voltage rise, avoid overlooking overvoltage shutdown;

B, 380V photovoltaic converter corresponding input voltage below 380V will jump low-voltage alarm shutdown, 700V above automatically suppress voltage rise, avoid overlooking overvoltage shutdown.

C, When the input voltage of the solar inverter is too low or too high, the inverter stops working, and resumes work after the input voltage returns to normal, realizing unattended operation in the true sense.

D. The output frequency of the solar inverter is adjusted according to the input DC voltage.

When the voltage is low, the frequency is reduced to reduce the power loss,

so that the motor continues to work at a low speed,

and the output frequency changes after the voltage is restored.

This function has a significant effect on rainy weather or cloudy weather

• Support unattended automatic start and stop.

In the morning, when the illumination intensity rises to a certain extent, the input voltage reaches about 380 V (220 V photovoltaic converter reaches about 280 V), and the photovoltaic converter automatically starts driving load operation without manual operation.

In the evening, when the illumination intensity decreases to a certain extent, the input voltage drops to about 380 V (220 V photovoltaic converter reaches about 280 V), and the photovoltaic converter automatically stops driving the load without manual operation.

• Our products can provide motor protection function.

Such as Short-circuit, phase-absence, over-current, over-voltage, under-voltage, over-heat, over-load protection, etc.

• Details of our products.

1. 5-digit tube display

2. High quality Components

3. DC Heat Dissipating Fan

4. Isolated aluminium heat dissipation base

• Our product technology

A. Terminal wiring diagram of our products

B. Technical specification for our products

II. Company and Services

• Strict production management

5S Management, Standardized Production and Strict Testing

• Honors of our company

1. Core Patent Technology

2. Formal Production Enterprises

3. CE Certification of EU

4. Shenzhen High-tech Enterprises
