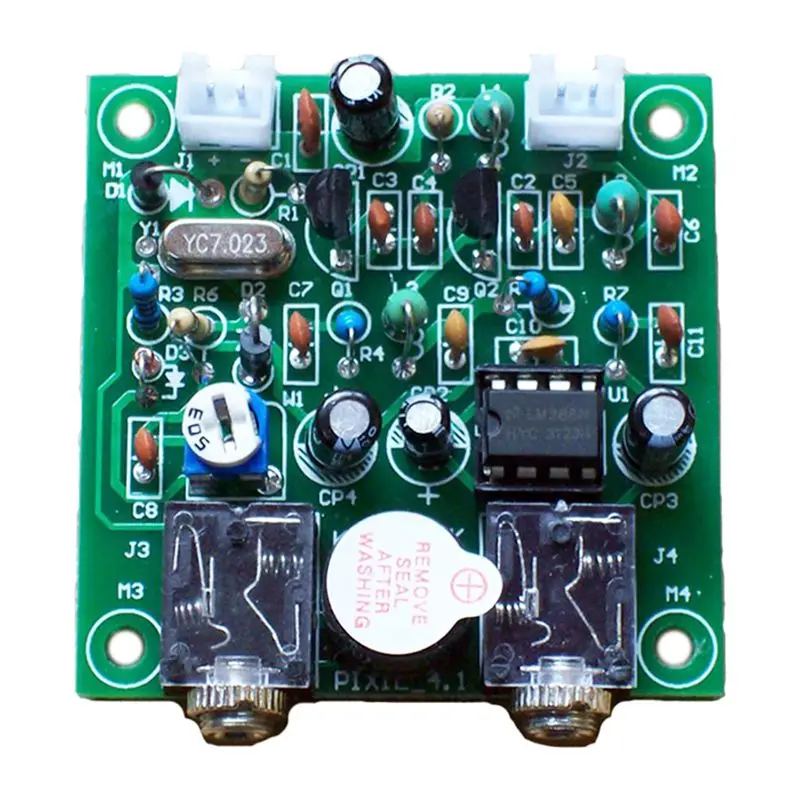

This kit is a classic low-power transceivers.
The reception is good, highly readable code.
This is a very small volume of simple 40 meter band micro-power amplitude telegraph transceiver uses a 9V square Battery powered.
the entry of the most junior amateur radio choice.
Beautiful metal case not only for item considerably, and can effectively shield nearby interference.
Material: metal
Color: green
Technical parameters:
Power supply: DC 9V-14V
Antenna: 50 ohm, unbalanced
Receive quiescent current: 10mA @ 9V
Transmit power: 0.8W @ 9V, 1.2W @ 12V
Frequency range: launch 7.023MHz, receive 7.023-7.026MHz (7.023MHz crystal)
Mode: CW
Recommendations:
The confidential achieve better results, set the antenna performance can not be less than the full length of the horizontal half-wave dipole antenna, in conjunction with the use of Simple Barron, antennas should be kept away from sources of interference, such as fluorescent lights, computer monitors, switching power supplies and other equipment as much as possible with the coaxial cable as feeders to reduce possible interference received, as a small selection of the broadcast interference morning or late at night listening to get the best results listen to SSB and CW signals signal.

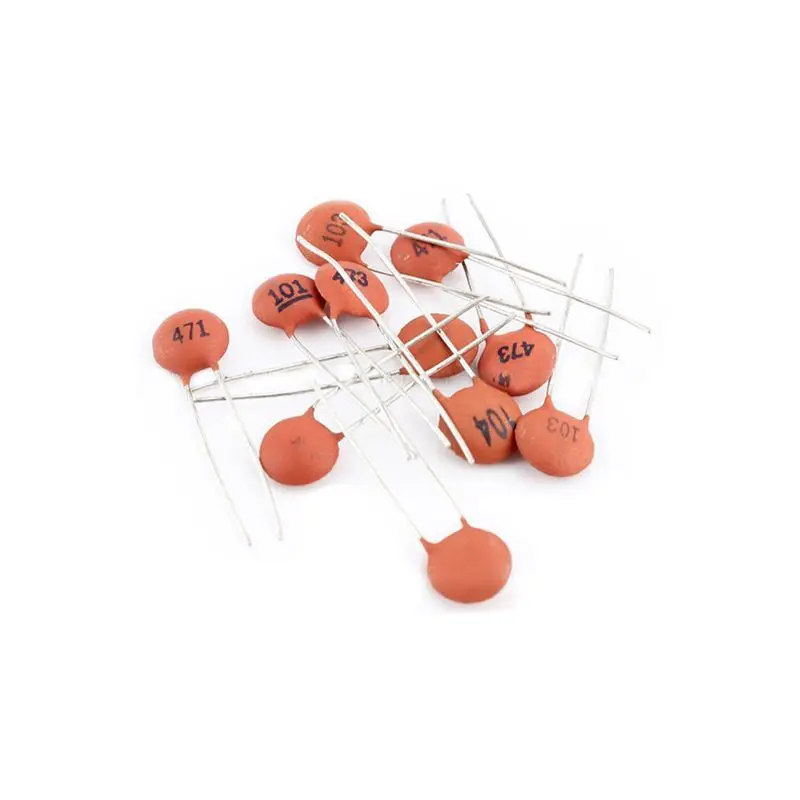

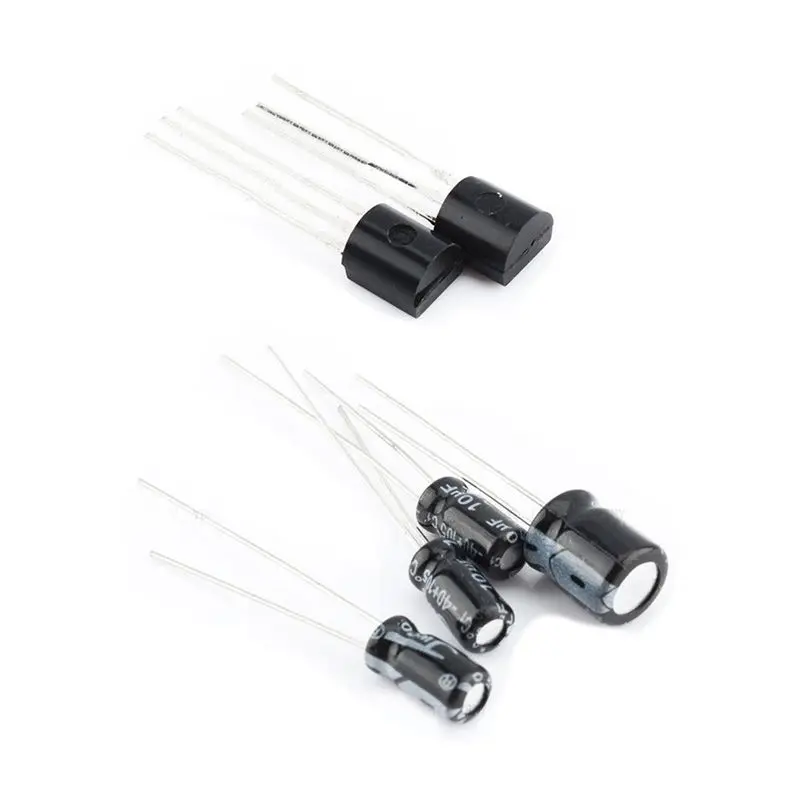

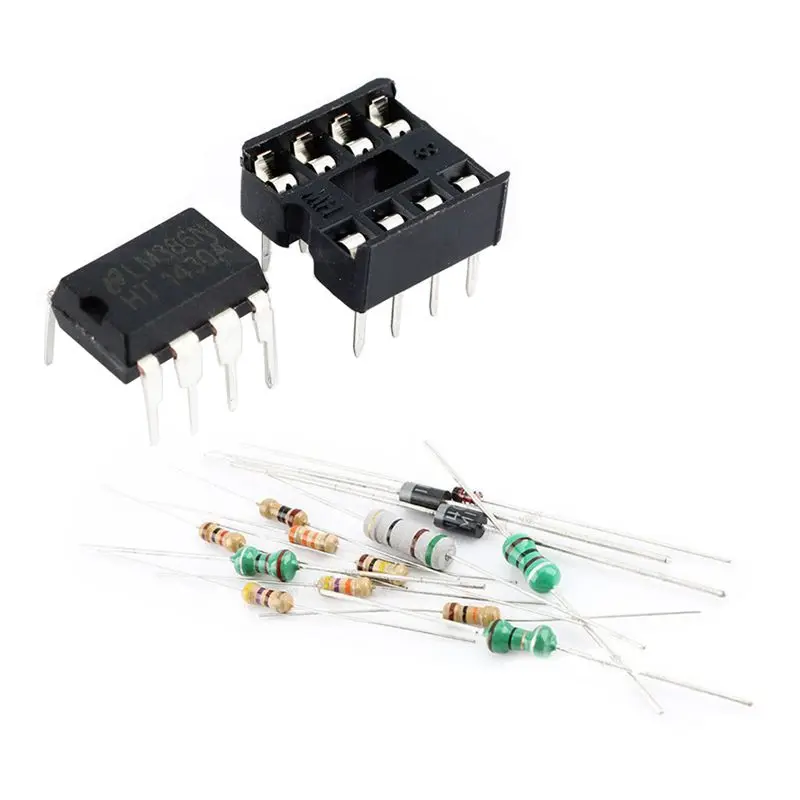

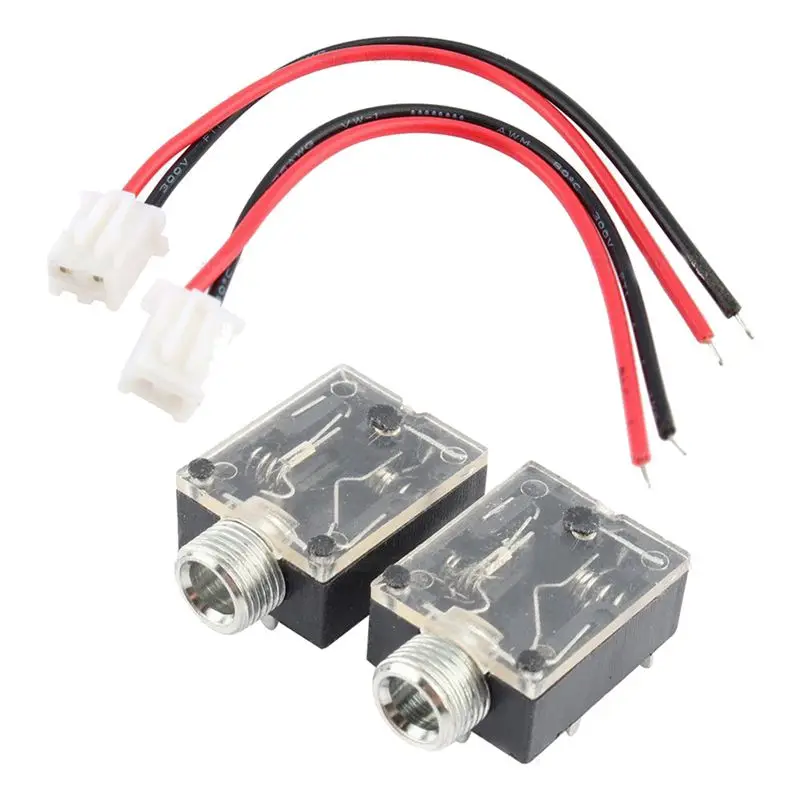

The default shipping for spare parts kit.
Package include:
Packaging content: 1x Shortwave Transmitter Receiver
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
