This SPS series of regulated DC power supply has good stability and ripple factor. Can work at full load for a long time for its perfect protection circuit. Both output voltage and output current are continuously adjustable between 0 and nominal value. The power supply can be used as both a regulated power supply and a regulated current supply. Very suitable for laboratories, schools and production lines.

Features:
Dual Power Output Modes: including constant voltage output and constant current output(CC), determined by the voltage and current values set and the load connected by the user.
Adjustable Output Voltage & Current: output voltage and output current can be continuously adjusted between 0 and nominal value.
USB Quick Charging Function: the machine has built-in fast charging protocol identification chip that supports 5V2A USB fast charging function.

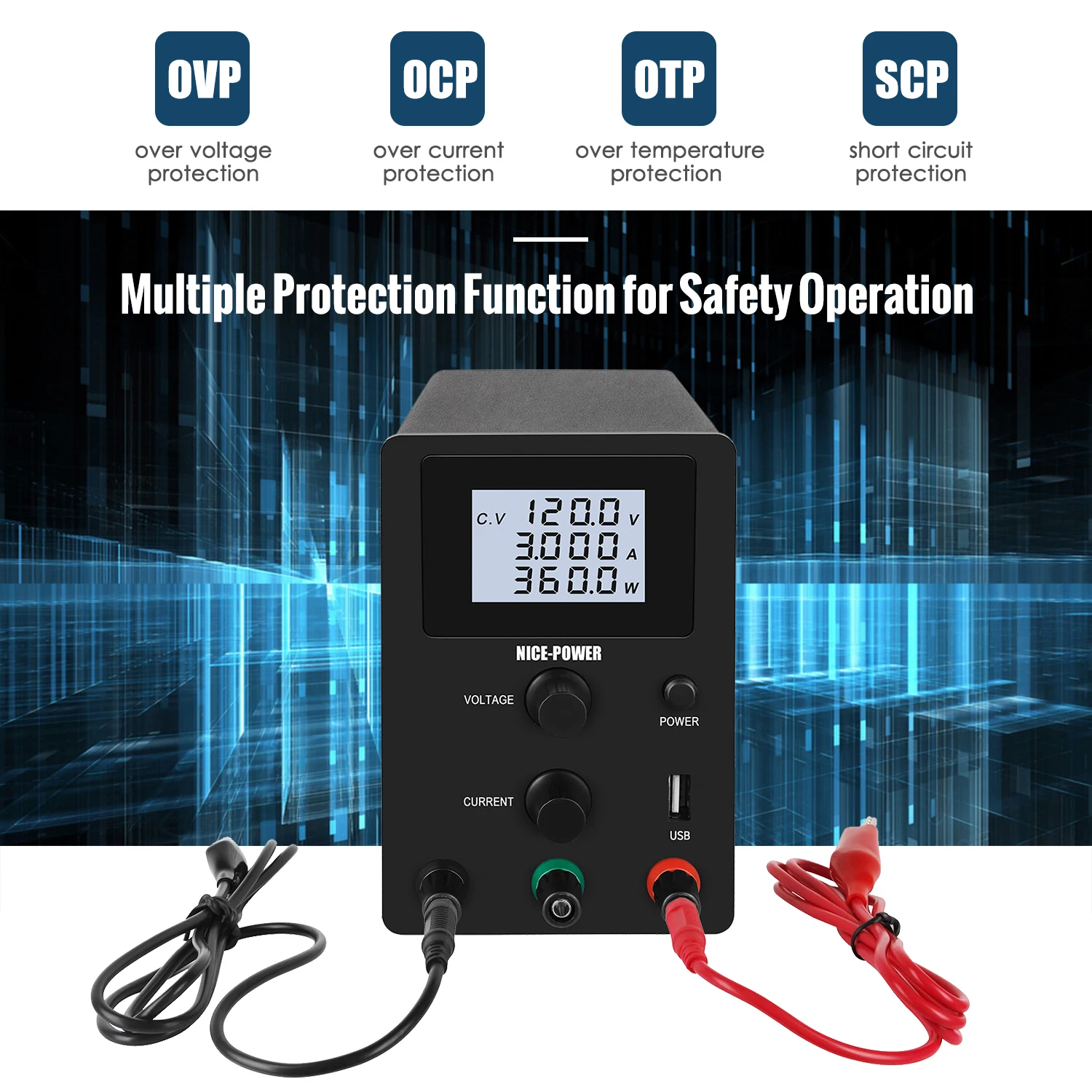

Reliable & Safety Operation: it has over voltage protection(OVP), over current protection(OCP), over temperature protection(OTP) and short circuit protection function.
Clear LCD Display: 4 digits digital displays voltage, current and power on the LCD screen intuitively, and features of voltage stabilization, current limiting, high precision and simple operation.
Wide Application: can be used in mobile phone maintenance, computer maintenance, electrical maintenance, school laboratories scientific research and production line use and all other need DC regulated power supply.

Specifications:

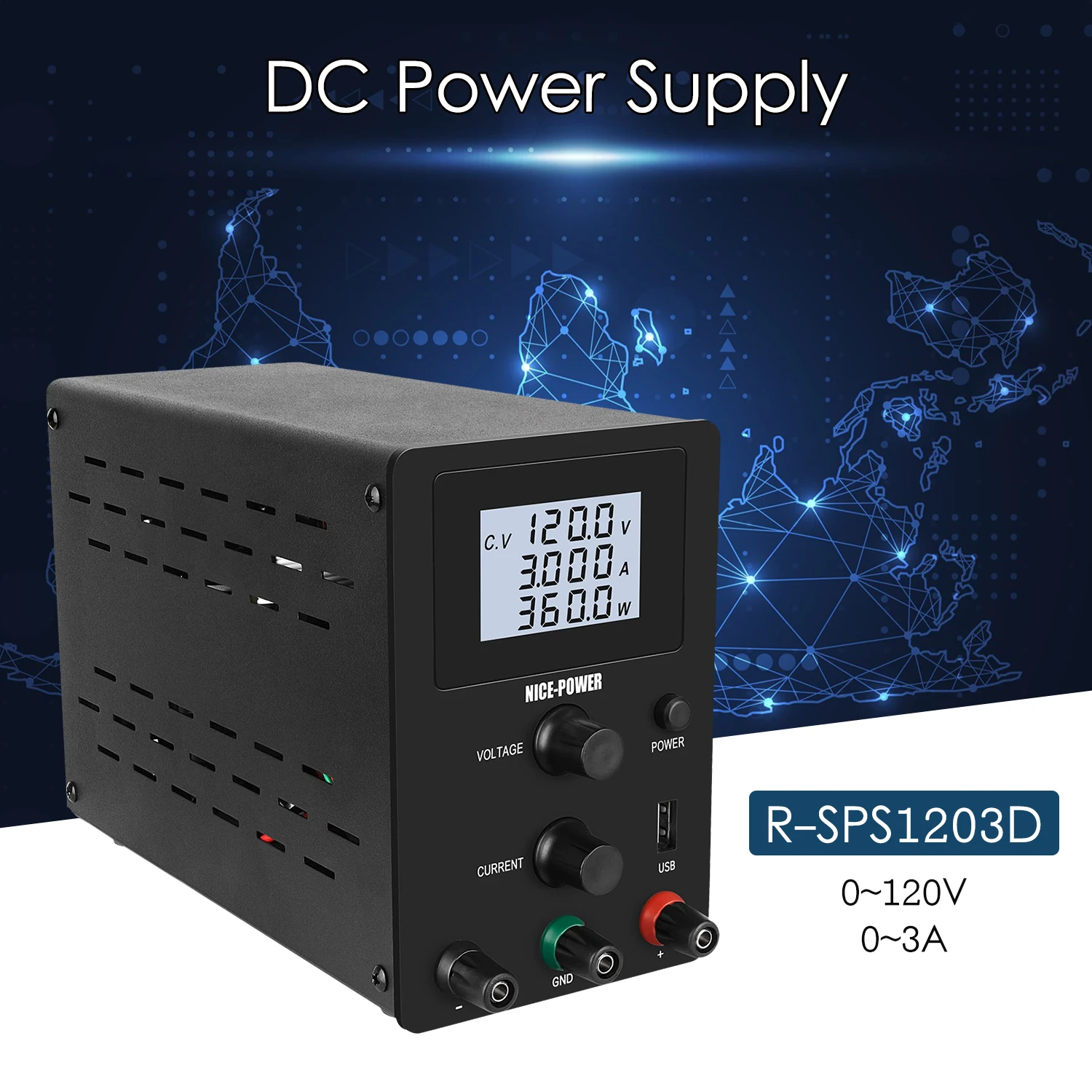

Model Number: R-SPS1203D

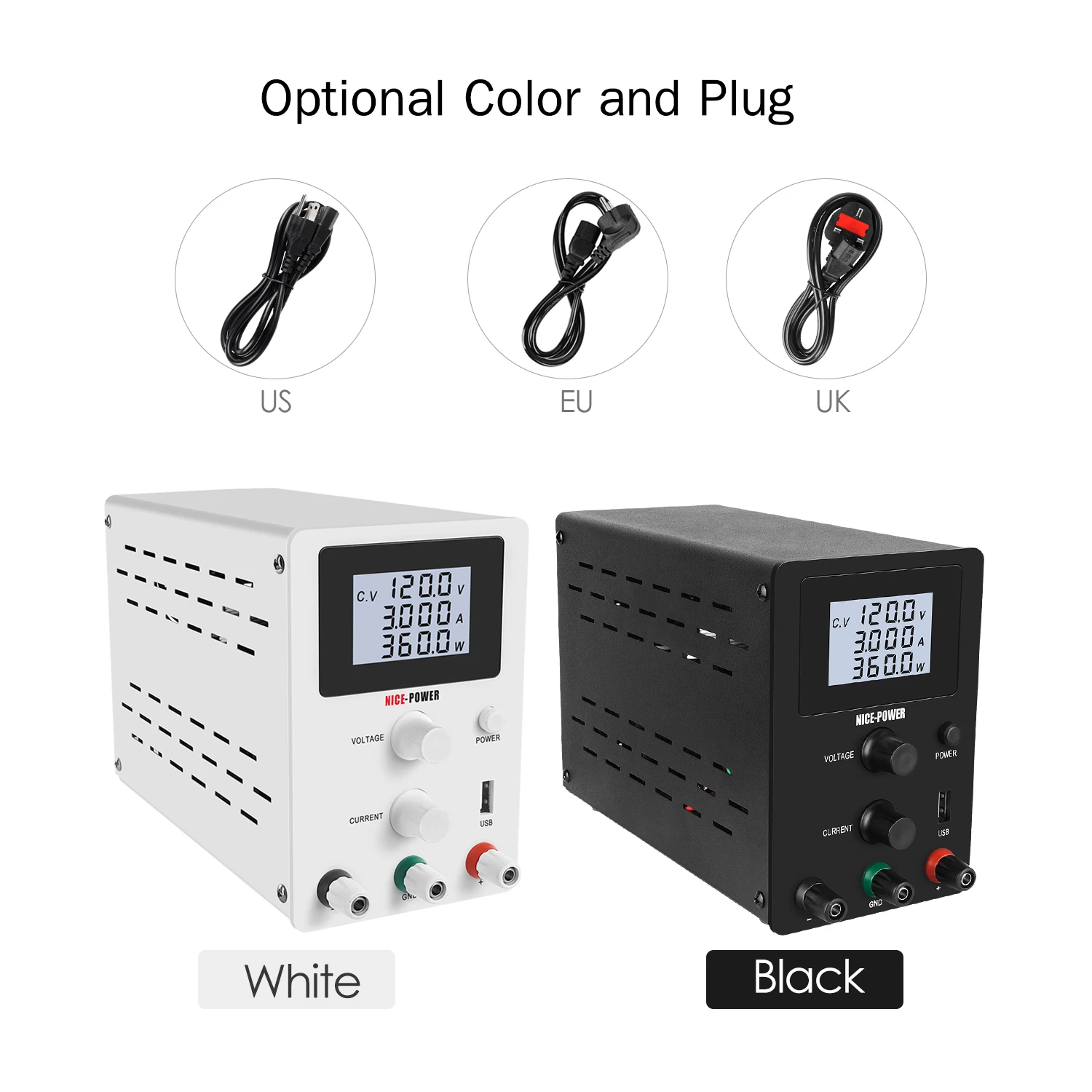

Color: Black / White (Optional)
Plug Type: US / EU / UK (Optional)
Input Voltage: 110V, 60Hz(US plug) / 220V, 50Hz(EU plug, UK plug)
Fuse Standard: 5A(AC 110 input) / 3A(AC 220V input)
Output Voltage: 0~120V
Output Current: 0~3A
Display: 4-digit LCD screen
Display Accuracy: 0.5% ± 2 digits
Display Resolution: Voltage 00.01V; current 0.001A

(Constant Voltage State):
Voltage Stability: ≤0.1% ± 3mV
Low Voltage: 0.2~0.3% ± 3mV
Load Stability: ≤0.5% ± 3mV
Ripple Noise: ≤30mVrms

CC(Constant Current State):
Current Stability: ≤0.2% ± 3mA
Load Stability: ≤0.2% ± 3mA
Ripple Noise: ≤20mArms (valid value)

Material: ABS+aluminum alloy
Working Temperature: 0~40℃; relative humidity: <80%RH
Storage Temperature: -10~70℃; relative humidity: <70%RH
Item Size: 200 * 95 * 140mm / 7.87 * 3.74 * 5.71in
Item Weight: 1200g / 42.33oz
Package Weight: 1700g / 59.97oz
Package Size: 28 * 19 * 14cm / 11.02 * 7.48 * 5.51in

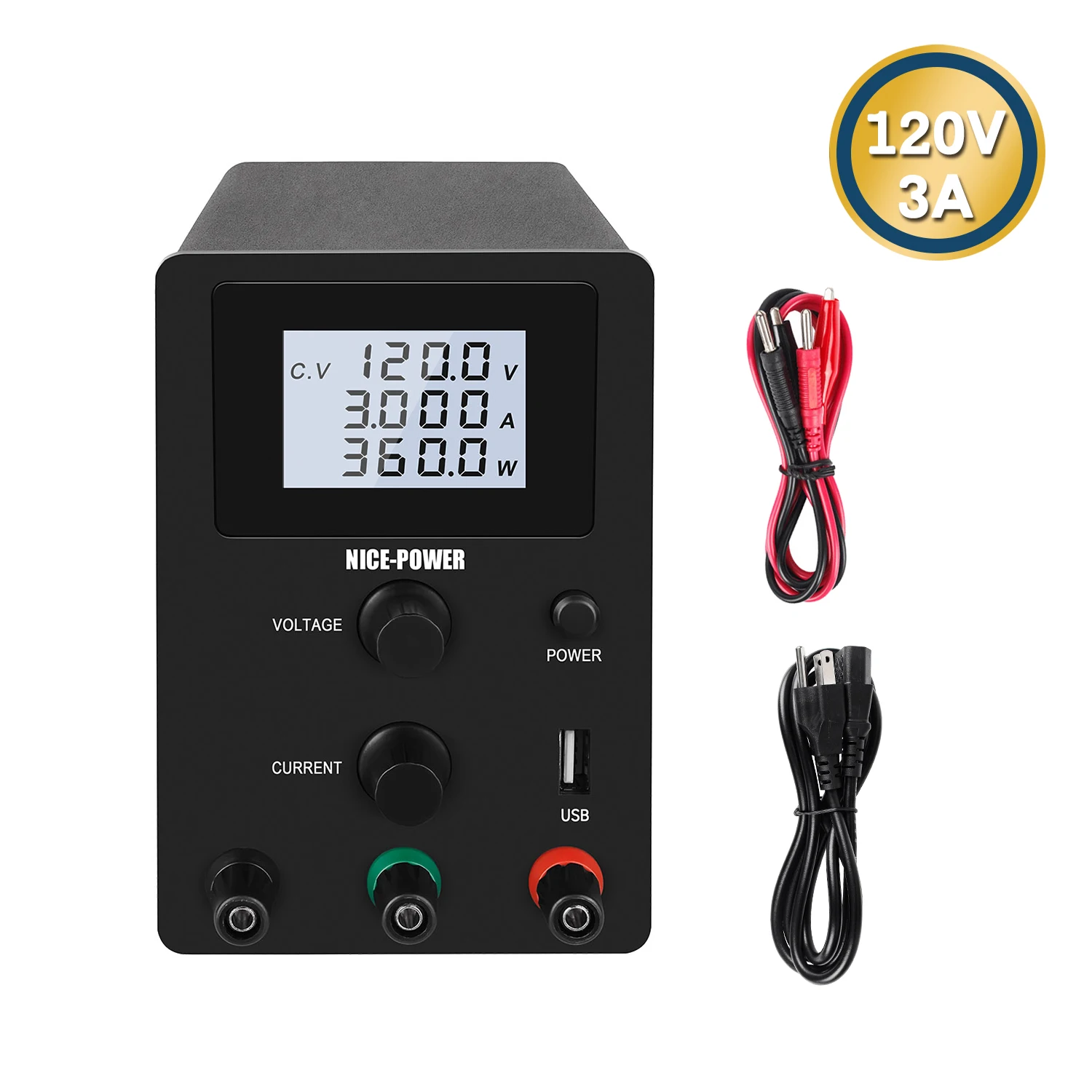

Packing List:
1 * Power Supply
1 * Power Cord
1 * Output Load Cord
1 * Manual (English)
