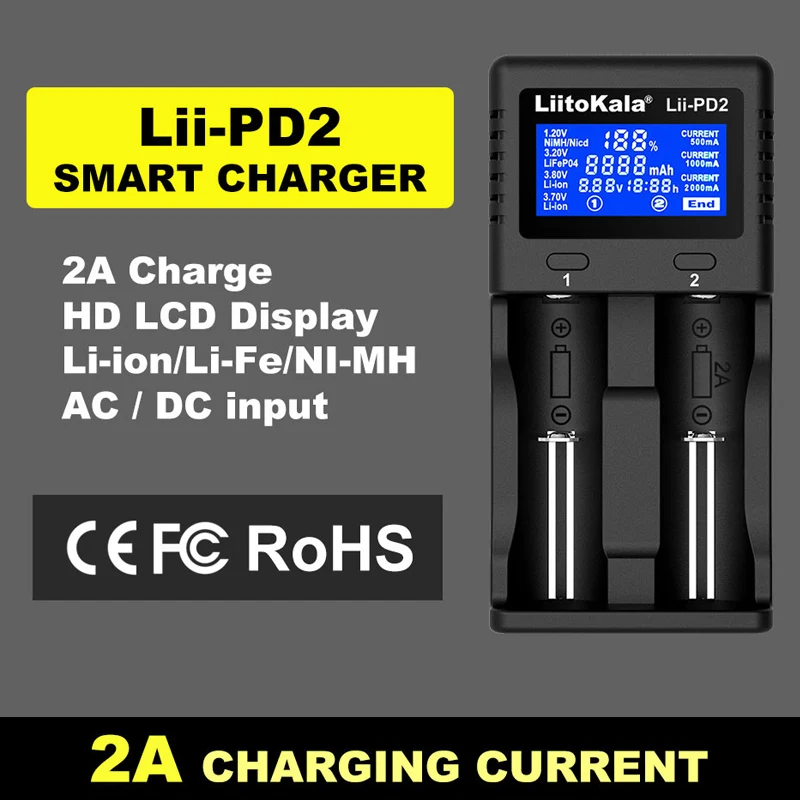

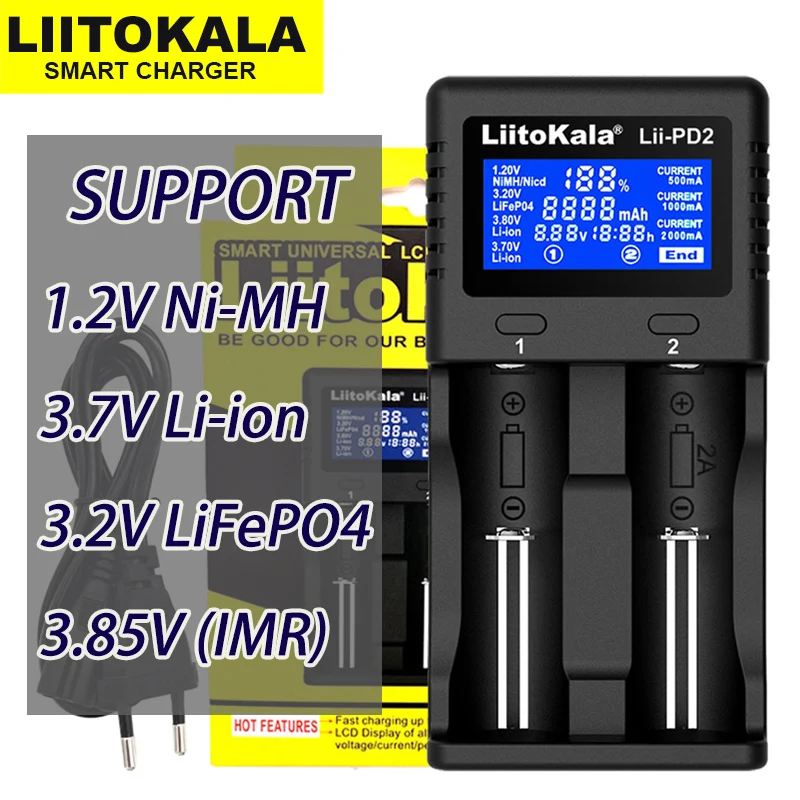

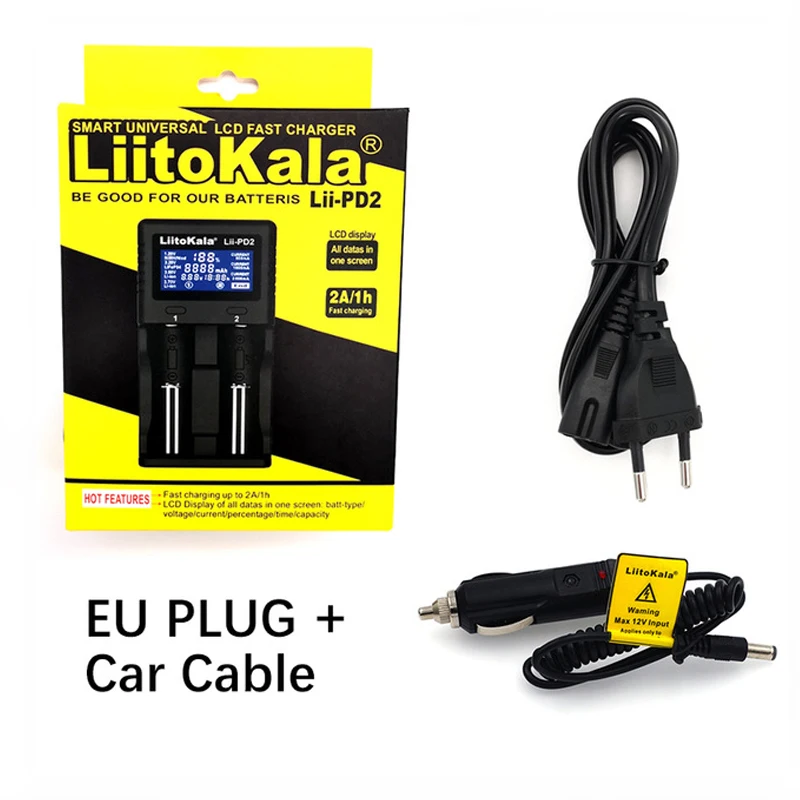

Lii-PD2 data and photo show

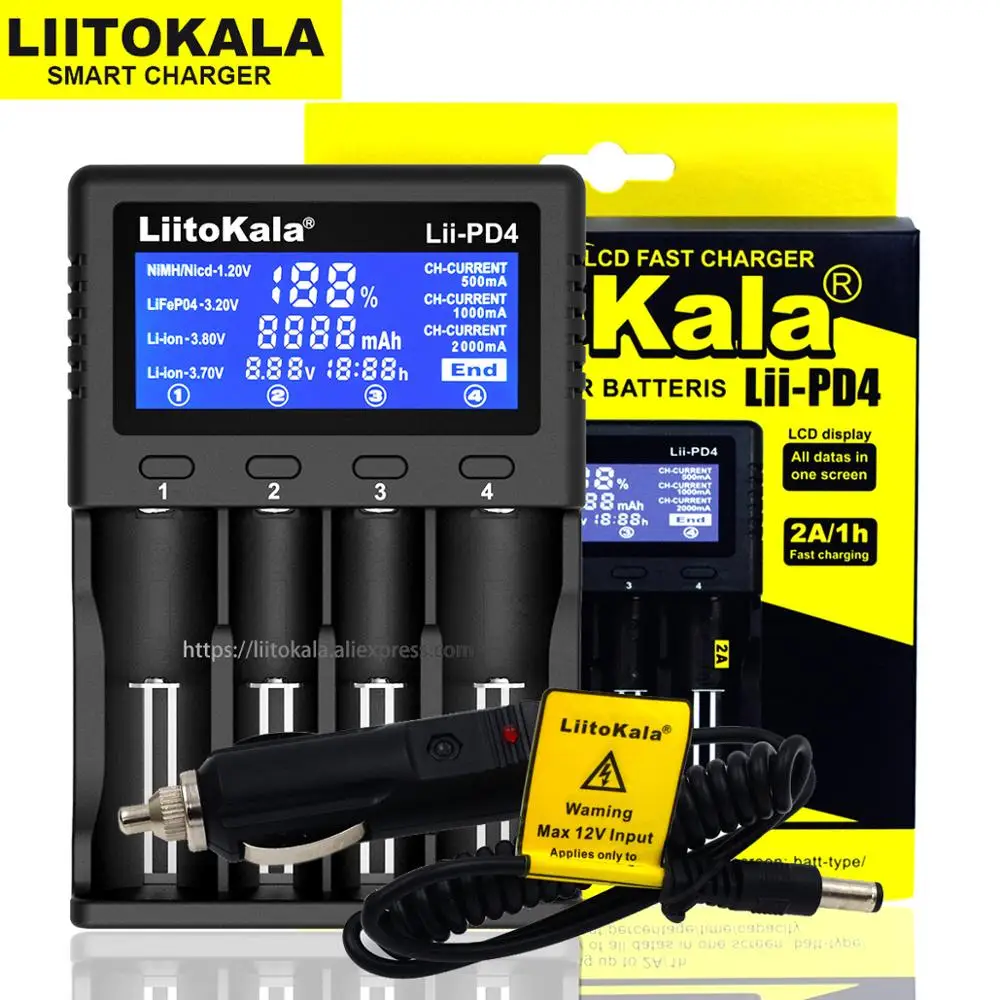

Lii-PD4 parameter

1. Input: 110-240 V 50/60 Hz ac line (containing) dc 12 V / 1A (optional)
2. The output voltage: dc 4.2V to 3.7V lithium ions
Apply to 3.8 V DC 4.35 V lithium ion (IMR)
3.65 V DC for lifepo4
1.48 V DC for the Ni-MH/Ni - Cd
3. The output current: lithium ion/imr/lifepo4 2000 mA * 1 (only applicable to slot # 4),
1000 2500 mA mA * * 3 500 mA * 4
Nim/ni DE: 1000 mA * 2500 mA * 3500 mA * 4
4. Constant voltage, the cut-off current: less than 100 mA
5. The standby current: less than 15 mA

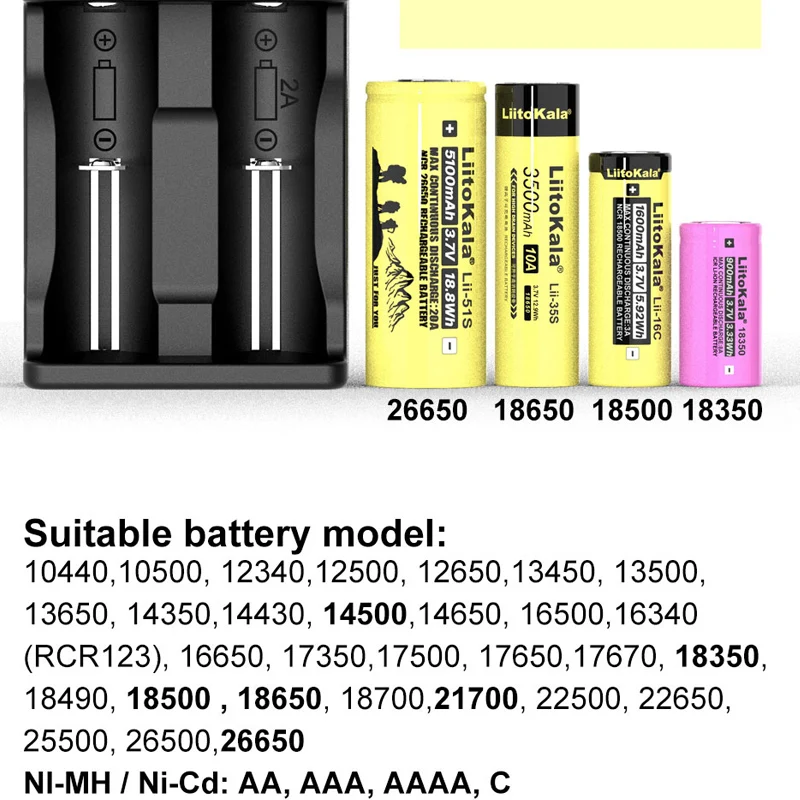

Compatible battery type and size
Lithium ion/IMR/LifePO4:26650217 00207 00186 50184 90183 50176 70175 00163 40 (RCR123), 14500104, 40
The Nimh/CD: AA, AA, SC, C
The size and weight:
133 mm x 100 mm x 35 mm (length x width x height)
Weight: 175 g (not including communication cable)

Note:

1、This charger can charge all cylindrical
rechargeable batteries 3.7 v li-ion, 3.8 v imr,
1.2 v ni-mh / cd, 3.2 vlifepo 4
2、Read this manual before using and pay
special attention to the recommended
charging current, you should avoid charging
the battery beyond the recommended current
limit
3、If dc input, only 12 v 1a is recommended
4、Warming mind while charging
5、Remove the charger from the power supply
after charging is complete, and remove the
battery from the charger at the same time
6、Indoor use only
7、Display data for reference only, please
consult the professional instrument for more
accurate data

Specifications and functions:

1. Multi-power input: AC cable 110-240 v 50/60 hz (included) / 12 v 1a adapter (selective), four independent charging and micro computer management system.

2. Current intelligent automatic load assembly of the total of three levels: 500mA / 1000mA / 2000mA) , 2000ma is fixed only for slot # 4.

3. Multi-functional lcd charging display: for charging progress 25% - 50% - 75% -100%, battery types: ni-mh 1.2 v, li-fe 3.2 v, li-ion 3.7 v, li -ion 3.80 v (imr), load capacity, voltage and current: 0.5a / 1a / 2a.

4. Identify li-ion and ni-mh batteries automatically and manually adjust the charging mode for lifepo4 and 3.80 v li-ion (imr) batteries

5. Upgrade to the ov battery. It will not charge any battery of1.65 -2.20 v (update current can be detected only)

6. Multi-safety protection function of overload and overload, short circuit, reverse polarity and so on. It can intelligently identify broken batteries much more safely.

7. Charging at constant voltage and current

Button and LCD:

1. Mode button (channel button): there are 4 separate buttons separately for each channel. While the power supply is connected and the battery is inserted, 1) short click on the channel button in 5S to change the battery type. It will start charging 5 seconds after setting the battery type (3.2 v or 3.80 v), 1.2 v ni-mh and 3.7 v li-ion can be detected automatically, so you only need to adjust 3.2 v and 3.8 v batteries;

Note: the battery type can only be selective before charging begins.



2. LCD: while the power supply is connected, the LCD will light up for 3 s: 1) if no battery is inserted, the LCD will display "null" and will be turned off in 30 s 2) when the battery is inserted and detected, the lcd will show the channel number while the image of the battery type "Li-ion 3.7 v" flashing indicating to define the type of battery: this moment if you click short on the channel button, it can define the type of battery; if no operation in 5 seconds, it starts with automatic detection (li-ion 3.7 v or nimh) then the percentage of charge image will flash indicating the start of charging. At the same time, LCD monitors also carry voltage, capacity, time and current. When the charge is finished, it will display "100%" average while showing "final"
LCD display graphic reference:
