AC220V 2-99A LED Overload Phase Loss Motor Protection Relay Digital Electric Protector | Инструменты

AC220V 2-99A LED Overload Phase Loss Motor Protection Relay Digital Electric Protector | Инструменты

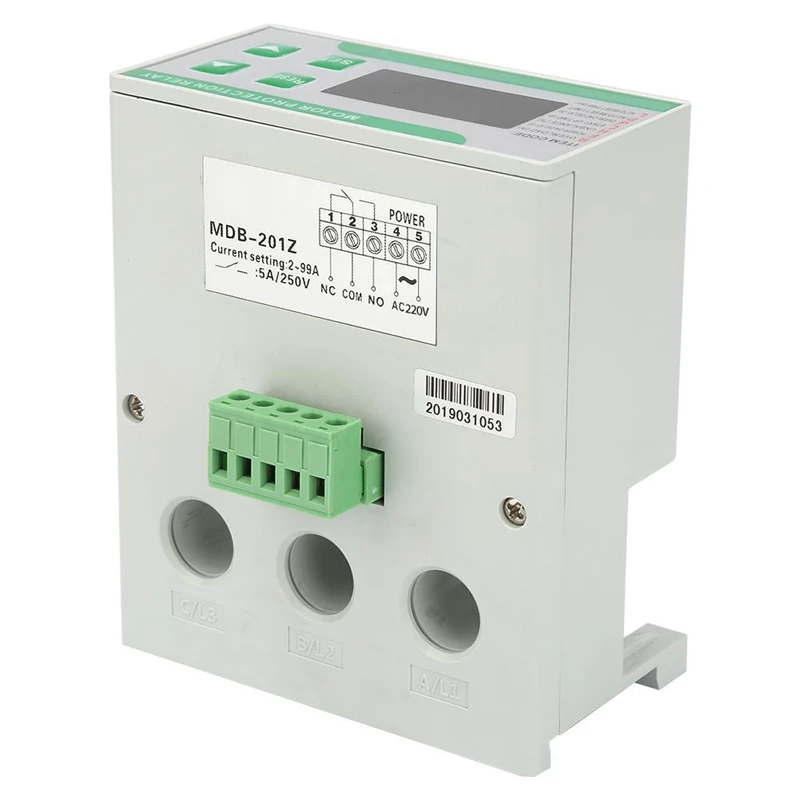

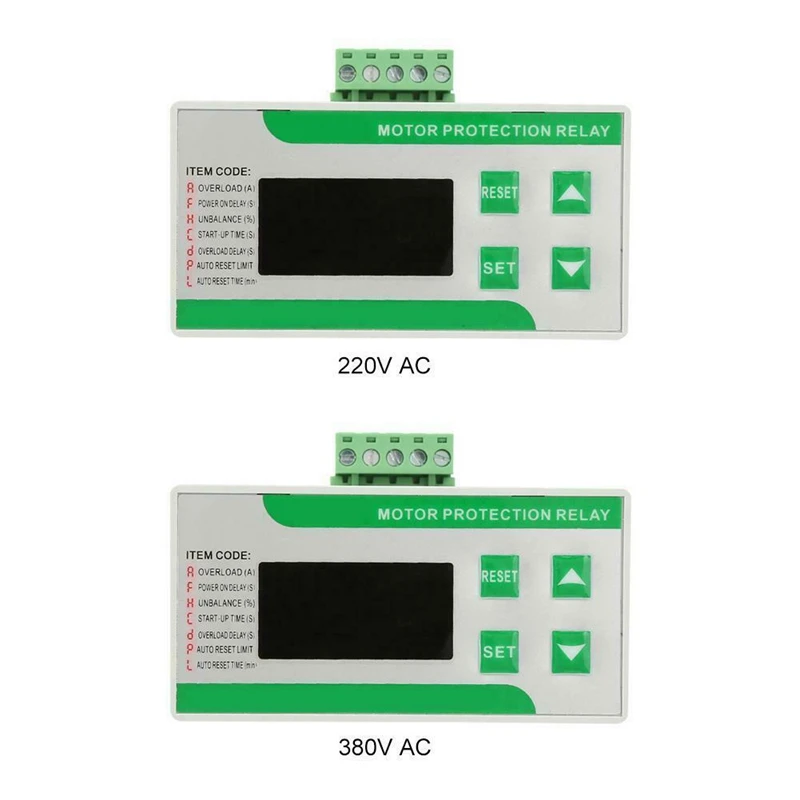

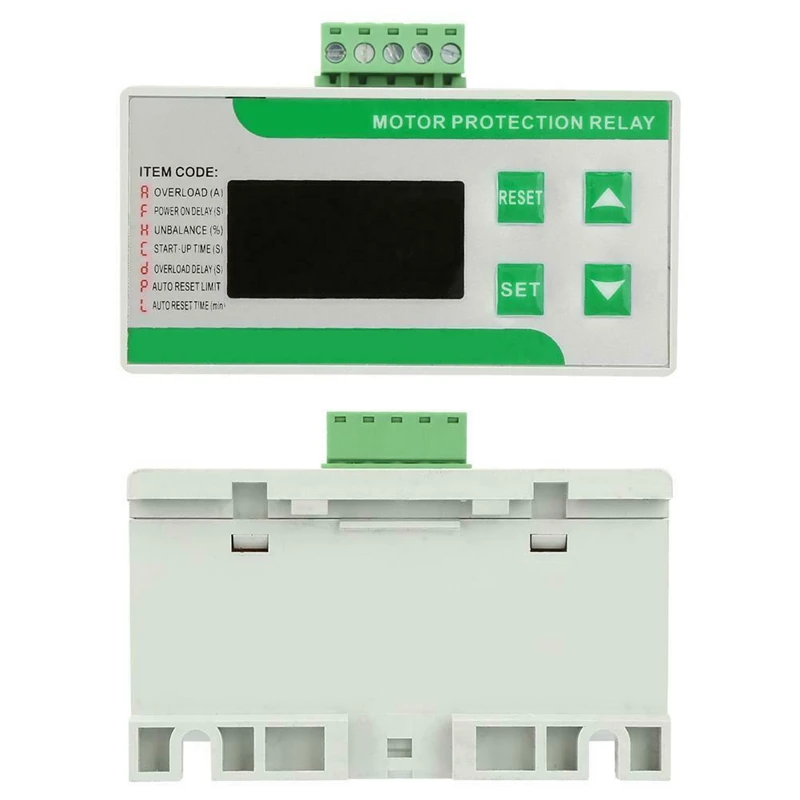

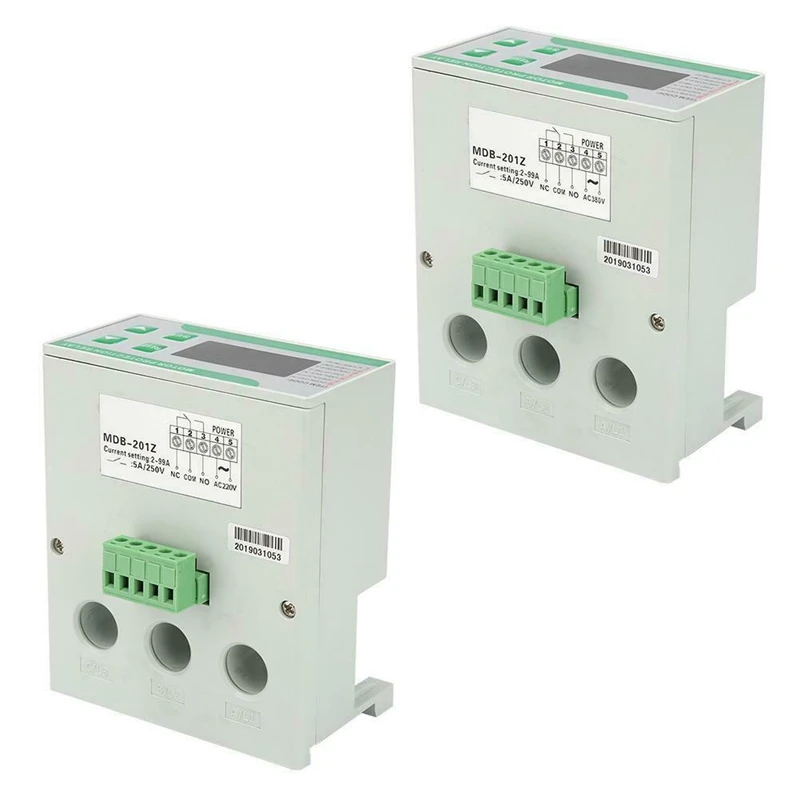

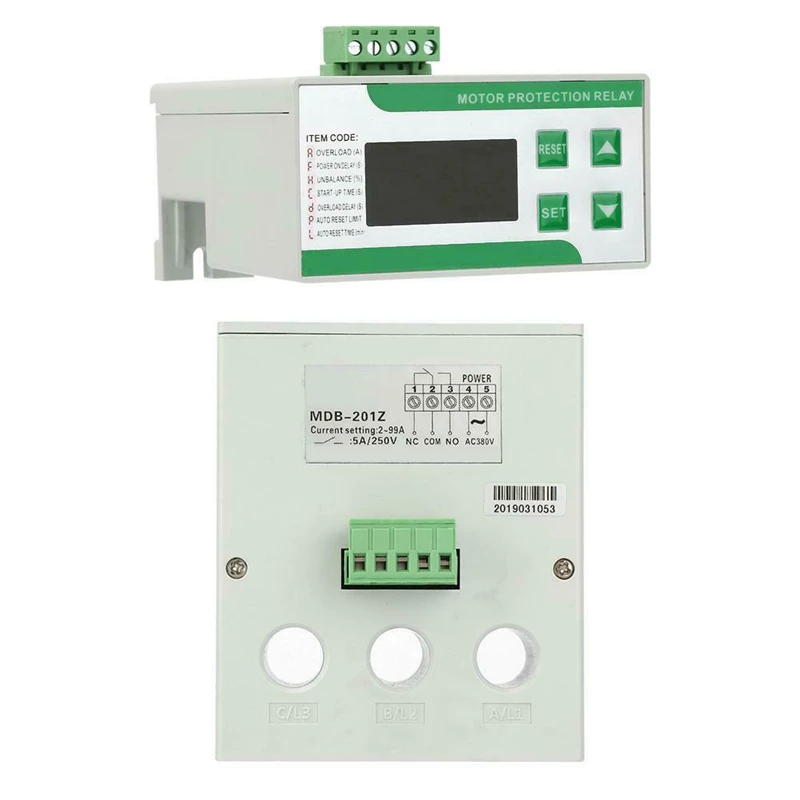

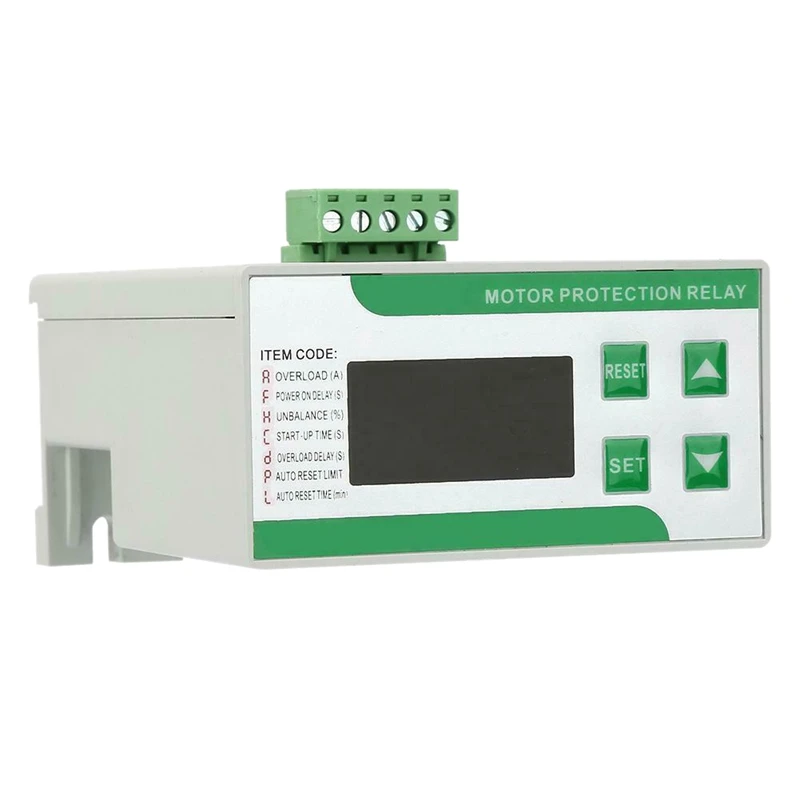

AC220V 2-99A LED Overload Phase Loss Motor Protection Relay Digital Electric Motor Protector

The product adopts integrated structure, compact size.
Data display adopts LED digital tube display and three-phase current real-time display.
The product has the functions of overload, Phase-break and current unbalance protection to better protect the safety of equipment.
The reset mode of the product is optional: manual/automatic
Products are widely used in pumps, cranes, elevators, machine tools and other equipment.
Model: MDB-201Z
Structure type: integrated
Rated voltage:AC220V
Frequency: 50/60Hz
Current range: 2-99A, ±2%
Power-on delay: 0-999s
Unbalance: 0-40% (0 is off)
Startup time: 1-30s
Overload delay: 1-30s
Number of automatic resets: 0-99 times (0 is off)
Automatic reset time: 1-99 minutes
Indication mode: Three-phase current display in real time, LED light indicates each fault
Setting method: Direct digital setting (accurate, high precision)
Reset mode: manual reset, automatic reset, power-off reset
Contact form: 1 set of normally open normally closed passive contacts
Contact capacity: 5A/250VAC
Installation method: 35mm rail
Material:Plastic + metal
colour:Green + white
Package Contents:
1 * Electric Motor Protector
Only the above package content, other products are not included.
