500W Analog TV Braodcast transmitter

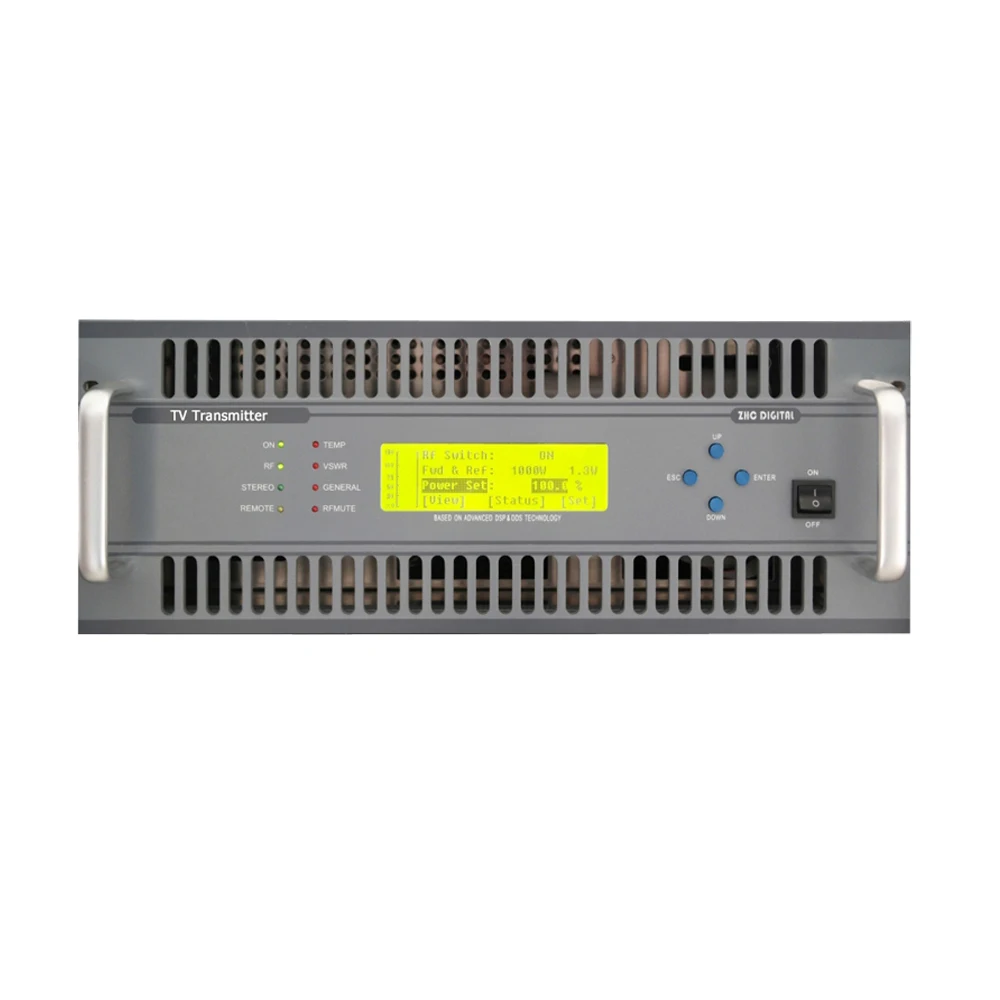

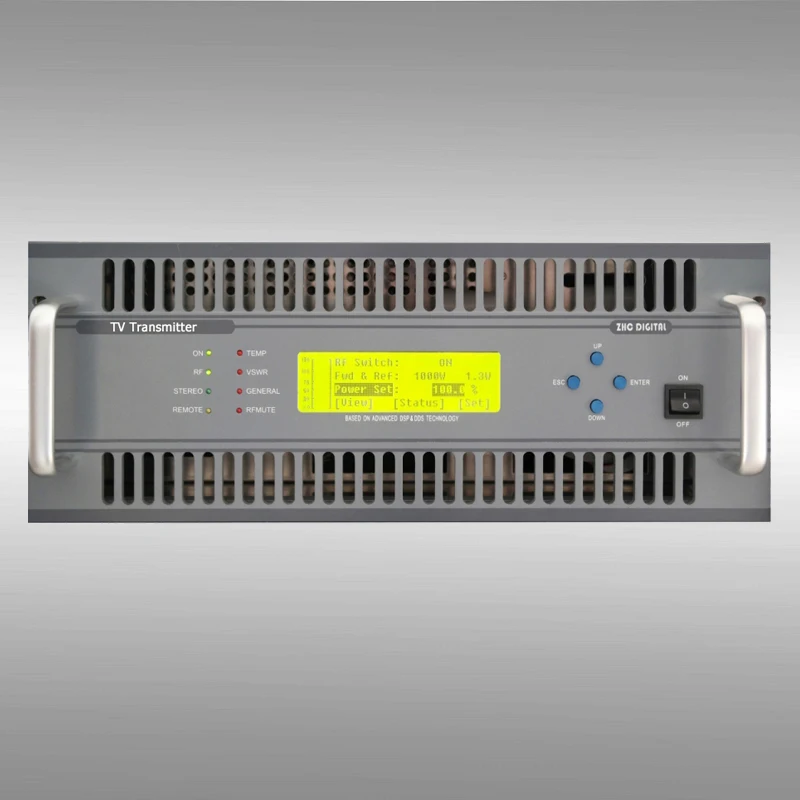

500WTV Broadcast  transmitterDescription

Model :CZH518A-500W
Product Name :500W tv Transmitter

Overview:

1.This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the single/duel exciter configuration, switching automatically.
2.This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias (with external precision reference source) function.
3.It can prefabricate and control the half-power output, and it has remote control telemetry interface.
4.The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
5.The power amplifier and power supply are both used hot-plug devices.
6.The power loss and standing wave of the one-time synthesis power combiner is small.
7.The module of power amplifier display the working parameters in real-time.
8.The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
9.The master touch screen displays the working parameters of the whole
machine and the module of power amplifier (PA) in real-time.
10.The 300W tv transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.

500W TV Broadcast  transmitterFeatures :

1.The whole machine is single-channel, image with audio together.
2.The management and monitoring are intelligent and on network, it has the external PC interface.
3. It has the technical data detection, monitoring systems and full-featured computer control software with auto-diagnostic function. All technical parameters can be read through the LCD display panel.
4.Comprehensive protection measures can reduce the damage of equipments. This machine has protection about no video; VSWR is too large, overheating, over-stimulus, missing phase protection and lightning protection. The switch has protection about overvoltage, over current, under voltage, over temperature, short circuit and lightning protection.
5.All power supplies are switching power supplies; high efficiency, excellent regulator range, strong adaptable from the change of the external voltage.
6.It adopts modular design concept.
7.Hot-pluggable design: power amplifier and switching power are supporting the Hot-plug, it’s easy to debug and maintenance; improve the reliability.
8.The fan is built-in the chassis, the transmitter has a compact structure and a beautiful shape.

500W TV Broadcast  transmitterTechnical Specifications:

Overall performances:

1. Operating frequency band: VHF / UHF

2. Image carrier frequency deviation: ± 300Hz

3. Output power: 500W

4. Output impedance: 50Ω

5. Inter-modulation distortion: ≤-50dB

6. Useless emission:≤-50dB inside adjacent channels;

≤-65dB outside adjacent channels

7. RF output interface: 7/16” female

8. Power supply: single phase 220VAC / 110VAC

9. Cooling method: forced air cooling

10. Working environment temperature: -10～＋45 ℃

11. Dimensions: 483mm(width)x177mm(height)x650mm(depth)

12. Weight: 35Kg

Image performance:

1. Video input level: 1VP-P positive polarity

2. Video input impedance: 75Ω

3. Video in-band reflection loss:≥35dB

4. Video input interface: BNC-K

5. Periodic clutter signal-to-noise ratio: ≥55dB

6. Continuous random wave SNR:≥60dB (weighted),≥55dB (un weighted)

7. Group delay: ± 30ns

8. 2T square wave distortion:≤1%

9. Distortion of brightness waveform: ≤1.2%

10. Non-linear brightness distortion: ≤3%

11. Differential gain DG:≤±3%

12. Differential phase DP:≤±3 °

13. Color / bright gain difference:≤1%

14. Color / bright delay difference: ± 5ns

15. Modulation degree: ≤87.5%

Sound performance:

1. Sound / image carrier power ratio: -10dB

2. Sound carrier frequency deviation: ± 200Hz

3. Audio input level: 0dBm ± 6dBm

4. Audio input impedance: 600Ω balanced or 10KΩ unbalanced

5. Audio input interface: XLR-K / BNC-K

6. Sound modulation capability: >±100KHz

7. FM signal-to-noise ratio:≥70dB

8. Amplitude-frequency characteristic: ± 1dB

9. AM noise (no modulation):≤-55dB

10. Internal carrier noise (100% modulation): ≤-50dB

11. Harmonic distortion:≤0.3%

12. Maximum frequency deviation: ± 50KHz

13. Pre-emphasis time constant: 50us
