DC12-24v ALumimum rgb led controller box+4-key rf remote control

max.load 216/432w led rgb strip module lamp

5pcs/lot promotion

Features:

*4-key RF LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED.

*For instance,point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on;

*At the same time, it has many advantages such as convenient connection ,simplicity to use and others.

*According to the actual need of customers, it can carry out jumpy changing, gradual changing and other effects of change.Total have more than 20 modes for your choice.

Technical Data:

Working temperature: -20--60oC

Supply voltage: DC12-24V

Net weight:   150g

Dimension: L128* W65* H25 mm

Connection: Common anode

Static power consumption: < 1w

Output current:   < 6A  each channel

Output: 3 channels

Output power:  12V: <216W, (24V: <432W)

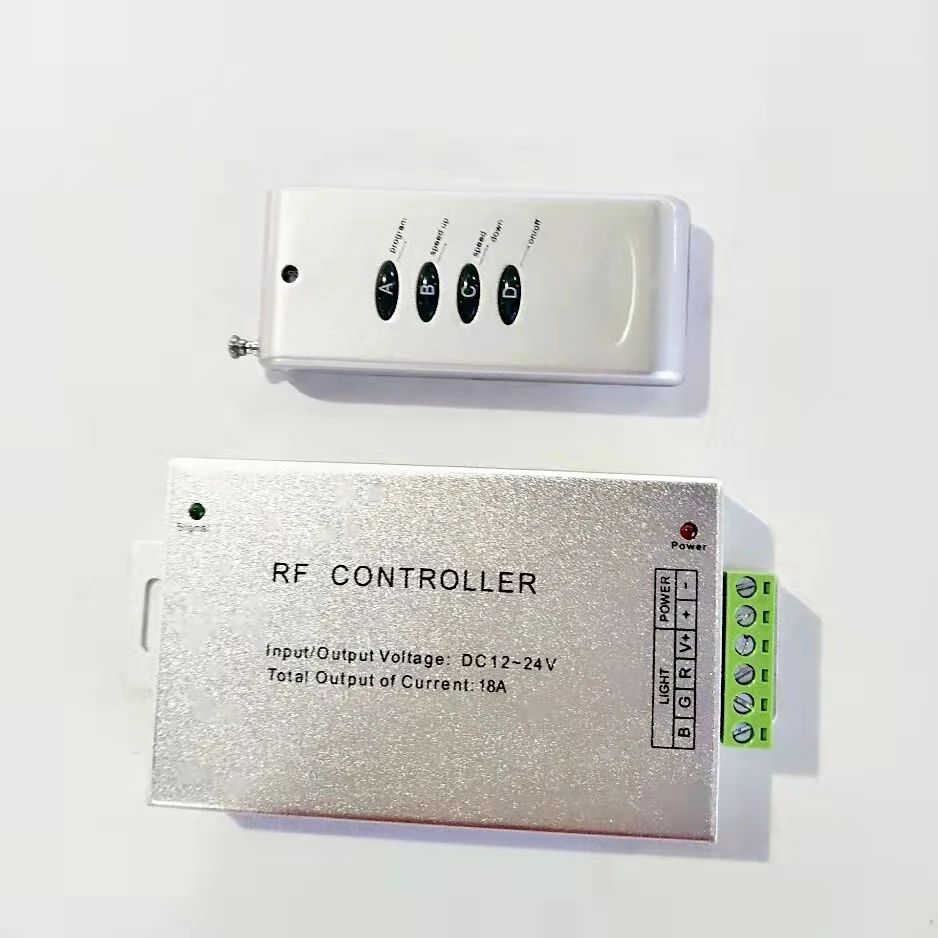

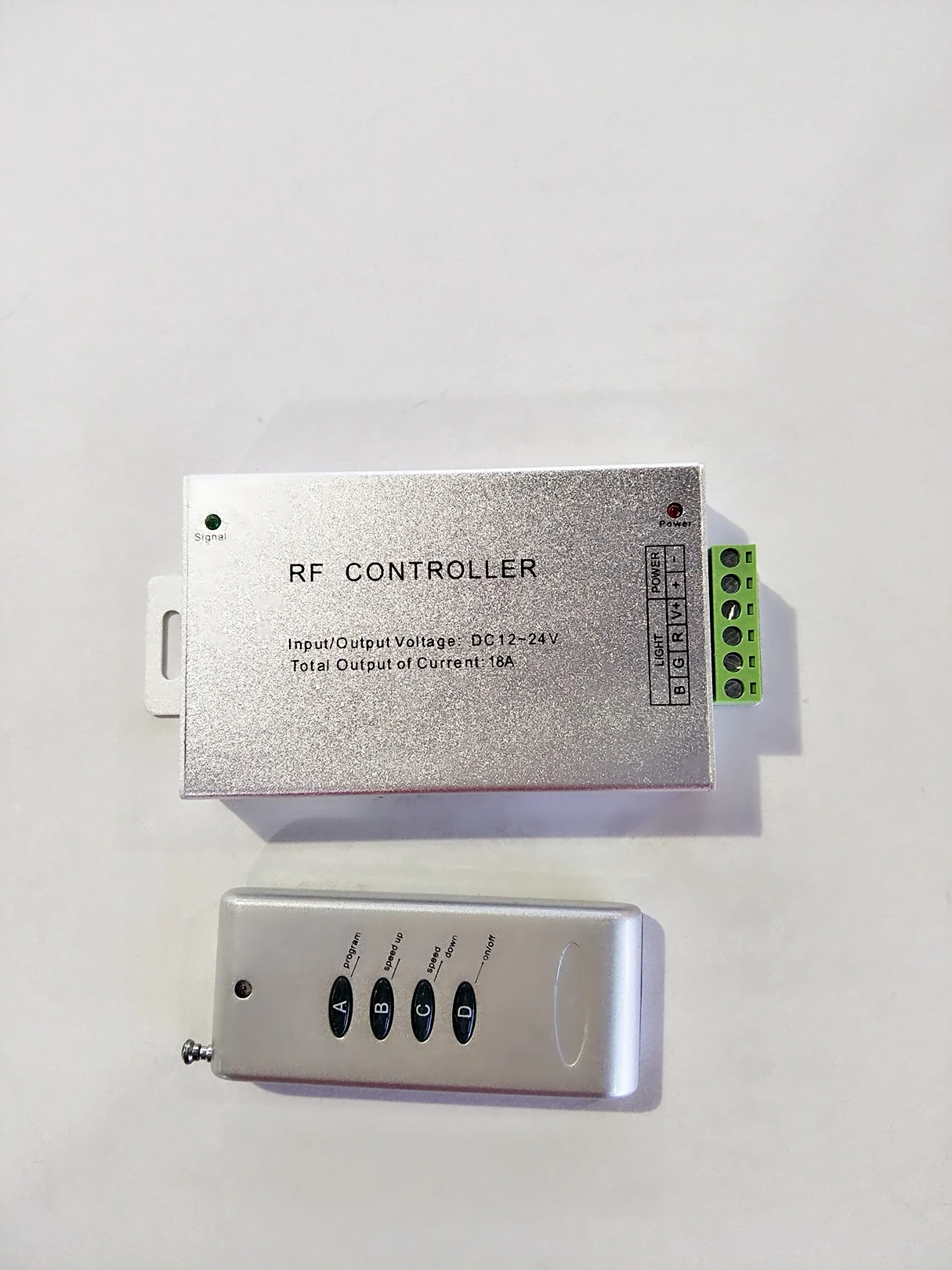

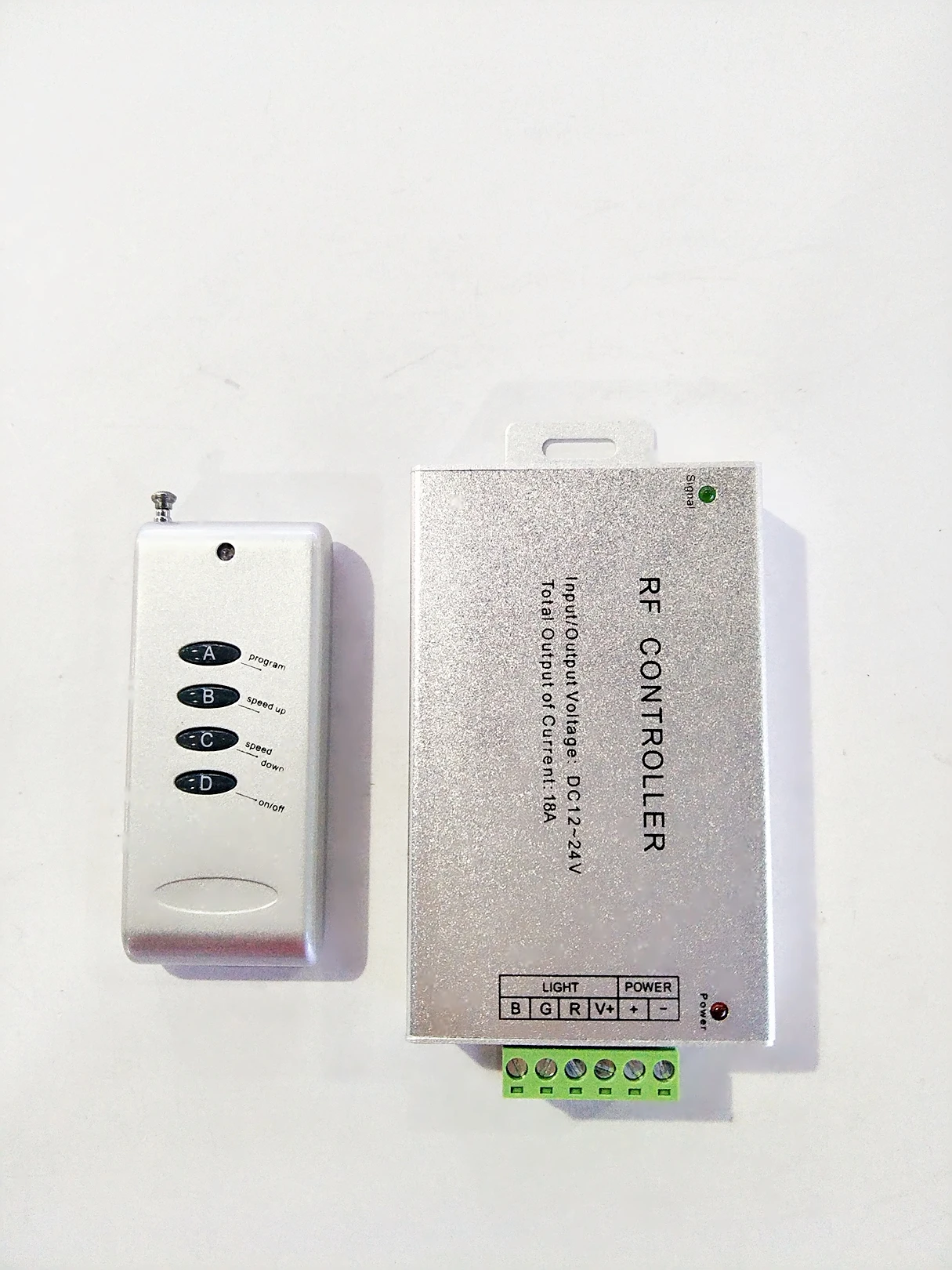

18A rgb remote controller pictures:

Connection Drawing:

Remark:

1.common anode

2.could load 10m led rgb strips which is 60leds/m

3.could load 20m led rgb strips which with 30leds/m

4. input voltage: DC 12-24v

----------------------------------------------------------------------------------
