ВЧП 1.5КВт 220В переменный преобразователь частоты привода шпинделя инвертор HUANYANG переменный драйвер Прямые продажи от производителя.

ВЧП 1.5КВт 220В переменный преобразователь частоты привода шпинделя инвертор HUANYANG драйвер Прямые продажи от производителя.

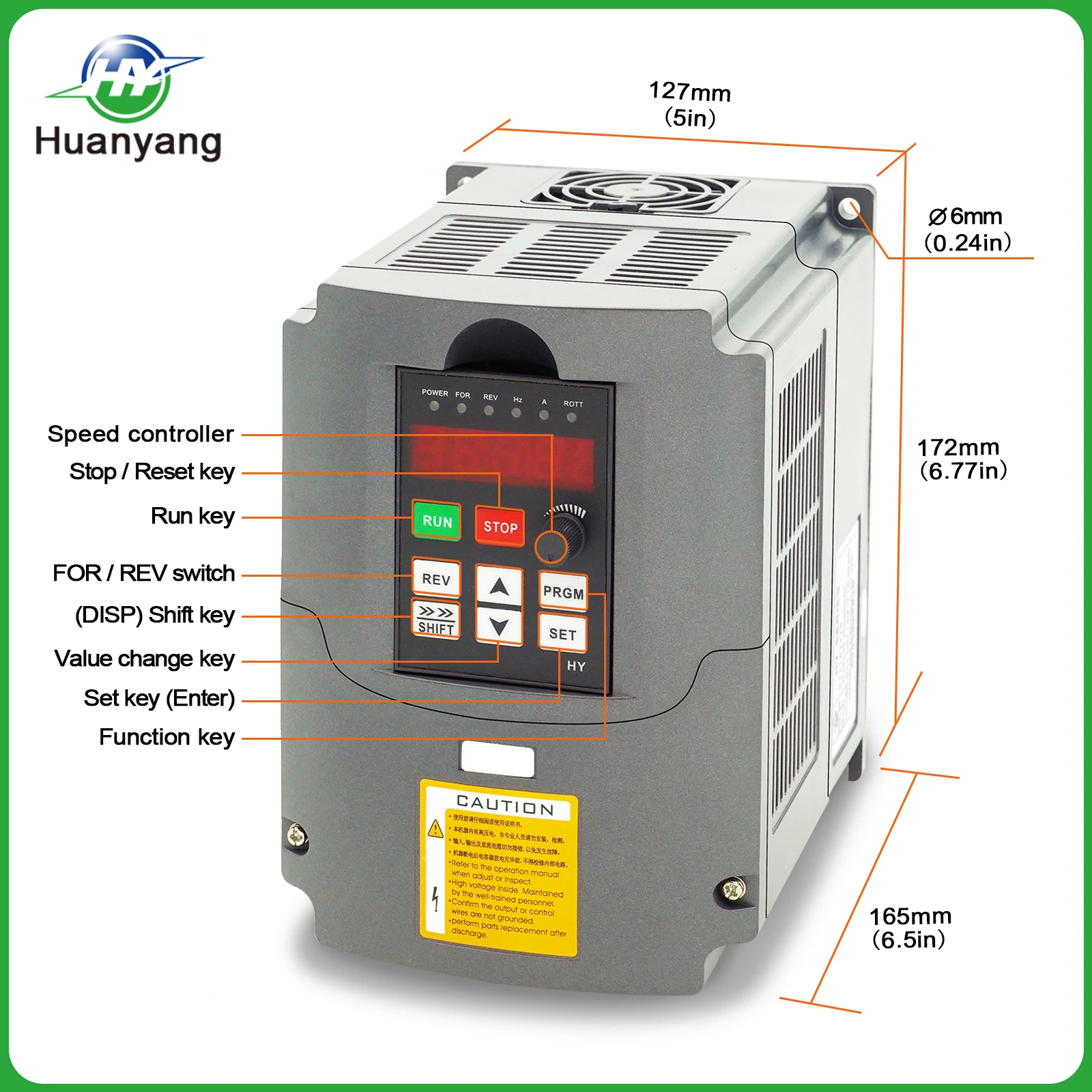

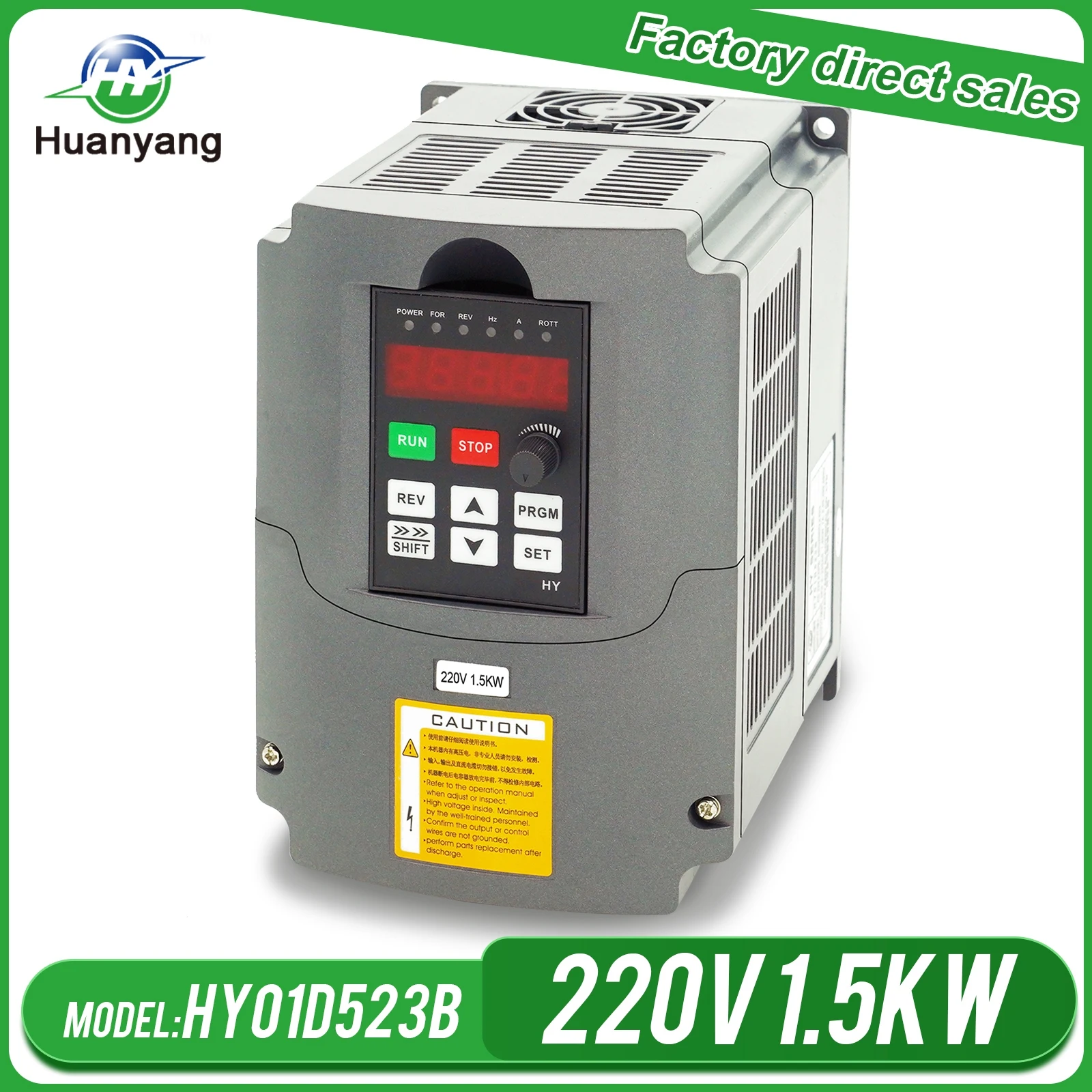

MODEL:HY01D523B

Technical Features:

Input & Output

•

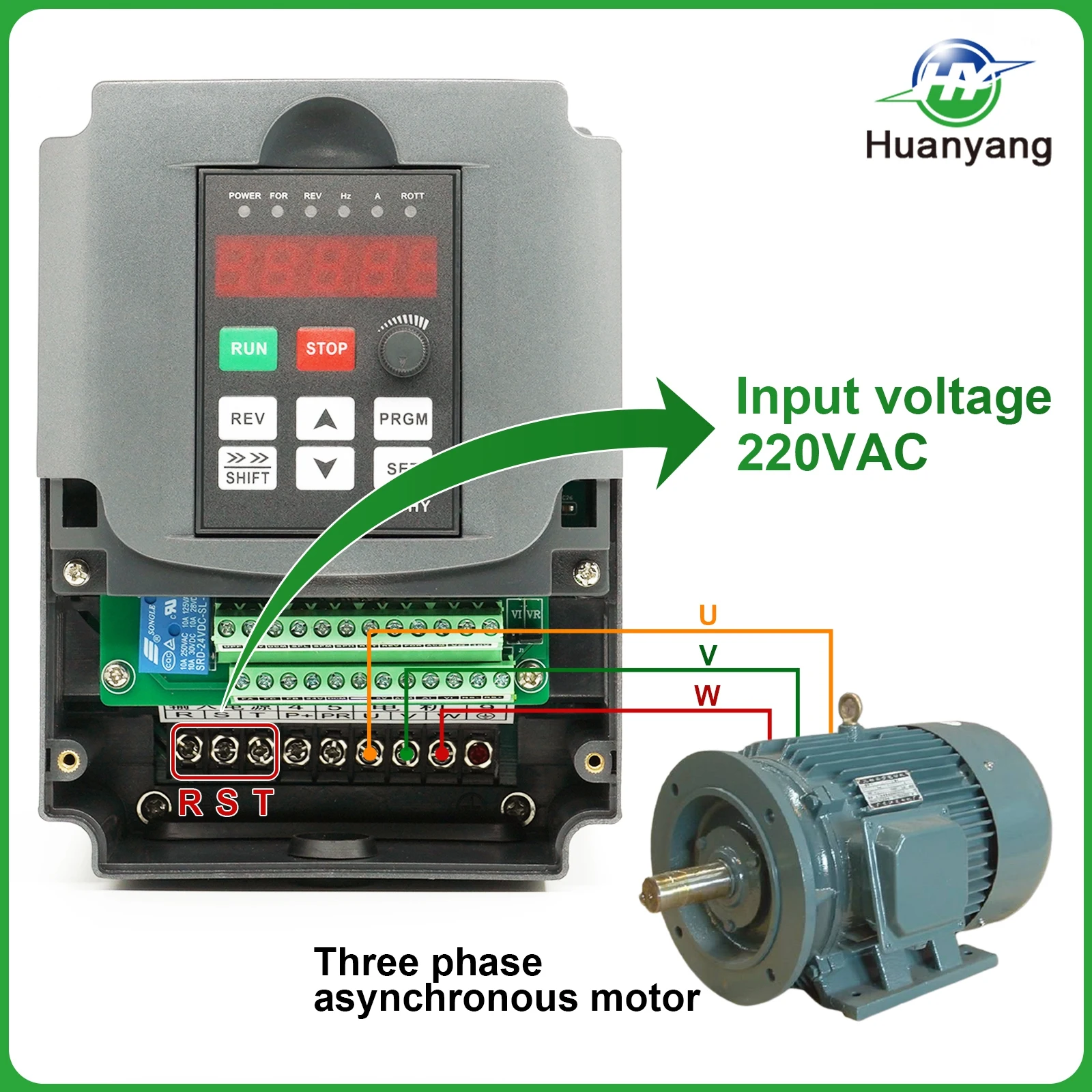

• Input Voltage : 220V, single phase or three phase

•


• Input Frequency: 47-63Hz

•


• Output Voltage : 220V, three phase

•


• Output Frequency: 0-50Hz / 0-400Hz

I/O Features

•


• Programmable Digital Input: Provide 7 terminals which can support ON-OFF inputs, 1 terminal which can support high speed pulse input and PNP, NPN

•


• Programmable Analog Input: AI1 can accept input of -10V-10V, AI2 can accept input 0-10V or 0-20mA

•


• Programmable Open Collector Output: Provide 1 output terminal (open collector output or high speed pulse output)

•


• Relay Output: Provide 1 output terminal

•


• Analog Output: Provide 2 output terminal, whose output range can be 0/4-20mA or 0-10V, as chosen.

Main Control Function

•


• Control Mode: V/F, Torque control

•


• Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current

•


• Speed Adjusting Range: 1:100 (SVC)

•


• Carrier Frequency: 1kHz - 15.0kHz

•


• Frequency reference source: keypad, analog input, HDI, serial communication, multi-stage speed, simple PLC and PID setting. The combination of multi-modes and the switch between diffrent modes can be realized

•


• PID Control Function

•


• Simple PLC, Multi-Steps Speed Control Function: 16 stages speed can be set

•


• Traverse Control Function

•


• None-Stop when instantaneous power off

•


• Speed Trace Function: Smoothly start the running motor

•


• QUICK/JOG Key: User defined shortcut key can be realized

•


• Automatic Voltage Regulation Function (AVR)

•


• Automatically keep the output voltage stable when input voltage flucuating

•


• Fault protections: Protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.

Application:

Mettalurgy,petroleum,chemical, textile, electricity, building material, coal, medicine, food, paper making, plastic, printing, lifting, cable, washing, water supply, HVAC, sewage disposal and other industries.

Machinery: CNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines.

Package include:1 x HuanYang Drive

1 x User Manual

Welcome to view other items in our store

These products are directly from the manufacturer with competitive price and guanranteed quality. Pls feel free to contact us for stock.

http:/store/723929

Note: 220V to 380V inverter's current is much larger than standard one, so inverter's power have to be larger than motor's, or damage will be caused to inverter.

Above inverter model selection is for underload motor. If your motor is heavy load, pls contact sales for model selection suggestion.
