Description

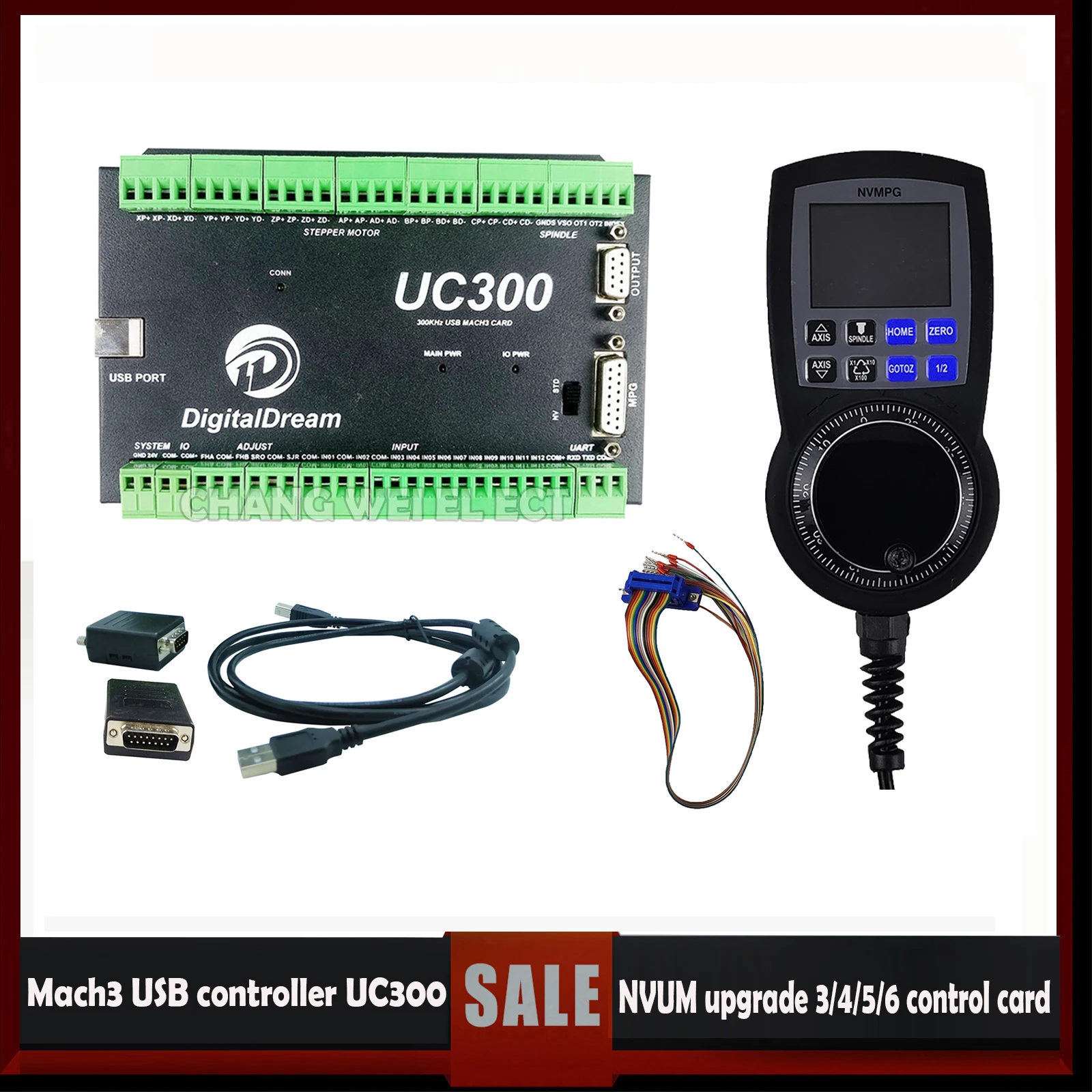

packing list:

1 x CNC motion controller (3-6 axis optional)
1 x connection cable
2 terminals
1 x mach3 digital handwheel
2 x75W24V DC

Product Description:

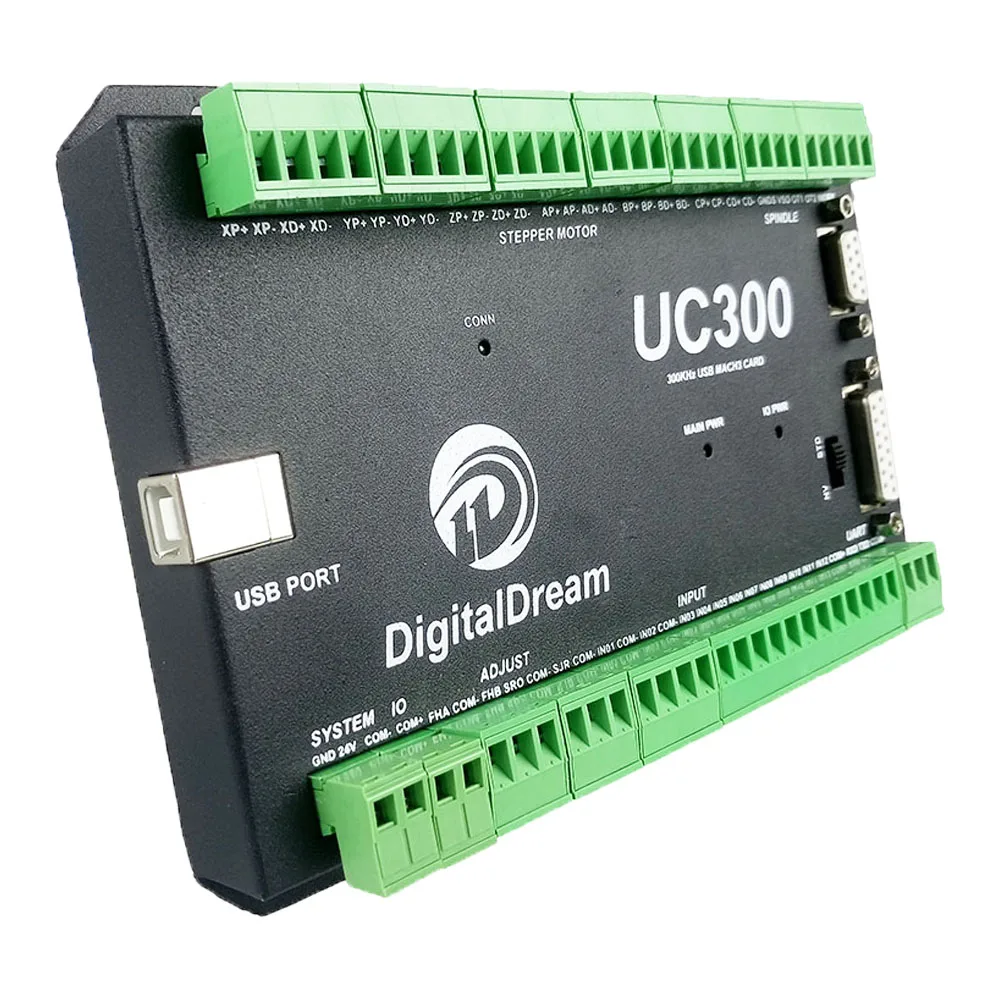

The UC300 is a high-performace external motion controller for Mach3, with USB port communicated
Mach 3 software,supporting standard MPG and Digital Dream MPG.The device can communicate with a
connection to a control computer’s network.The network connection can be built with direct connection by USB
Port.
The computer connects to the UC300 via a standard USB cable.It’s the best to shiled the communication
USB cable to ignore the interferences.
The device can be used to control machine tools with stepper or servo motor with pulse and direction
interface;the controller can output a maximum of 300kHz stepping frequency for each axes and can work with
upto 6-axes.The Controller is 3-6 Axis for user’s options

Features:

1) Motion control 3-6 Axis(X,Y,Z,A,B,C) for option,max frequency output 300Khz/Axis;
2) USB Communication with Mach 3 Software;
3) Main power supply 24VDC,Current should higher than 1A;
4) IO Power is 24VDC power supply input,current should higher than 1A(The controller already supply the
power for IO port,no need the external power supply for IO port anymore);
5) 12 opto-isolated digital input ports,10 opto-isolated digital output ports;
6) 1 analog output port of 0-10V adjustable speed for spindle (can change to PWM output port);
7) ARM motion control chip;
8) Compatible with Standard MPG and also Digital Dream MPG

Power

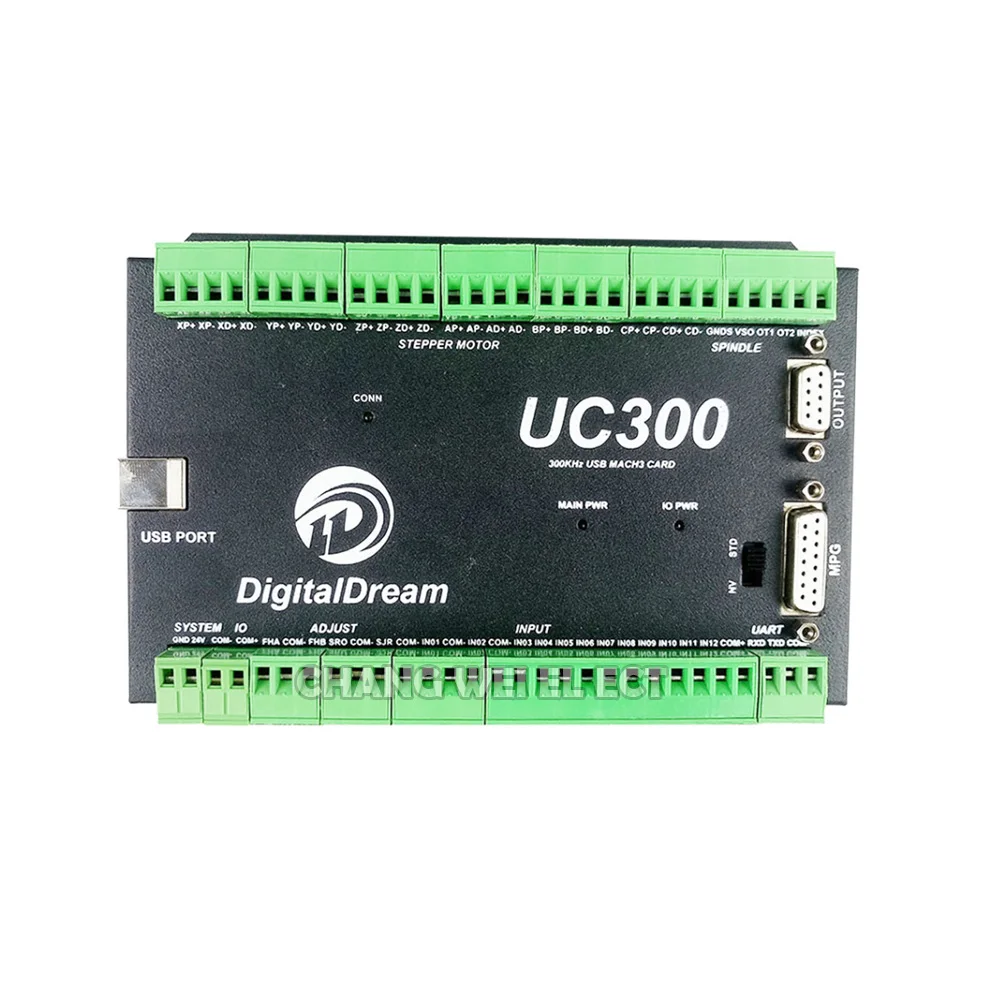

Product connection define and method

1 : USB Communication Interface to PC
2 : Stepper/Servo motor Driver connection port
3 : Spindle Control Output Port
4 : Gerneral Output Interface
5 : MPG Port
6 : Functional Switch for MPG:Standard MPG or Digital Dream MPG
7 : Serial Extend Port
8 : Input Port:Limit/Home/Probe and so on
9 : Adjustable parameter Input Port
10 : Main System and IO Power Port

Definition

Serial expansion port

Other switch input connections

Servo motor control interface connection

Universal output interface

Spindle control output port

Product Size

Introduction:

We have designed a new manual pulse generator called NVMPG. The MPG has a screen and 10 buttons. Coordinates and other parameters are displayed on the screen, and the user can change the axis and speed through buttons.
For example, ZERO / GOTO0 / HOME on the button. The encoder of NVMPG is the same as general MPG. However, the selection of axis and speed uses the USART port instead of the universal port.
Specification feature：
1) High performance, low prices
2) 2.2' TFT Screen
3) 10 buttons
4) Voltage 5VDC
5) 8 wire control line
6) 6 axis coordinates /RESET/FRO/SRO/SJR/SPINDLE are display on the screen
Dimensions:
