Описание товара

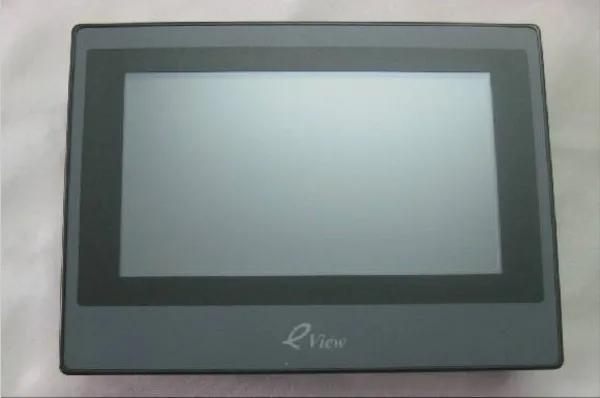

Eview ET070 Kinco HMI 7 inch colour touch screen
PRODUCTS FEATURES
1. high-performance with 400MHz high speed CPU, so the data processing power and communications transmission speed,multi-page switching speed more smoothly.
2. lowest-cost high value, low cost to meet the needs of customers.
3. backlight LED backlight, brightness can be adjusted, more environmentally friendly energy.
4. stylish fashion widescreen 16:9 widescreen, TFT LCD, color 65536 color display is more colorful.
5. Touch sensitive windowless mask use new technologies to ensure the mask never bubbling, touch higher sensitivity.
6. easy to use system parameters, firmware updates, touch calibration settings easy, does not require frequent adjustmentcabinet open coding switch to set the operating mode can be directly in the software quick and easy to complete.
Specifications
LCD Size: 7 "TFT
Resolution of: 800 * 480 pixels
display color: 65536 color
Brightness: 250 cd/m2
LED backlight
Touch screen : 4-wire precision resistor network (surface hardness 4H)
LCD life : 50,000 hours
CPU 400MHz RISC
Memory 128M FLASH +64 M SDRAM
RTC & recipe memory real-time clock + 512KB
Expandable memory does not support
Print port serial
Ethernet is not supported
Download a USB SLAVE interface / serial
Communication port COM0: RS232/RS485-2, COM2: RS232
Expansion interface does not support
Electrical Specifications
Rated power 7.2W
Rated Voltage DC24V
Input range 12 ~ 28VDC
Allowable Voltage <3ms
Insulation resistance More than 50MΩ 500VDC
Pressure test 500V AC
Structural Specifications
Shell color black
Housing material ABS plastic
Dimensions 204 × 150 × 37mm
Mounting hole size 192 × 138mm
Weight 1.5 Kg
Environmental Specifications
Operating Temperature 0 ~ 45
Operating Humidity 10 ~ 90% RH (non-condensing)
Storage temperature -10 ~ 60
Storage Humidity 10 ~ 90% RH (non-condensing)
Seismic degrees 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
Natural air cooling
Product Certification
Panel Protection Meet IP65 requirements
CE certification EN61000-6-2: 2005, EN61000-6-4: 2007
Dimensions
