Personalized alarm kit 7 inch touch screen 868MHZ FSK Smart home security GSM alarm system supported IP camera&appliance control

Brand new  7 inch touch screen 868MHZ home security GSM alarm system with Menu in English/German/Italian/Dutch/French/Czech/Finnish for option

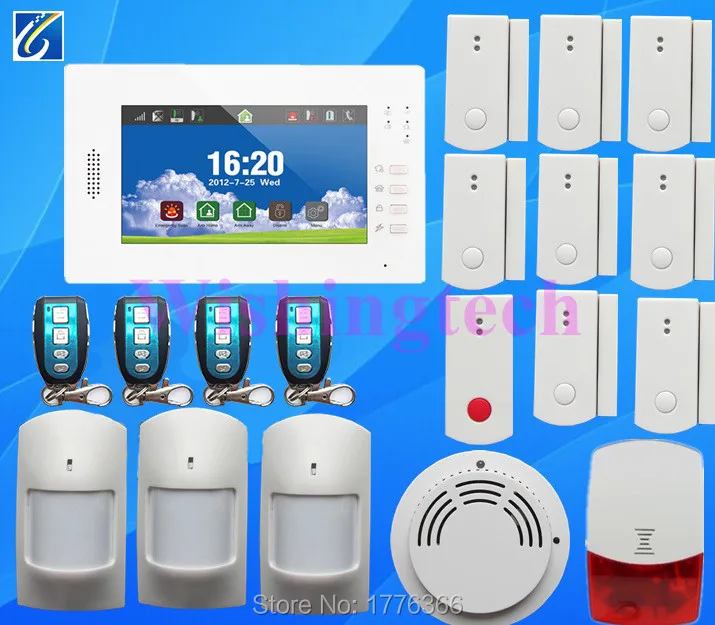

Packing list:

main unit X1

English Manual x 1

Built in standby battery x1

Adapter x1

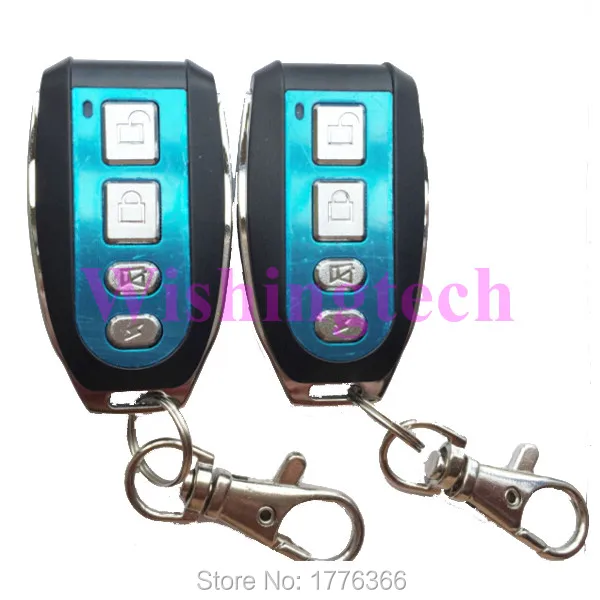

Remote controller x4

Door/ window sensor x 8

Wireless PIR Detector x  3

wireless smoke sensor x 1

Wireless indoor strobe siren x 1

Wireless panic button x 1

Function Features

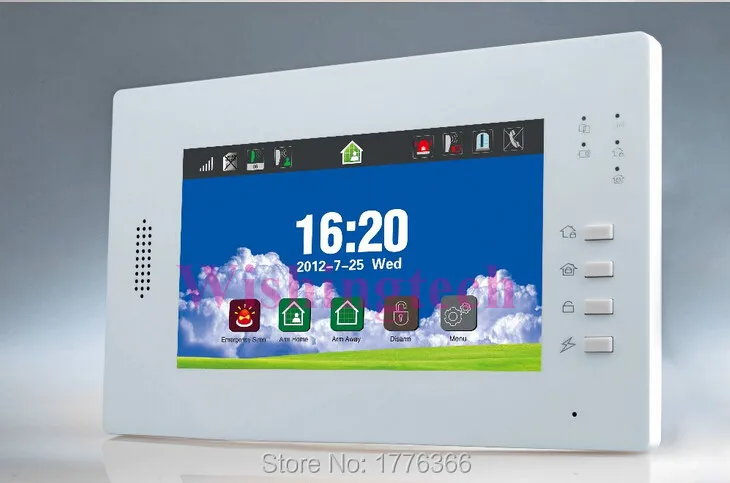

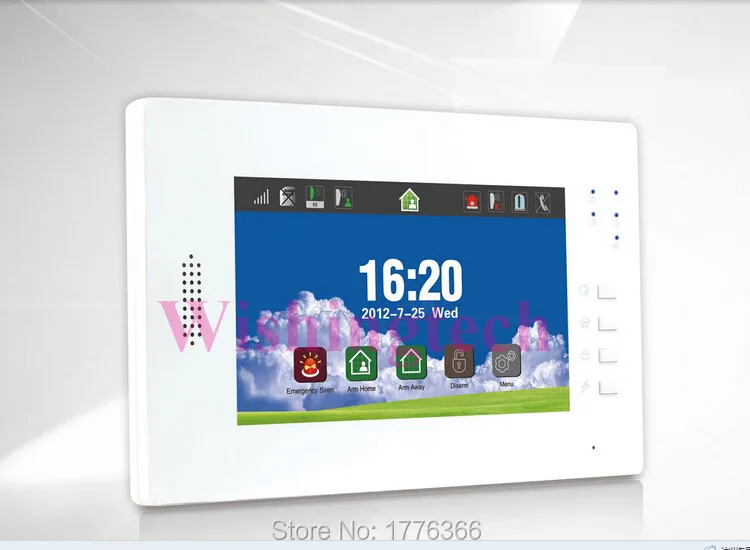

1) 7 inch touch screen,Friendly interface,detailed operate menu,color displays icons and words;

2) Calendar and clock function.

3) Multi-language:Up till October of 2014, it has the operate menu in 8 languages:English/German/Italian/Dutch/French/Czech/Finnish/Chinese for option.

Only alarm panel is only in one language, users can not change freely.

But the user manual is in daily English which is easily understood.

4) Multi-version(differentiate in network and defense zones):

Pure GSM version:31 wireless zones (each zone supports max 4 wireless sensors),8 wired zones(optional).The original version has no 8 wired zones, if you need,please

 leave massage when order.

Dual-network version with GSM+PSTN(telephone landline):31 wireless zones (each zone supports max 4 wireless sensors) and 2 wired zones.

Pure PSTN version:31 wireless zones (each zone supports max 4 wireless sensors) and 2 wired zones.

All three versions are compatible with wireless siren.

The default version is the pure GSM with 8 wired zones,and English menu.If you need other versions,please contact us or leave clear messages when order, or we will send

you the English version with 8 wired zones.

6) The version with GSM network has GSM 850/900/1800/1900MHz module,which is applied to all around the world. When with GSM function,alarm inform is transmitted in the

form of phone call, SMS;

7) In system can preset max 5 groups phone numbers, alarm call will be in first priority if a normal call is going; GSM module will send alarm info once the land-line cable is cut; Every group telephone number can be individually set to transfer alarm info by SMS or phone call;

8) Zone detection notification in disarm status, system can monitor the track of kids;

9) In system menu you can set Pass By ON/OFF, zone type, Entry Delay ON/OFF for each zone;

10) Smart-logical analysis technology, zone name, installation position and sensor name will be displayed when system alarms;

11) Learn sensors into alarm host by friendly interface;

12) System has non-volatile chip, information will be stored automatically if power is off;

13) Optional smart functions, including check door\window status or voltage status automatically,low voltage of host or sensor alarm, uploads low voltage status to CMS(Central

Monitoring Station);

14) Support optional wireless “ding-dong” doorbell;

15) Alarm system can be armed/disarmed by phone call, or SMS, or wireless remote controller, or host keypad, or wireless operation keypad

16) System works with AC\DC power supply and built-in high energy lithium battery, system will give notification when low voltage, landline is cut and low power supply happen;

17) "Black Box" functions, system can store max 99 alarm records and 100 operation records;

18) Host is compatible with Contact ID protocol, suitable to build CMS;

19)  Rechargeable lithium battery: 7.4v1200mAH

20) Optional extended function:

   Support IP cameras: we manufacturer can add the module to support IP cameras if customers need.(need some surcharge)

 Can build the home appliances control system: we have the Smart Power Plug(switch) to match with this alarm host, users can turn on/off the household appliances and

lights when using the Smart Power Plug. If you need it,please contact us.

More other smart function will be improved and replenished.

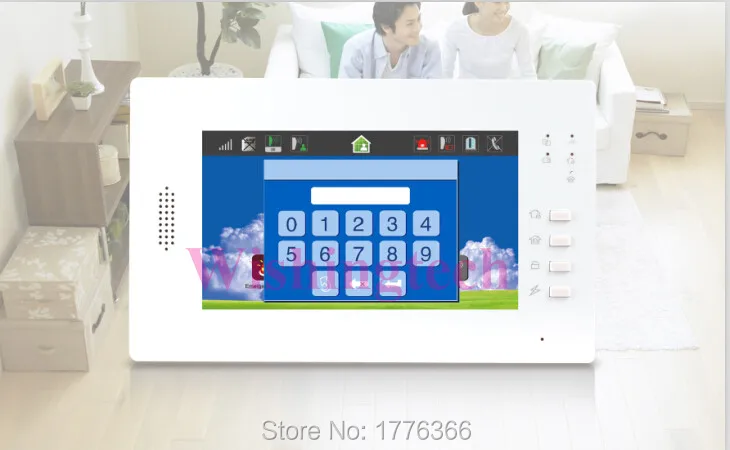

                                          7 inch touch screen alarm system menu

                                                           (Here is the default version in English language)

Technical Parameters

                                                                    Some common accessories

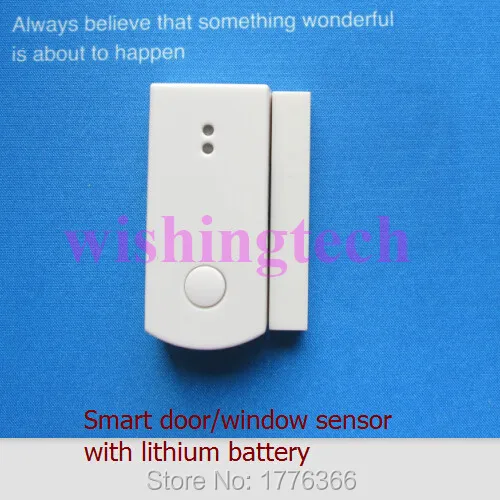

door/window sensor

Specifications

1. Power supply: rechargeable lithium battery 3.7v200mAH
2. Wireless frequency: 433MHz or 868MHz
3. Emitting distance: ≥100m (in open area)
4. Service life of lithium battery: ≤3 year (rechargeable)
5. Alarm distance: <4cm
6. Static current: 15μA   working current: 15mA

• Wireless wide range PIR detector

Feature

1. Artistic design;
2. Microcomputer intelligent control, anti-electromagnetic interference, anti white light inference;
3. Tamper alarm (Send signal to alarm host and activate alarm);
4. High capacity rechargeable Li-ion battery, long service life, with USB charging port;
5. Mainly monitor and control indoor stereoscopic spaces, generally set as Motion Zone.

Specifications

1. Power supply: disposable battery/rechargeable lithium battery 3.7v800mAH
2. Emitting distance: ≥100m (in open area)
3. Service life of disposable battery ≤1 year, of lithium battery ≤3 years
4. Detecting distance: 110°, 10m*10m
5. Wireless frequency: 433MHz or 868MHz
6. Static current: 50uA working current: 15mA

• Wireless Indoor Siren

Features

1. Works with alarm host, receives wireless alarm signals from alarm host; spot alarm with sound and flash;
2. Usually for indoor use.
3. Power supply type is optional, with disposable battery type, or with rechargeable lithium battery type;
4. Maximum alarm time 3 minutes;
5. Color: Blue/ Red  (optional)

Specifications

1. Power supply: 100VAC~240VAC+rechargeable lithium battery 3.7v800mAH or 100VAC~240VAC;
2. Receiving distance: ≥100 M(In open area);
3. Service life of lithium battery ≤3 years;
4. Static current: <15mA   working current: <200mA;
5. Wireless frequency: 433MHz or 868MHz;
6. Charging time: ≤12H;
7. Product size: 105mm*65mm*35mm;

• Wireless Smoke sensor

Features:

1.  Smart design,beautiful artist and easy installing.

2.  Intellectual single chip process and steady and credible self-testing.

3.  photo-sonic alarming and restore automatically

4.  Connection pole design,convenience,fastness and shortcut

5.  suited to use it solely or fit on the wireless electroplate module to use with the wireless control system

Specification:

• Power: 9V battery
• Static Current: <20 uA
• Alarm Current: <25mA
• Alarm output: photo-sonic alarm
• Alarm volume: ≥95db
• Operated temperature: -10 to 45°c
• Operated humidity:<97%
• Size: R=5.25(cm)
• H=3.2(cm)

• wireless LED password keypad

Frequency:433MHZ / 868MHZ for optional

Firmly built with exquisite appearance design

LED displays, intelligent microcomputer chip controls, stable and reliable performance

Work with wireless alarm host to Arm/Arm away/Disarm system by code

Non-volatile chip, info will be stored automatically when power is off

Power Adapter

Kindly Remind:

1)Due to limited space,we can not upload all detailed specifications for all accessories here, if you need,

please contact us.

2)We accept customized orders based on your requirements.

If order online here,we can make up the picture with all products you need,then build the link for you to purchase conveniently,or you can pay via other terms.

3)Wholesales and Retail orders are acceptable. It is our pleasure to build a long-term business relationship with you. We will try best to offer the competitive price for your resell business! Please feel free to contact us at anytime.
