1.6~25 m3/h Flow Range DN32 Diameter and 4~20 mA +Pulse Output Electromagnetic Flowmeters | Инструменты
История изменения цены
*Текущая стоимость US $654.61 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 778.52 руб. | 817.9 руб. | 797.5 руб. |
| Aug-16-2025 | 772.47 руб. | 811.43 руб. | 791.5 руб. |
| Jul-16-2025 | 647.79 руб. | 679.69 руб. | 663 руб. |
| Jun-16-2025 | 759.39 руб. | 797.25 руб. | 778 руб. |
| May-16-2025 | 661.87 руб. | 694.99 руб. | 677.5 руб. |
| Apr-16-2025 | 746.35 руб. | 783.24 руб. | 764.5 руб. |
| Mar-16-2025 | 739.78 руб. | 776.34 руб. | 757.5 руб. |
| Feb-16-2025 | 732.2 руб. | 769.88 руб. | 750.5 руб. |
| Jan-16-2025 | 726.17 руб. | 762.20 руб. | 744 руб. |
Описание товара

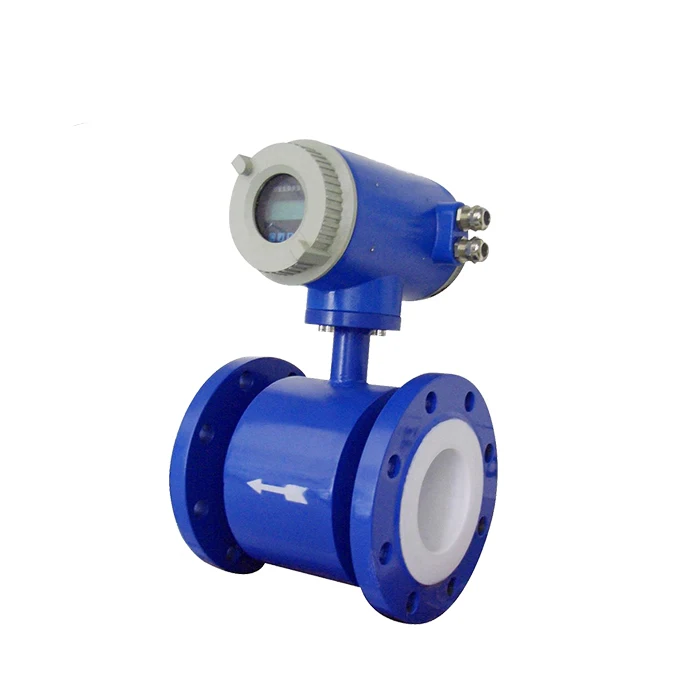

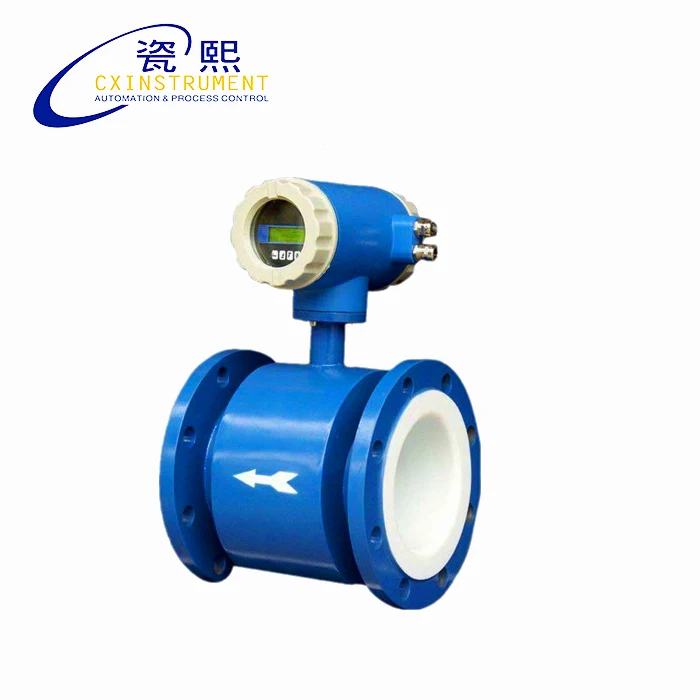

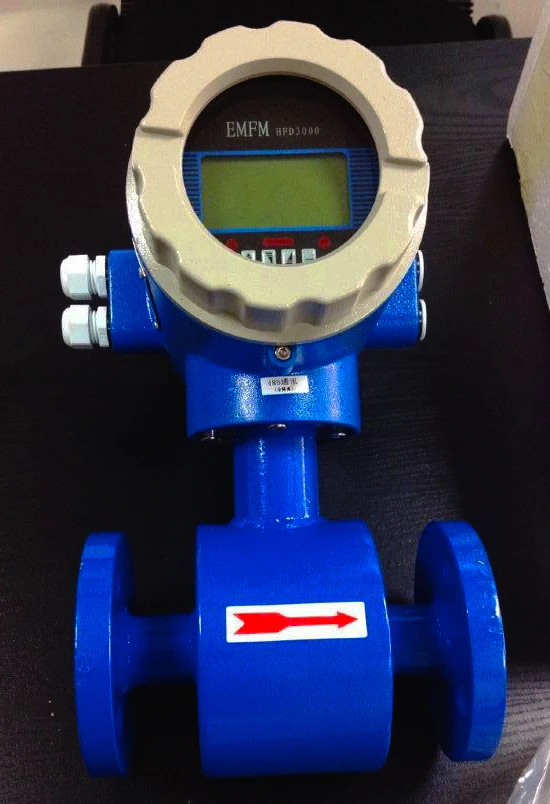

DN25 4~20mA 1~16 m3/h Carton Steel Material Electromagnetic Flowmeters
Electromagnetic flowmeters for Water can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and waste water, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry.
Working Principle
The measuring principle of Electromagnetic flowmeters for water is based on the electromagnetic induction law of Farady. The sensor is mainly composed of measuring tube with isolate lining, a pair of electrodes installed by penetration of the measuring tube wall, a pair of coils and iron core to produce working magnetic field. When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.
Techanical Parameters
| Model | CX-ELFM |
| Medium | water |
| Size | DN32 |
| Accuracy | 0.5% |
| Flow Range | 1.6~25 m3/H |
| Body material | Carton steel |
| Lining material | Rubber |
| Electrode material | Stainless steel material |
| Output | 4~20mA and pulse output |
| Pressure | 4.0Mpa |
| Power supply | 24V,220V,110V |
| Protection class | IP65 |
| Connection type | The flange type |
0.
Features
1. Measurement is not affected by the variation of flow density, viscosity, temperature, pressure and conductivity. High accuracy measurement is guaranteed according to the linear measurement principle.
2. No obstacle in the pipe, no pressure-loss and lower requirement for straight pipeline.
3. DN 6 to DN2000 covers a wide range of pipe size. A variety of liners and electrodes are available to satisfy different flow characteristic.
4. Programmable low frequency square wave field excitation, improving measurement stability and reducing power consumption.
5. Implementing 16 bits MCU, providing high integration and accuracy; Full-digital processing, high noise resistance and reliable measurement; Flow measurement range up to 1500:1.
6. High definition LCD display with backlight.
7. RS485 or RS232 interface supports digital communication.
8. Intelligent empty pipe detection and electrodes resistance measurement diagnosing empty pipe and electrodes contamination accurately.
9. SMD component and surface mount technology (SMT) are implemented to improve the reliability.
10.Longer working life and warranty period.
11. The flow meter with many material such as the Carton steel and stainless steel for you referance.
12.The lining material with PTFE and Rubber optional.
