Mini Peristaltic Pump Head Oem Good Perisatltic With The Best Price | Обустройство дома
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 0.38 руб. | 0.81 руб. | 0 руб. |
| Aug-16-2025 | 0.33 руб. | 0.40 руб. | 0 руб. |
| Jul-16-2025 | 0.93 руб. | 0.43 руб. | 0 руб. |
| Jun-16-2025 | 0.37 руб. | 0.78 руб. | 0 руб. |
| May-16-2025 | 0.76 руб. | 0.58 руб. | 0 руб. |
| Apr-16-2025 | 0.96 руб. | 0.80 руб. | 0 руб. |
| Mar-16-2025 | 0.2 руб. | 0.3 руб. | 0 руб. |
| Feb-16-2025 | 0.3 руб. | 0.70 руб. | 0 руб. |
| Jan-16-2025 | 0.35 руб. | 0.50 руб. | 0 руб. |
Описание товара

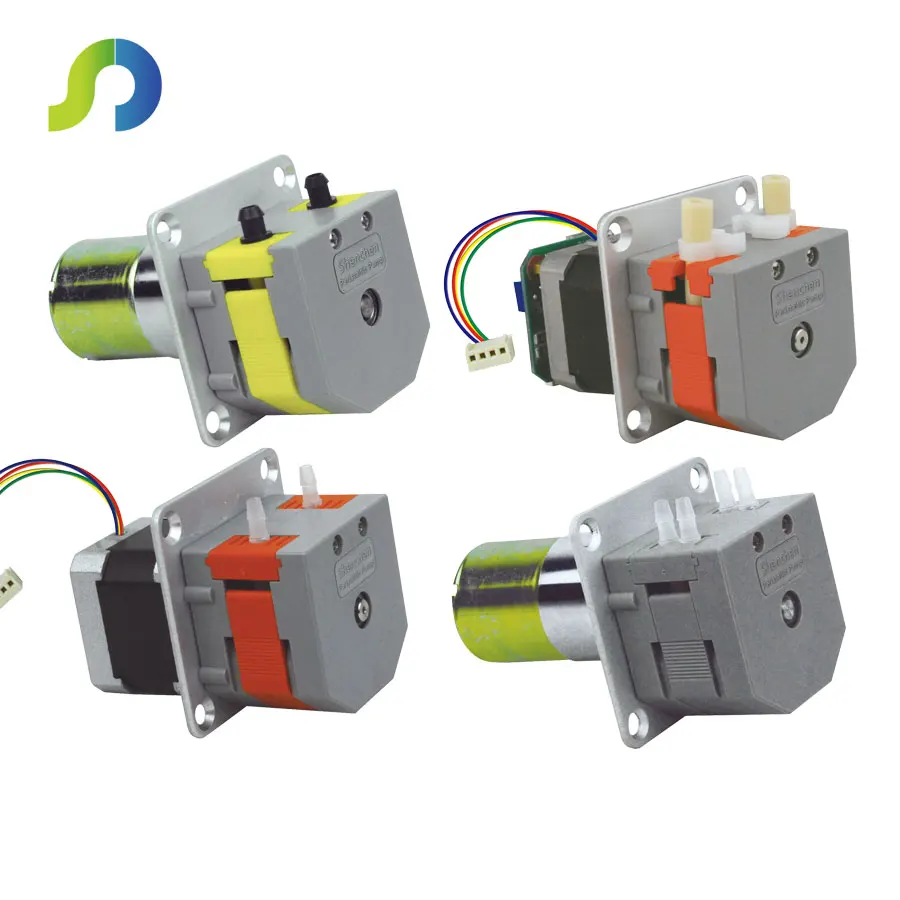

Model No：Minipump Category：Compact Peristaltic Pump FlowRate：0.0024-190mL/min NEW On Sale Product features Single and dual channel are optional. Pharmed BPT long-life tubing from French Saint-Gobain is installed in internal part of pump head. Applicable motors for Minipump are stepper motor,DC motor,AC motor and other models to drive with wide applications. Industry application Support biochemistry analytical instruments. Discharge condensate water in the flue gases survey meter. MiniPump series products which adapt compact and embedded design are more suitable for supporting a variety of instruments,flow rates are 0.024-190ml/min. Function and features
1.Attractive appearance,compact structure.
2.Easy to operate and economical cost.
3.Accept many kinds of motors to drive.
4.Supply several colors of appearance,ideal for supporting analytical instruments.
Specification
| Rotation speed (rpm) | Flow rates(mL/min)and tubing(1mm wall thickness,dual channel) | |||
| ID 1mm | ID 2mm | ID 2.5mm | ID 3mm | |
| 5 | 0.25 | 0.90 | 1.28 | 1.78 |
| 10 | 0.49 | 1.84 | 2.59 | 3.52 |
| 15 | 0.74 | 2.76 | 3.85 | 5.30 |
| 25 | 1.25 | 4.57 | 6.43 | 8.80 |
| 40 | 2.00 | 7.31 | 10.25 | 14.02 |
| 50 | 2.52 | 9.14 | 12.78 | 17.47 |
| 75 | 3.76 | 13.64 | 19.04 | 26.12 |
| 100 | 5.03 | 18.17 | 25.42 | 35.34 |
| 200 | 10.12 | 36.45 | 51.27 | 71.44 |
| 250 | 12.63 | 45.75 | 64.34 | 88.35 |
| 300 | 15.01 | 54.63 | 76.84 | 108.39 |
| Rotation speed(rpm) | Flow rates(mL/min)and tubing(1.6mm wall thickness,single channel) | |||
| 13#Tubing ID 0.8mm | 14#Tubing ID 1.6mm | 16#Tubing ID 3.1mm | 25#Tubing ID 4.8mm | |
| 5 | 0.12 | 0.56 | 1.97 | 3.26 |
| 10 | 0.26 | 1.15 | 3.90 | 6.41 |
| 15 | 0.39 | 1.74 | 5.80 | 9.52 |
| 25 | 0.66 | 2.88 | 9.59 | 15.74 |
| 40 | 1.08 | 4.59 | 15.29 | 25.15 |
| 50 | 1.34 | 5.69 | 18.96 | 31.14 |
| 75 | 2.00 | 8.54 | 28.36 | 46.55 |
| 100 | 2.73 | 11.37 | 37.66 | 61.98 |
| 200 | 5.46 | 22.76 | 76.02 | 124.14 |
| 250 | 6.81 | 28.40 | 95.08 | 153.63 |
| 300 | 8.28 | 33.88 | 114.31 | 190.00 |
MiniPump VS.TH Pump
1、TH series peristaltic pump widely used in analytical instrument,enviromental protection equipment and bio-fermenter.But it also exposed many problems,for example:the working circular arc will crack during working,roller abrasion fast ,the middle of the roller will be sunken after the period;the tubing can not bu stable fixed,it will be easy to move;the motor splindle appears circle phenomenon after working a period;the liquid interrupt or backflow during transferring.These problems will bring troubles.
2、MiniPump have improved the above problems,it is more easy to load tubing,the tubing chome with connector,do not move;long life rollers with good abrasion resistance,the middle of the roller will not be sunken after long time and high speed running.The pump use stepper motor drive,piggyback drive circuit,compact structure,set up the speed freely;mounting plate dimension can be same with the TH series pump,can be exchanged with it.
Dimension drawing(Diagram)
1. DC motor(24V、12V)Drive Minipump dimension
2. 42 stepper motor drive Minipump dimension
