Altera Cyclone Board EP3C16 EP3C16Q240C8N ALTERA Cyclone III FPGA Development Board +19 Accessory Module Kits Support JTAG

Overview

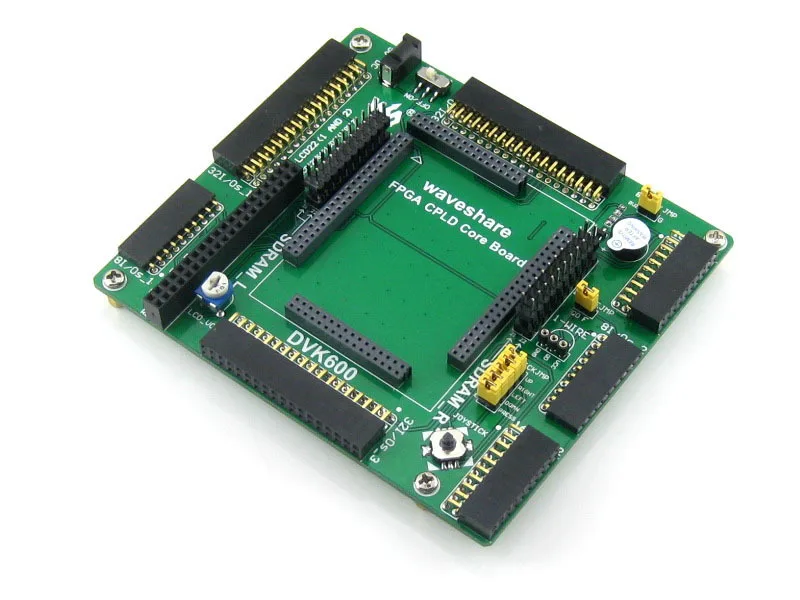

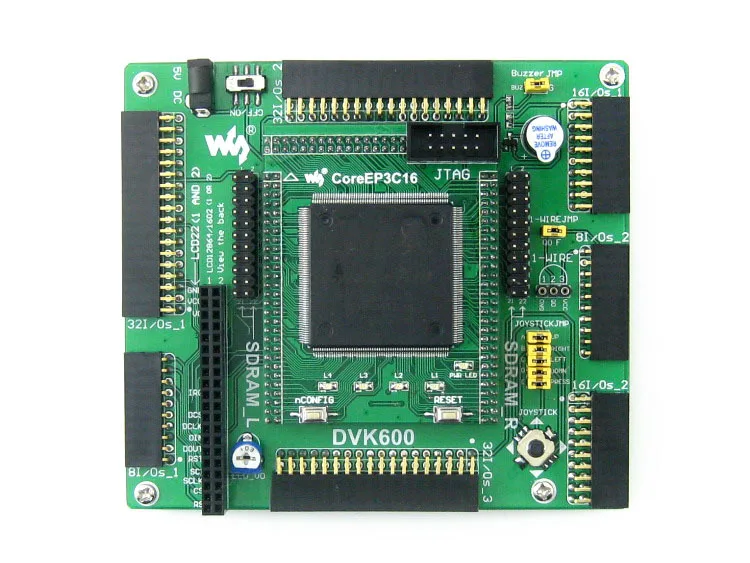

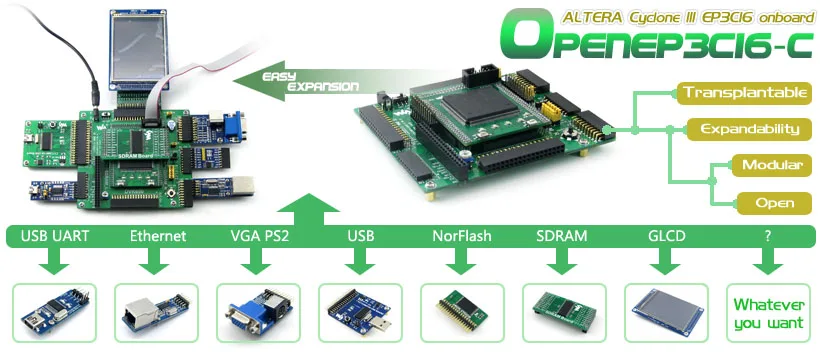

OpenEP3C16-C is an FPGA development board that consists of the mother board DVK600 and the FPGA core board CoreEP3C16.

OpenEP3C16-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with ALTERA Cyclone III series FPGA devices. OpenEP3C16-C enables you to start your design with the Nios II processor easily and quickly.

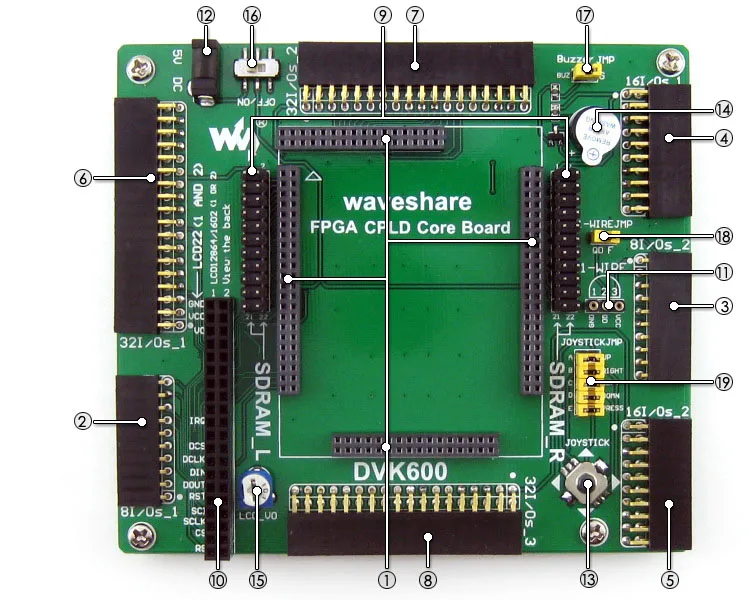

What's on the mother board

1. FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard
2. 8I/Os_1 interface, for connecting accessory boards/modules
3. 8I/Os_2 interface, for connecting accessory boards/modules
4. 16I/Os_1 interface, for connecting accessory boards/modules
5. 16I/Os_2 interface, for connecting accessory boards/modules
6. 32I/Os_1 interface, for connecting accessory boards/modules
7. 32I/Os_2 interface, for connecting accessory boards/modules
8. 32I/Os_3 interface, for connecting accessory boards/modules

All the I/O interfaces above:

• capable of being simulated as USART, I2C, SPI, PS/2, etc.
• capable of driving devices such as FRAM, FLASH, USB, Ethernet, etc.

1. SDRAM interface
   • for connecting SDRAM accessory board
   • also works as FPGA CPLD pins expansion connectors
2. LCD interface, for connecting LCD22, LCD12864, LCD1602
3. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
4. 5V DC jack
5. Joystick: five positions
6. Buzzer
7. Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment
8. Power switch
9. Buzzer jumper
10. ONE-WIRE jumper
11. Joystick jumper

For jumpers 17-19:

• short the jumper to connect to I/Os used in example code
• open the jumper to connect to other custom pins via jumper wires

The DVK600 supports a wide range of different core boards, therefore, some of the interfaces may be Not-Connected and useless while connecting to certain core board.

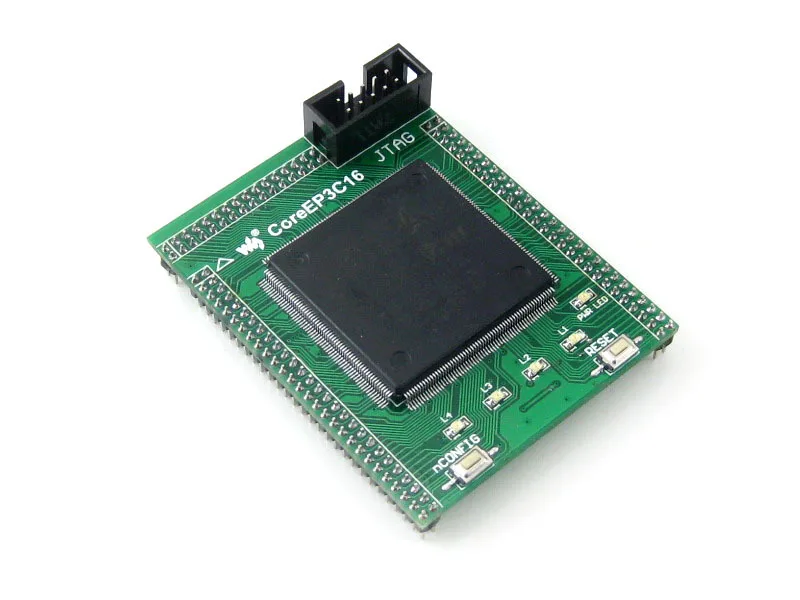

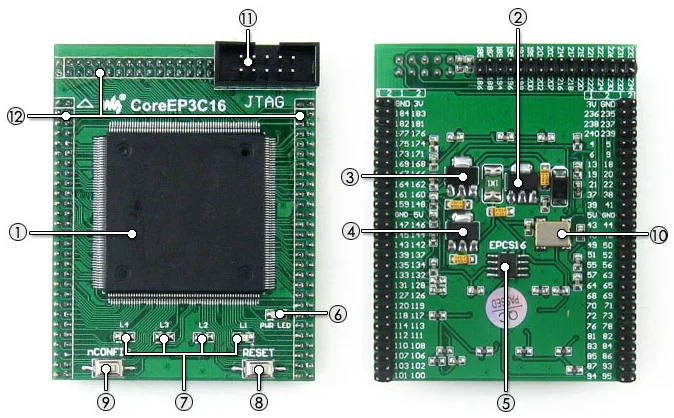

What's on the CoreEP3C16

1. EP3C16Q240C8N: the ALTERA Cyclone III FPGA device which features:
   • Operating Frequency: 50MHz
   • Operating Voltage: 1.15V~3.465V
   • Package: QFP240
   • I/Os: 136
   • LEs: 15408
   • RAM: 504kb
   • PLLs: 4
   • Debugging/Programming: supports JTAG
2. AMS1117-3.3, 3.3V voltage regulator
3. AMS1117-2.5, 2.5V voltage regulator
4. AMS1117-1.2, 1.2V voltage regulator
5. EPCS16, onboard serial FLASH memory, for storing code
6. Power indicator
7. LEDs
8. Reset button
9. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
10. 50M active crystal oscillator
11. JTAG interface: for debugging/programming
12. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion

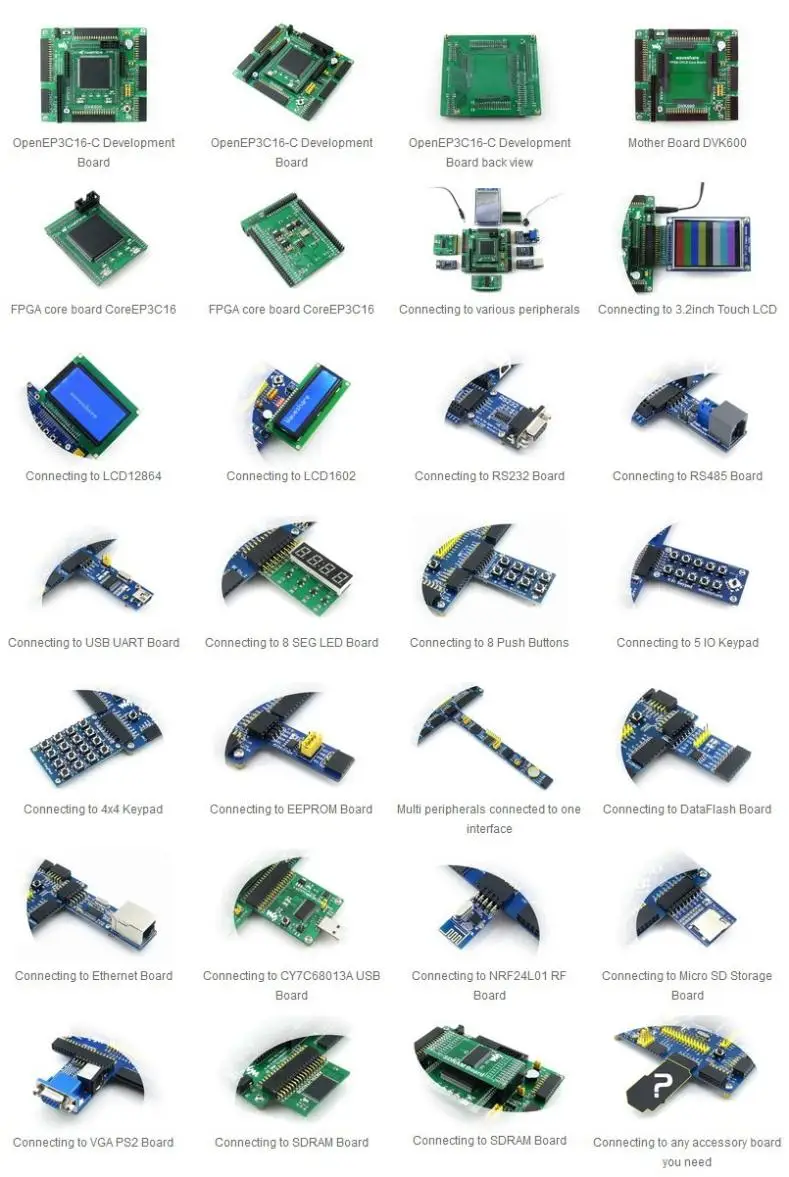

Photos

Note: The OpenEP3C16-C does NOT integrate any programming/debugging function, a programmer/debugger is required.

Examples

The OpenEP3C16-C FPGA development board comes with various examples codes for the supported peripherals, which give you a quick start to develop your own application.

Debugging/Programming Interface

The OpenEP3C16-C FPGA development board integrates JTAG interface for programming/debugging.

JTAG Signal Names & Description

JTAG Header Pinout

Development Resources

• Related Software (Quaters II, NIOS II etc.)
• Demo Code (Verilog, VHDL and NIOS II C)
• Schematic (PDF)
• FPGA Development Documentations (Datasheets etc.)

Wiki: www.waveshare.com/wiki/OpenEP3C16-C

Package Contains

Weight: 0.559 kg

Standard Package

1. OpenEP3C16-C development board x 1
2. 4-pin wire x 2
3. 2-pin wire x 2
4. USB power cable x 1

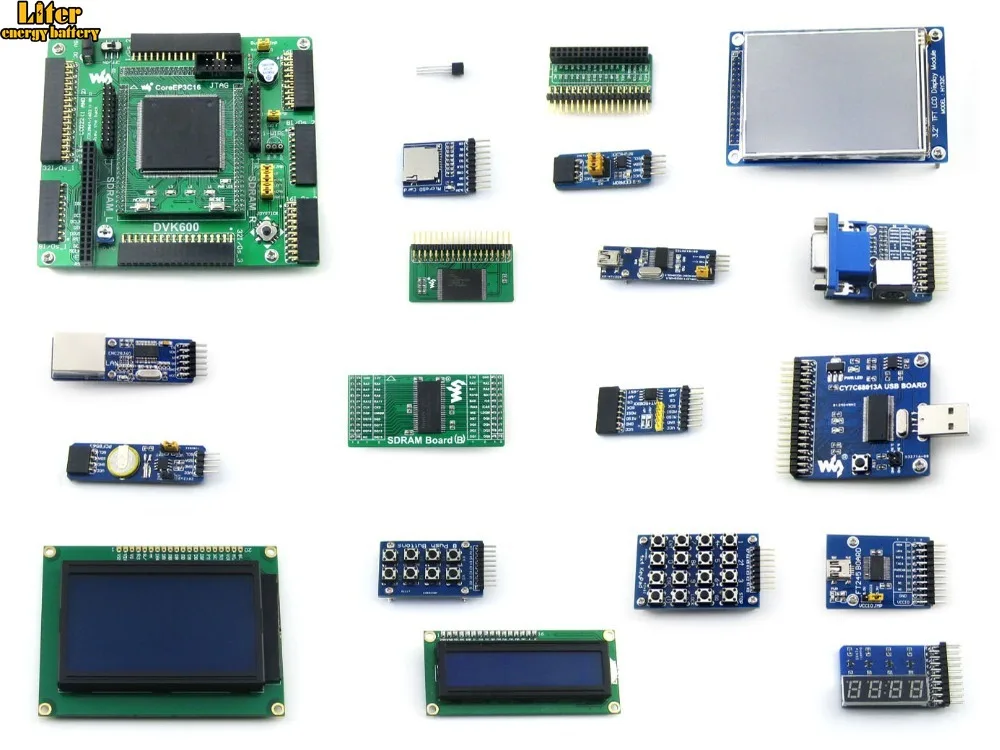

Accessory Boards Package

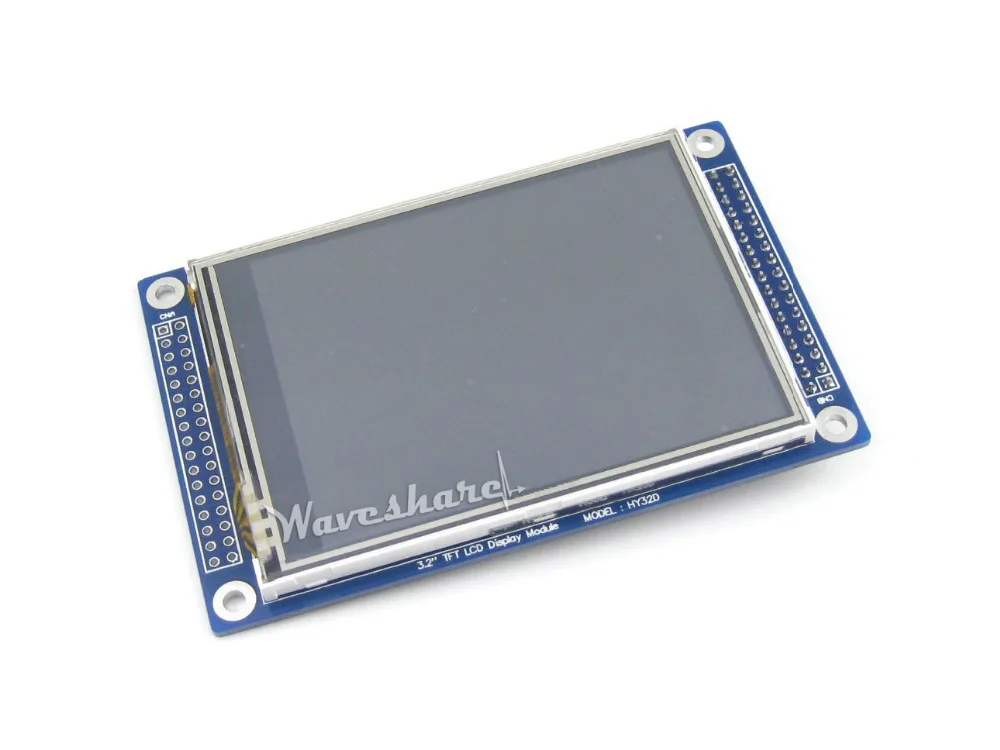

1. 3.2inch 320x240 Touch LCD x 1
2. 3.2inch LCD Adapter (B) x 1
3. VGA PS2 Board x 1
4. PL2303 USB UART Board (mini) x 1
5. NorFlash Board (B) x 1
6. SDRAM Board (B) x 1
7. Micro SD Storage Board x 1
8. AT45DBXX DataFlash Board x 1
9. FM24CLXX FRAM Board x 1
10. CY7C68013A USB Board (mini) x 1
11. ENC28J60 Ethernet Board x 1
12. PCF8563 RTC Board x 1
13. DS18B20 x 1

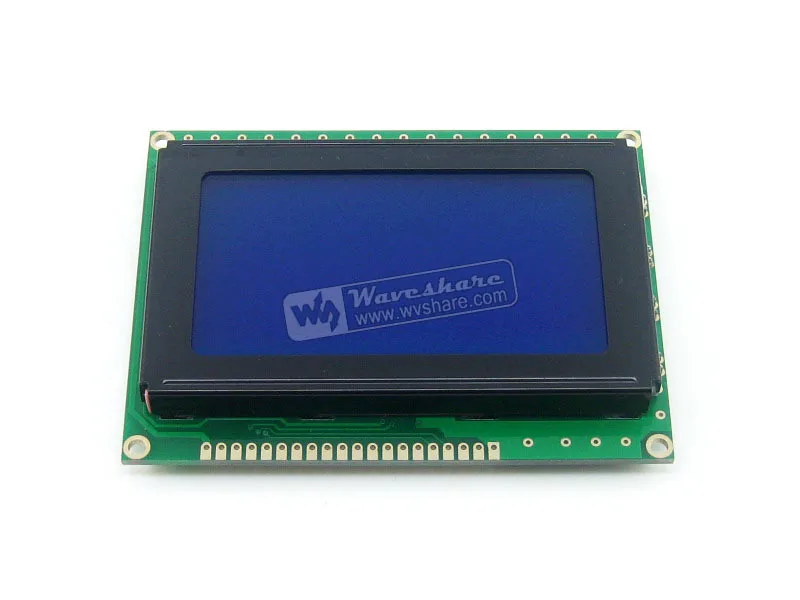

14. LCD12864 (3.3V Blue Backlight) x 1
15. LCD1602 (3.3V Blue Backlight) x 1
16. FT245 USB FIFO Board (mini) x 1
17. 8 SEG LED Board x 1
18. 8 Push Buttons x 1
19. 4x4 Keypad x 1
20. USB type A plug to mini-B plug cable x 1
