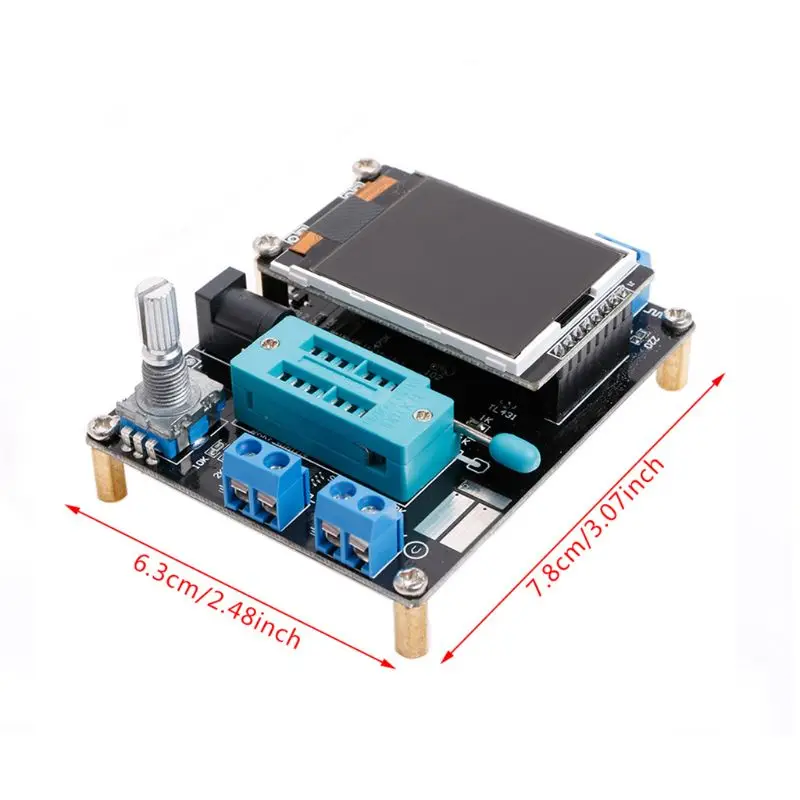

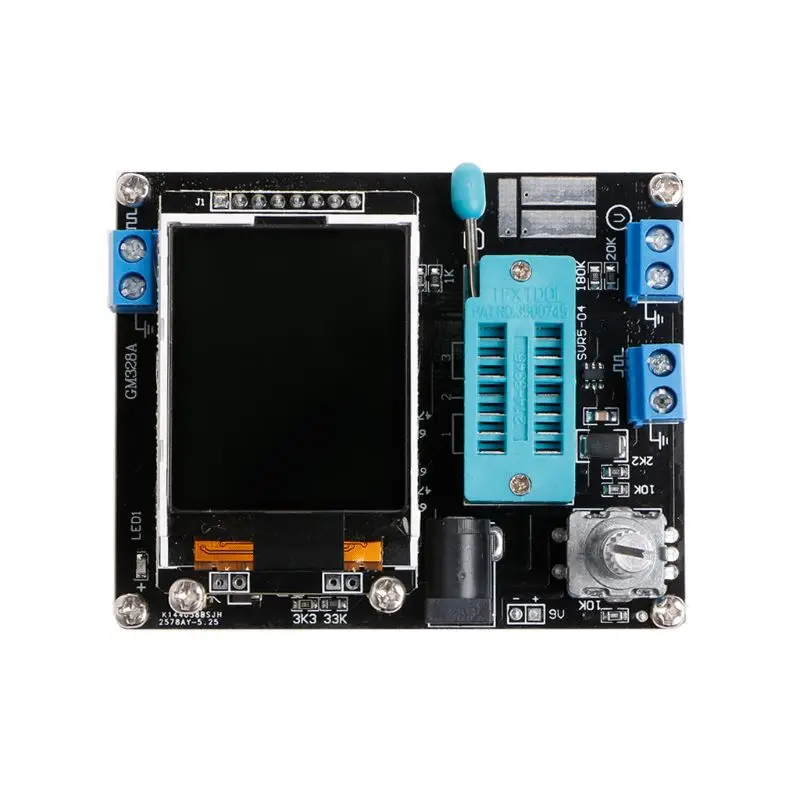

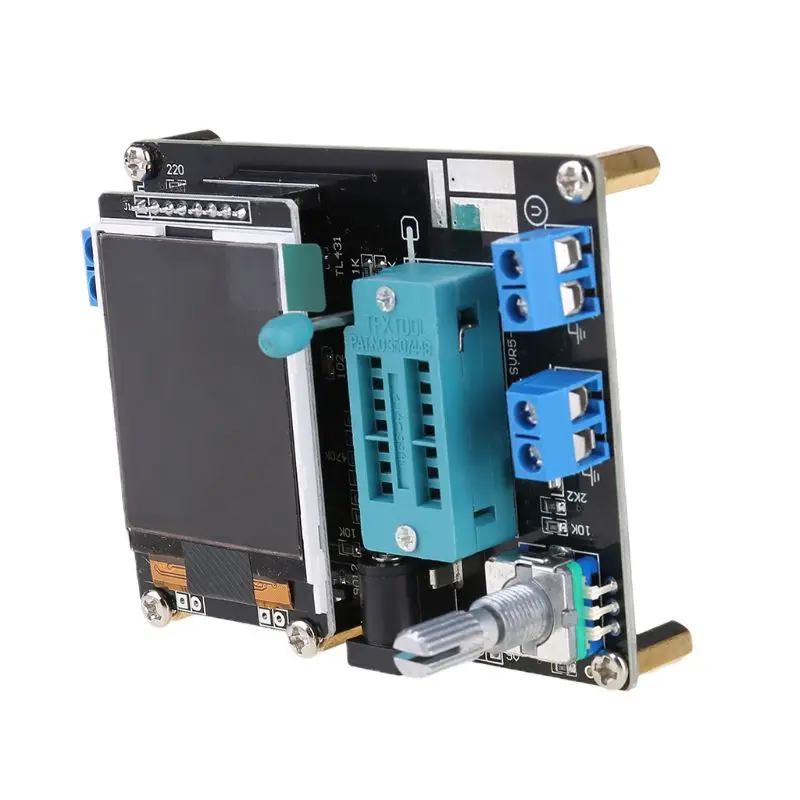

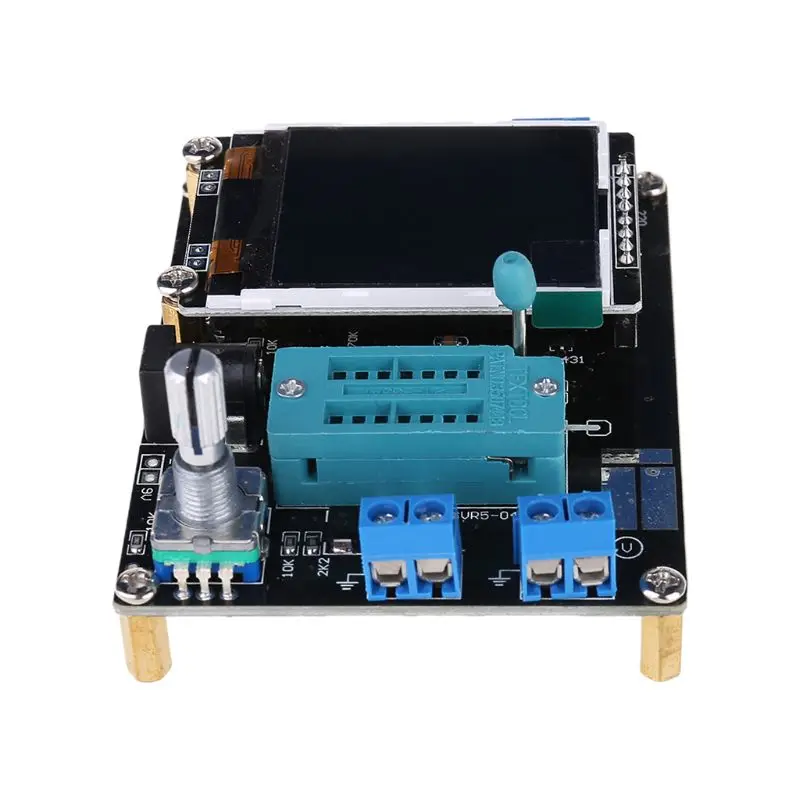

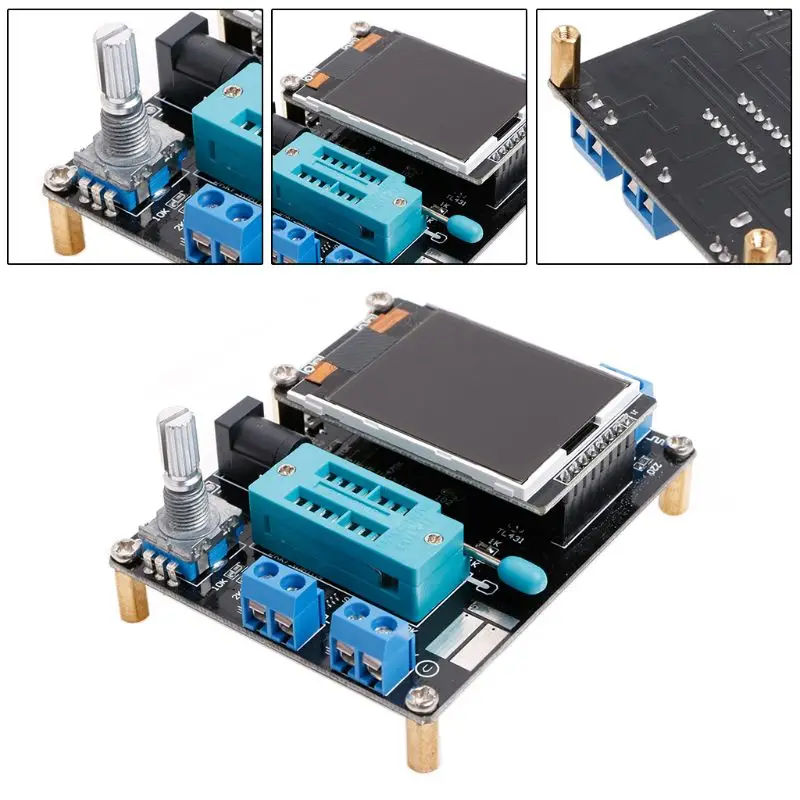

1Set GM328 Transistor Tester DIY Kit Diode Capacitance Voltage Meter with Shell New 2020 | Инструменты
История изменения цены
*Текущая стоимость 1 055,29 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-03-2026 | 1340.56 руб. | 1367.18 руб. | 1353.5 руб. |
| Feb-03-2026 | 1087.49 руб. | 1109.36 руб. | 1098 руб. |
| Jan-03-2026 | 1319.53 руб. | 1345.94 руб. | 1332 руб. |
| Dec-03-2025 | 1308.5 руб. | 1334.21 руб. | 1321 руб. |
| Nov-03-2025 | 1044.69 руб. | 1065.27 руб. | 1054.5 руб. |
| Oct-03-2025 | 1287.45 руб. | 1313.67 руб. | 1300 руб. |
| Sep-03-2025 | 1277.42 руб. | 1303.82 руб. | 1290 руб. |
| Aug-03-2025 | 1266.38 руб. | 1291.81 руб. | 1278.5 руб. |
Описание товара
OOTDTY100% brand new and high quality
Feature:

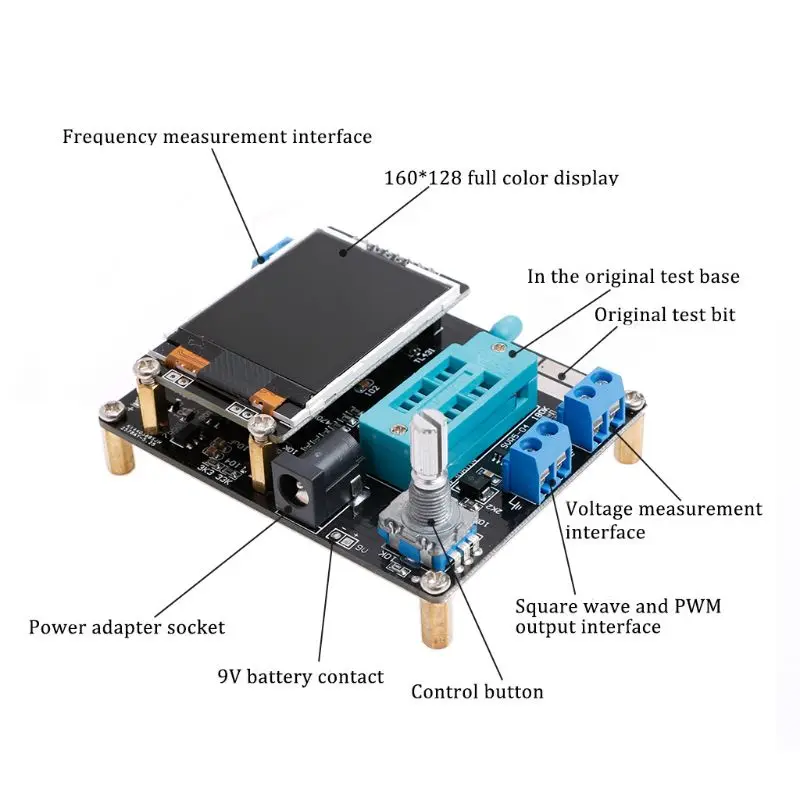

Multi-functional transistor tester for automatic detection of NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout. It also can be used as square signal and PWM signal generator.
Digital LCD display for easy readings, can display measured data and graphics.
Rotary switch control, a key measurement for convenient use.
Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip.
Use 9V battery(not included), can also use DC power(DC 6.8-12V).
Automatic shutdown, shutdown current is only about 20nA.
Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout.
Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current.
Support 2 resistors measurement, show its positive and negative, on-state voltage.
Resistance measurement maximum resolution 0.01Ω, can be measured up to 50MΩ.
Automatically test the pins of a component and show on the display.
Measure FET gate threshold voltage and gate capacitance.
For the following 2100Ω resistor while measuring its inductance measuring range from 0.01mH - 20H.
Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals.
Attention: Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
Specifications:
Item Type: Transistor Tester
Material: PC

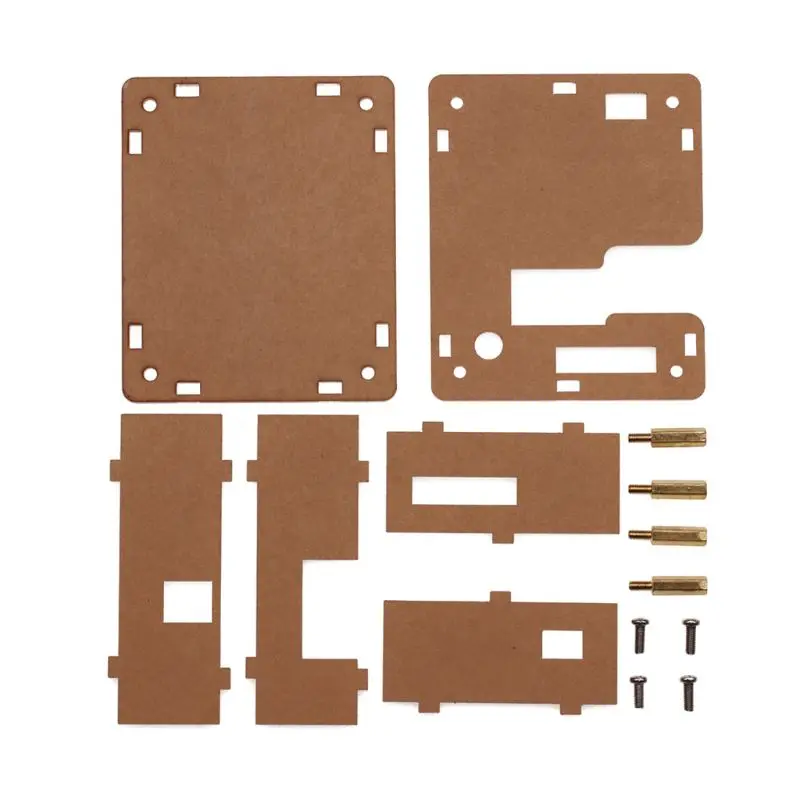

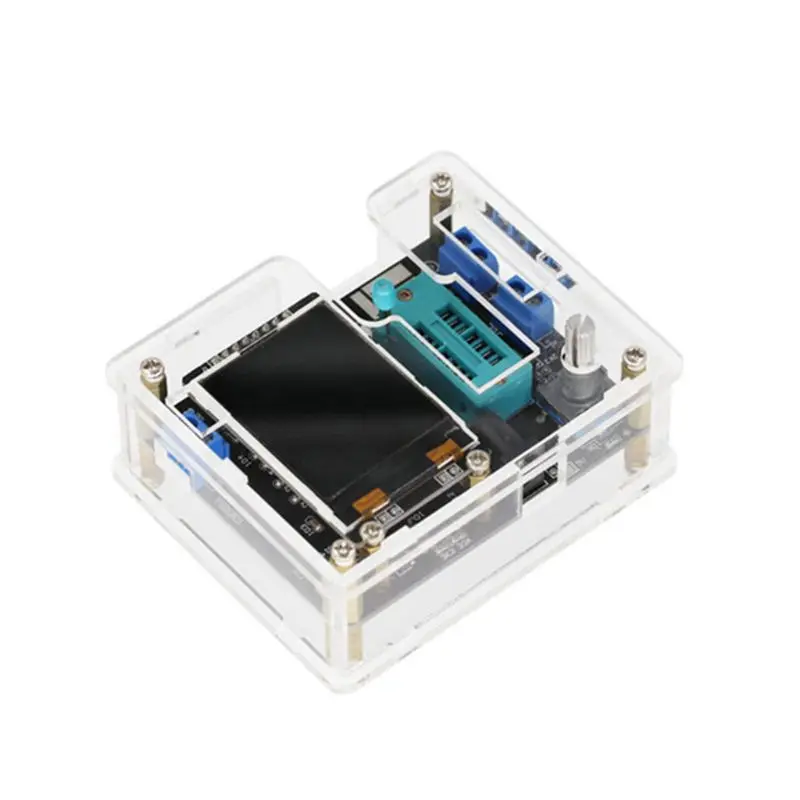

Size: outer shell: 90x78mm/3.5x3.07in
Color: As shown
Display: 160x128 LCD
Power Supply: 1x9V Battery(not included); DC 6.8-12V
Current: Approx. 30mA
Resistance Measurement: Max. 50MΩ
Resistance Resolution: 0.01Ω
Capacitance Measurement: 25pF-100mF
Capacitance Resolution: 1pF
DC Voltage Measurement: Up to 50V
Quantity: 1 Set
Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 Set x Transistor Tester
